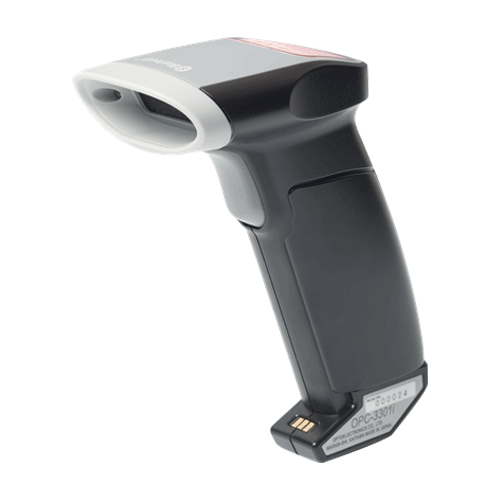

OPTICON OPC-3301i Linear Imager Bluetooth Cordless Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The OPC-3301i is a compact handheld CCD scanner using Bluetooth to communicate with other devices. This wireless device is equipped with an aggressive scan engine providing quick and easy scanning. In order to increase productivity, the OPC-3301i can read low-contrast barcodes, as well as high density (condensed) barcodes.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Low cost Cordless Handheld 1D Imager
  • Bluetooth ver. 2.1
  • Up to 10 m Range
  • Small form factor
  • up to 300 Scans/sec
  • Long operating time on battery charge
  • Ultra-lightweight, yet solid scanner withstands drops up to 1.5 meter onto concrete
NameSizeDownload
Brochure102kb opc-3301i_brochure.pdf
USB Drivers Installer2,398kb OPT_USB Drivers Installer.exe

Products available to purchase

 SKUVendorName
OPC3301BTB OPTICONC-3301i 1D Cordless Bluetooth Scanner Black
OPC3301BTBKIT OPTICONC-3301i 1D Cordless BT Scanner Kit Black
AD-OP6VR20 OPTICON6V 2500 mA with 1.7 x 4x 9.5 tip C+
OPCRD3201B OPTICONCharging cradle for OPI3301BT & OPC3301 Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
1202gVoyager 1202g Cordless Laser Scanner
IT3820IT-3820 Wireless Linear imager scanner
MS9535MS-9535 VoyagerBT ™ Bluetooth Cordless Laser Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
CCD linear image sensor
Light Source
Red LED 624 nm
Scan Pattern
Single Line
Scan Rate
300 scans/sec
Motion Tolerance
N/A
Image Capture
N/A
Capture Area
N/A
Contrast Ratio
N/A
Resolution
0.102 mm / 4 mils (Linear Barcodes)
Depth of field
Code 39:
5 mils - 5.5 to 7.5 cm
6 mils - 4.5 to 10.0 cm
10 mils - 3.5 to 17.5 cm
20 mils - 4.0 to 30.0 cm
30 mils - 6.0 to 50.0 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
+/- 25°
Pitch Angle
+/- 50°
Skew Angle
+/- 65°
Ambient Light Immunity
Fluorescent 10,000 Lux Max.
Direct Sun 100,000 Lux Max.
Symbologies supported
1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), GS1 DataBar Limited, GS1 DataBar Expanded, Code 11, IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSM-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic,UK/Plessey
Postal Code: Chinese Post, Korean Postal Authority code
Programming Method
Scan codes in Manual
Driver available
JavaPOS, OPOS Utilities
Indicators
Multi Colour LED (red/green/blue)
Buzzer
Operating Modes
Trigger
Communication Type
Bluetooth cordless
Communication Technology
Bluetooth Ver. 2.1 SPP/HID, output Class 2,
Range up to 10 m
1 to 1 Connection to Bluetooth enabled Device
Master/Slave mode
Authentication & encryption
Interfaces
N/A
Supply Voltage
6 VDC to Charging Base
Battery: Li-ion 1100mAh, Charge time on Charging base 3 Hrs at 6V
Operating Time: approx. 48 Hours at 1 Scan/5 Sec, Approx. 72 Hours Stand by
Power Consumption
15mA Standby, Max.200 mA
Drop Specification
Designed to withstand repeated 1.5m drops to concrete
Vibration Test 10-100Hz with 2G for 1 Hour
Environmental Sealing
IP42
ESD Protection
N/A
Operating Environment
0° ~ 50°C, Relative Humidity 20 - 85% none condensing
Storage Environment
-20° ~ 60°C, Relative Humidity 20 - 85% none condensing
EMC/Safety Standards
CE, FCC, VCCI, MFi, RoHS, IEC62471, IEC60950-1
External Dimensions (WxDxH)
Scanner: 113 x 56 x 132 mm
Weight
Scanner 127 g
Base 144 g
