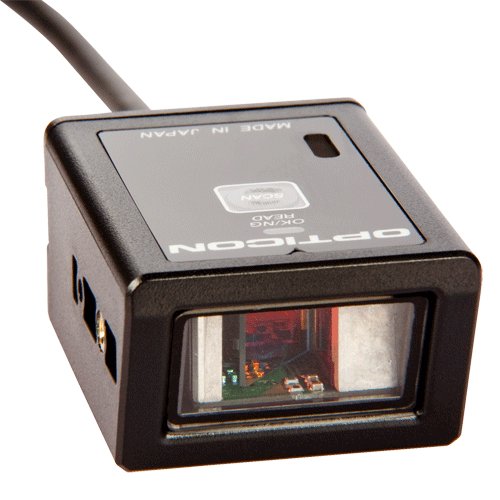

OPTICON NLV1001 OEM Laser Scanner USB HID

(Product may vary from image. Rely only on description for purchasing decisions.)
  • OPNLV1001-UHID
  • 11614
  • OPTICON
  • OPNLV1001
  • Login to view pricing and availability

Opticon NLV1001 Fixed Mount Laser Scanner USB HID

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • This reliable fixed position scanner employs an aggressive laser scan engine that reads at a rate of 100 scans per second.
  • The integrated auto-trigger mode enables hands-free operation.
  • The NLV1001 offers a wide variety of configurable options for easy integration in your business process.
  • The NLV1001 is equipped with a compact ABS housing with 2 different mounting options.
  • This stationary scanner is available with an RS232, USB (HID/VCP) and Keyboard Wedge interface, to fit any design and implementation requirement.
NameSizeDownload
Brochure827kb opnlv1001_brochure.pdf
Barcode Reference Manual554kb op_barcode_ref_manual.zip
USB Drivers Installer2,398kb OPT_USB Drivers Installer.exe

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
NLB1000OPTICON NLB-1000 Compact Fixed mount Laser Barcode Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
Laser
Light Source
650 nm visible laser diode
Scan Pattern
Single Line
Bi-Directional
Scan Rate
100 Scans/sec
Resolution
0.127 mm / 5 mil
Depth of field
40 - 500 mm (res. 1.0 mm / 39 mil),
20 - 350 mm (res. 0.5 mm / 20 mil)
20 - 200 mm (res. 0.25 mm / 10 mil)
20 - 100 mm (res. 0.15 mm / 6 mil)
30 - 70 mm (res. 0.127 mm / 5 mil)
at PCS 0.9, Code 39
Tilt Angle
-20 to 0°, 0 to +20°
Pitch Angle
-35 to 0°, 0 to +35°
Skew Angle
-50 to -8°, +8 to +50°
Ambient Light Immunity
Fluorescent 3,000 lux max, Direct Sun 50,000 lux
Symbologies supported
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Composite codes, MicroPDF 417, PDF417
Programming Method
Scan Barcodes from Manual
Indicators
1 LED (red/green/orange)
Operating Modes
Manual Trigger, Auto Trigger, Stand Detection
Communication Type
Cabled
Interfaces
RS232 - DB9 PTF connector with external power supply
Keyboard Wedge - MiniDIN6 F/M connector
USB - Ver. 1.1, HID/VCP, USB-A connector
Supply Voltage
5 V ± 10 % (Keyboard Wedge and USB), 6 V (min. 4.5, max. 6.5 V) (RS232)
Power Consumption
Max. 100 mA (typical use)
Drop Specification
1.5 m / 5 ft drop onto concrete surface
10 - 100 Hz with 2G for 1 hour
Environmental Sealing
IP42
Operating Environment
-5 to 50 °C
RH 5 - 95 % (non-condensing)
Storage Environment
-20 to 60 °C
RH 5 - 95 % (non-condensing)
EMC/Safety Standards
CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
External Dimensions (WxDxH)
Scanner 56 x 149 x 109 mm
Stand 146 x 106 x 295 mm
Weight
Scanner 80 g (excl. Cable)
Stand 385 g
