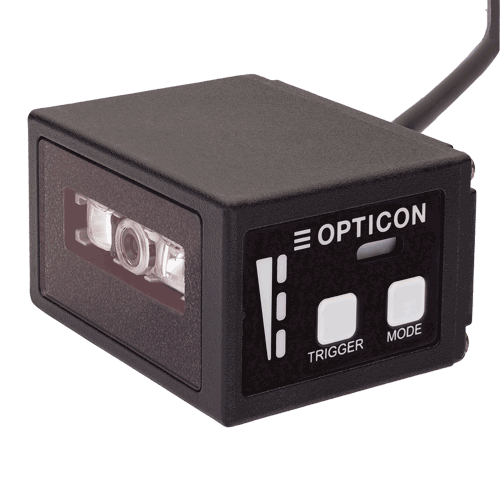

OPTICON NLV-5201 Fixed Mount 2D Imaging Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The NLV-5201 is our latest development in the NLV series. This small 2D Imager is easily integrated and scans at a fast speed. The fix position scanner is perfect for the most demanding applications and the scanner is also very resistant with an IP65 rating.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Full spectrum illuminated 2D CMOS imager
  • Ultra-fast 100 frames per second CMOS imager sensor enables high speeding scanning of 1D and 2D barcodes
  • Rapidly scans and decodes a wide variety of 1D or 2D barcodes
  • Fast global shutter technology with auto exposure – easily scan barcodes off a wide variety of surfaces
  • Custom configuration capabilities including multi-read
  • Exceptional motion tolerance for moving applications
  • Fixed mount 2D CMOS Imaging Scanner
  • Improved scanning of curved, wide and poorly printed barcodes
  • Green bar LED aim function providing laser-free aiming with no laser class warning
  • Complete unit with integrated decoder
  • IP65 rating against dust and moisture
  • Low power consumption provides design flexibility
  • Communication interface: USB or RS232
NameSizeDownload
Brochure92kb NLV5201_brochure.pdf
USB Driver2,398kb OPT_USB Drivers Installer.exe
Basic Setup Utility713kb OPT_Appload Setup.exe

Products available to purchase

 SKUVendorName
OPNLV5201-R OPTICONNLV-5201 Fixed 2D CMOS Imaging Scanner RS232

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
3310gVuquest 3310g Area Imager Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
CMOS area sensor
Scan Pattern
Area Imager (640 x 480 pixel array)
Motion Tolerance
N/A
Scan Angle
Horizontal 38°, Vertical 28.9°
Contrast Ratio
20% Minimum reflective difference
Pitch Angle
-65 to 0°, 0 to +65°
Skew Angle
-65 to 0°, 0 to +65°
Resolution
Min. Resolution at pcs 0.9:
0.1 mm / 3.94 mil for 1D Codes
0.169 mm / 6.6 mil for 2D Codes & Stacked Codes
Min pcs value 0.3
Depth of field
at Code 39
53 - 126 mm res. 0.127 mm / 5 mil
52 - 237 mm res. 0.254 mm / 10 mil
69 - 433 mm res. 0.508 mm / 20 mil
at QR Code
60 - 111 mm res. 0.169 mm / 6.7mil
22 - 250 mm res. 0.381 mm / 15 mil
Performance may be impacted by Bar code quality and environmental conditions
Ambient Light Immunity
Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max
Indicators
Visual: 1 LED (green/blue/orange)
Non-visual: Buzzer
Interfaces
USB HID & RS232
Symbologies supported
1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey, USPS
Postal Code: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET
2D Code: Aztec Code, Aztec Runes, Chinese Sensible Code, Codablock F, Composite Codes, Data Matrix, (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code, Passport MRZ (OCR-A, OCR-B)
Supply Voltage
5V ± 10%
Power Consumption
Max. 265 mA, Standby current 40 mA
Operating Environment
0° ~ 50°C, Relative Humidity up tp 20-85% none condensing
Storage Environment
-20° ~ 60°C, Relative Humidity up tp 20-90% none condensing
Drop Specification
Designed to withstand 0.75M drops to concrete
Vibration test 10-100Hz with 2G for 60 Minutes per cycle in each X, Y & Z Direction
Environmental Sealing
IP65
ESD Protection
6 kV Contact Discharge
15 kV Air discharge (Non-destructive)
External Dimensions (WxDxH)
41.1 x 33 x 24 mm
Weight
125 g excluding Cable
Product Compliance
CE, FCC Class B, VCCI Class B, RoHS, IEC 62471, EN55032 Class B, EN55024 Class B
