OPTICON NLV-4000 Fixed mount CCD Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

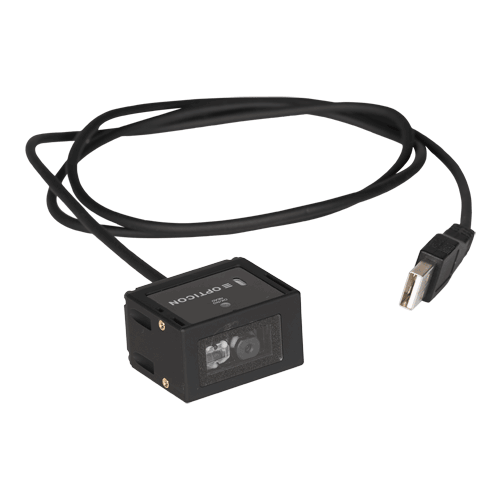

The NLV-4001 is our latest development in the NLV series. This small 1D CCD scanner is easily integrated and scans at a fast speed. The fix position scanner is perfect for the most demanding applications and the scanner is also very resistant with an IP65 rating.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • 1D CCD Stationery Scanner
  • 300 scans per second
  • Smallest in the NLV-series
  • USB HID/VCP or RS-232
  • Rugged; IP 65
NameSizeDownload
Brochure100kb nlv4001_brochure.pdf
USB Driver2,398kb OPT_USB Drivers Installer.exe
Basic Setup Utility713kb OPT_Appload Setup.exe

Products available to purchase

 SKUVendorName
OPNLV4001-U OPTICONNLV-4001 Fixed Position CCD Scanner USB

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
CCD Linear
Light Source
624 nm visible red LED
Scan Pattern
Single Line
Scan Rate
up to300 Scans/sec
Resolution
0.127 mm / 5 mil min.
Depth of field
80 - 700 mm (res. 1.0 mm / 39 mil),
55 - 400 mm (res. 0.5 mm / 20 mil)
60 - 170 mm (res. 0.127 mm / 5 mil)
at PCS 0.9, Code 39
Tilt Angle
-25 to 0°, 0 to +25°
Pitch Angle
-45 to 0°, 0 to +45°
Skew Angle
-65 to -8°, +8 to +65°
Ambient Light Immunity
00,000 lux max.
Symbologies supported
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal Codes: Chinese Post, Korean Postal Authority code
Programming Method
Scan Barcodes from Manual
Indicators
1 LED (red/green/orange)
Buzzer
Operating Modes
Single Read, multiple read, auto-trigger
Serial software trigger
Communication Type
Cabled
Interfaces
RS232 - DB9 connector with external power supply
USB - HID/VCP, USB-A connector
Supply Voltage
5 V ± 10 % (Keyboard Wedge and USB), 6 V (min. 4.5, max. 6.5 V) (RS232)
Power Consumption
Max. 180 mA (typical use), standby current 50mA
Drop Specification
0.75 m / 2.5 ft drop onto concrete surface
Environmental Sealing
IP65
Operating Environment
-5 to 50 °C
RH 10 - 90 % (non-condensing)
Storage Environment
-20 to 60 °C
RH 5 - 95 % (non-condensing)
EMC/Safety Standards
CE, FCC, VCCI, RoHS, IEC 62471, EN55022, EN55024, FCC Part 15 Subpart B Class B, EN61000-6-1
External Dimensions (WxDxH)
Scanner 41.1 x 33 x 24 mm
Weight
Scanner 55 g (incl. USB Cable)
