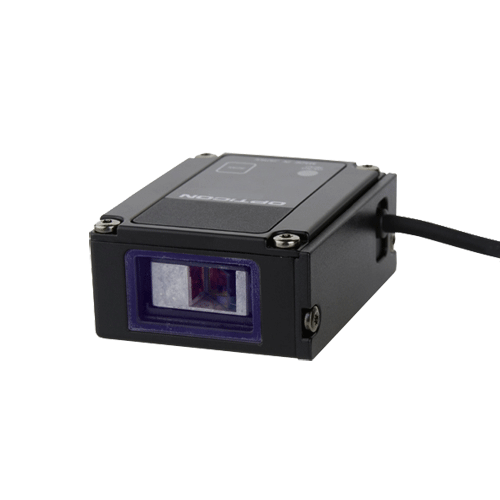

OPTICON NLV-2001 Compact OEM Laser Barcode Scanner *** Obsolete ***

(Product may vary from image. Rely only on description for purchasing decisions.)

The NLV2001 is a fixed mount laser scanner. This compact and rugged device makes 100 scans per second. It even fits in limited space. The NLV2001 with metal case guarantees an IP rate of 67.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • The advanced laser scan engine used in the NLV2001 offers reliable and improved scanning of all 1D codes including poorly printed and low quality symbols.
  • The embedded feature of scanning barcodes twice reduces discrepancies and ensures data accuracy, even if the barcode is oriented in reverse.
  • In addition to the standard software and manual trigger options, the NLV2001 is equipped with an auto-trigger function.
  • The Opticon proprietary scan-engine technology enables quick and accurate results.
  • The mounting holes on two sides of the housing maximize flexibility and the availability of several interfaces (RS232, USB HID/VCP and Keyboard Wedge) provides easy connectivity.
NameSizeDownload
Brochure793kb opnlv2001_brochure.pdf
Barcode Reference Manual554kb op_barcode_ref_manual.zip
USB Drivers Installer2,398kb OPT_USB Drivers Installer.exe

Products available to purchase

 SKUVendorName
AD5VR10P1.7 GOODSONPlug Pack for FBCXXX Scanners

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Laser
Light Source
650 nm visible laser diode
Scan Pattern
Single Line
Bi-Directional
Scan Rate
100 Scans/sec
Resolution
0.127 mm / 5 mil
Depth of field
40 - 500 mm (res. 1.0 mm / 39 mil),
20 - 350 mm (res. 0.5 mm / 20 mil)
20 - 200 mm (res. 0.25 mm / 10 mil)
20 - 100 mm (res. 0.15 mm / 6 mil)
30 - 70 mm (res. 0.127 mm / 5 mil)
at PCS 0.9, Code 39
Tilt Angle
-20 to 0°, 0 to +20°
Pitch Angle
-35 to 0°, 0 to +35°
Skew Angle
-50 to -8°, +8 to +50°
Ambient Light Immunity
Fluorescent 3,000 lux max, Direct Sun 50,000 lux
Symbologies supported
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Composite codes, MicroPDF 417, PDF417
Programming Method
Scan Barcodes from Manual
Indicators
1 LED (red/green/orange)
Operating Modes
Manual Trigger, Auto Trigger, Stand Detection
Communication Type
Cabled
Interfaces
RS232 - DB9 PTF connector with external power supply
Keyboard Wedge - MiniDIN6 F/M connector
USB - Ver. 1.1, HID/VCP, USB-A connector
Supply Voltage
5 V ± 10 % (Keyboard Wedge and USB), 6 V (min. 4.5, max. 6.5 V) (RS232)
Power Consumption
Max. 100 mA (typical use)
Drop Specification
1.5 m / 5 ft drop onto concrete surface
10 - 100 Hz with 2G for 1 hour
Environmental Sealing
IP42
Operating Environment
-5 to 50 °C
RH 5 - 95 % (non-condensing)
Storage Environment
-20 to 60 °C
RH 5 - 95 % (non-condensing)
EMC/Safety Standards
CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
External Dimensions (WxDxH)
Scanner 56 x 149 x 109 mm
Stand 146 x 106 x 295 mm
Weight
Scanner 80 g (excl. Cable)
Stand 385 g
