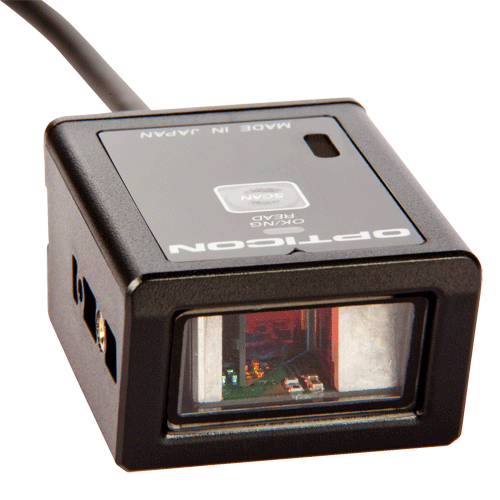

OPTICON NLV-1000 Compact OEM Laser Barcode Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The NLV1001 is designed to be an easily integrated fixed position scanner. This compact yet rugged scanner is ideal for applications that require a high performance, aggressive laser scanner with the ability to fit into small places.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • This reliable fixed position scanner employs an aggressive laser scan engine that reads at a rate of 100 scans per second.
  • The integrated auto-trigger mode enables hands-free operation.
  • The NLV1001 offers a wide variety of configurable options for easy integration in your business process.
  • The NLV1001 is equipped with a compact ABS housing with 2 different mounting options.
  • This stationary scanner is available with an RS232, USB (HID/VCP) and Keyboard Wedge interface, to fit any design and implementation requirement.
NameSizeDownload
Brochure827kb opnlv1001_brochure.pdf
Barcode Reference Manual554kb op_barcode_ref_manual.zip
USB Drivers Installer2,398kb OPT_USB Drivers Installer.exe

Products available to purchase

 SKUVendorName
OPNLV1001-R OPTICONNLV1001 OEM Laser Scanner RS232
OPNLV1001-UHID OPTICONNLV1001 OEM Laser Scanner USB HID
AD5VR10P1.7 GOODSONPlug Pack for FBCXXX Scanners

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
NLB1000OPTICON NLB-1000 Compact Fixed mount Laser Barcode Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
Laser
Light Source
650 nm visible laser diode
Scan Pattern
Single Line
Bi-Directional
Scan Rate
100 Scans/sec
Resolution
0.127 mm / 5 mil
Depth of field
40 - 500 mm (res. 1.0 mm / 39 mil),
20 - 350 mm (res. 0.5 mm / 20 mil)
20 - 200 mm (res. 0.25 mm / 10 mil)
20 - 100 mm (res. 0.15 mm / 6 mil)
30 - 70 mm (res. 0.127 mm / 5 mil)
at PCS 0.9, Code 39
Tilt Angle
-20 to 0°, 0 to +20°
Pitch Angle
-35 to 0°, 0 to +35°
Skew Angle
-50 to -8°, +8 to +50°
Ambient Light Immunity
Fluorescent 3,000 lux max, Direct Sun 50,000 lux
Symbologies supported
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Composite codes, MicroPDF 417, PDF417
Programming Method
Scan Barcodes from Manual
Indicators
1 LED (red/green/orange)
Operating Modes
Manual Trigger, Auto Trigger, Stand Detection
Communication Type
Cabled
Interfaces
RS232 - DB9 PTF connector with external power supply
Keyboard Wedge - MiniDIN6 F/M connector
USB - Ver. 1.1, HID/VCP, USB-A connector
Supply Voltage
5 V ± 10 % (Keyboard Wedge and USB), 6 V (min. 4.5, max. 6.5 V) (RS232)
Power Consumption
Max. 100 mA (typical use)
Drop Specification
1.5 m / 5 ft drop onto concrete surface
10 - 100 Hz with 2G for 1 hour
Environmental Sealing
IP42
Operating Environment
-5 to 50 °C
RH 5 - 95 % (non-condensing)
Storage Environment
-20 to 60 °C
RH 5 - 95 % (non-condensing)
EMC/Safety Standards
CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
External Dimensions (WxDxH)
Scanner 56 x 149 x 109 mm
Stand 146 x 106 x 295 mm
Weight
Scanner 80 g (excl. Cable)
Stand 385 g
