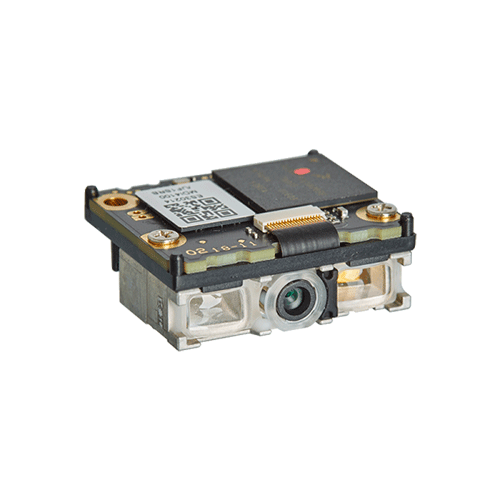

OPTICON MDI-4100 Compact OEM 2D Area imaging Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The MDI-4000 series is perhaps the best currently available reliable scanning engine. It consists of an extremely fast camera that quickly takes a picture of the barcode and decodes it. Its size is astonishing; it is a mere 10mm thickness (MDI-41×0) or 6mm for the separated decoder version (MDI-40×0). This scan engine is a must-have for every engineer that is serious about taking scanning to the next level.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
3 months
  • Smaller than ever
  • Scanning 100 frames per second
  • 1D and 2D scanning
  • Functions very well on imperfect printed barcodes
NameSizeDownload
Datasheet1,166kb mdi4x00_datasheet.pdf

Products available to purchase

 SKUVendorName
OPMDI4100 OPTICONOEM 2D CMOS Imager Engine

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
CMOS area sensor
Scan Pattern
CMOS Area sensor, 640 x 480 pixel array, black and white
Motion Tolerance
N/A
Scan Angle
Horizontal 38°, Vertical 28.9°
Contrast Ratio
20% Minimum reflective difference
Pitch Angle
-65 to 0°, 0 to +65°
Skew Angle
-65 to 0°, 0 to +65°
Resolution
Min. Resolution at pcs 0.9:
0.1 mm / 4 mil for 1D Codes
Min pcs value 0.2 (0.3 for UD Model)
Depth of field
at Code 39
52 - 126 mm res. 0.127 mm / 5 mil
46 - 246 mm res. 0.254 mm / 10 mil
60 - 466 mm res. 0.508 mm / 20 mil
at QR Code
64 - 106 mm res. 0.169 mm / 6.7mil
30 - 234 mm res. 0.381 mm / 15 mil
Performance may be impacted by Bar code quality and environmental conditions
Ambient Light Immunity
Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max
Indicators
N/A
Interfaces
12 Pin FFC connector; Serial TTL, USB

Sold separatly: MEK-3100 development board
RS232, USB
Symbologies supported
1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal Code: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET
2D Code: Aztec Code, Aztec Runes, Chinese Sensible Code, Codablock F, Composite Codes, Data Matrix, (ECC200), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code, Passport MRZ ( OCR-B)
Supply Voltage
3.0 -5.5V
Power Consumption
Max. 300 mA
Operating Environment
-20° ~ 60°C, Relative Humidity up tp 5-90% non condensing
Storage Environment
-40° ~ 70°C, Relative Humidity up tp 5-90% non condensing
Drop Specification
Packed in dummy Case 1.8 m onto Concrete Surface
Environmental Sealing
N/A
ESD Protection
N/N
External Dimensions (WxDxH)
Camera (CMOS) 24.6 x 13.5 x 6 mm
PCB (Decoder Board) 27.0 x 22.0 x 3.0 mm
Weight
5.5 g
Product Compliance
RoHS, IEC 62471
