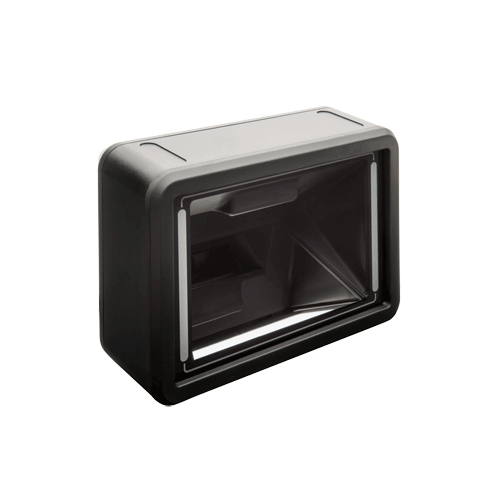

OPTICON M-11 2D Presentation Scanner USB Black

(Product may vary from image. Rely only on description for purchasing decisions.)
  • OPM11B-U
  • 14294
  • OPTICON
  • OPM11
    • Login to view pricing and availability

M-11 2D Presentation Scanner, designed to read from Mobile Phones, USB Black

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • 2D Presentation Scanner
  • Supports all Commomn 1D & 2D Codes
  • Imaging from Mobile Coupons
  • 360° high speed reading
  • High Speed Scanning at 120 fps
  • Several Trigger Options
  • Flexible Cable Management
NameSizeDownload
Brochure93kb m11_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
3310gVuquest 3310g Area Imager Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
Monochrome CMOS area sensor 1280 x 800 Pixels
Light Source
2 LEDs - 2 warm white aiming LEDs
Scan Pattern
N/A
Scan Rate
Up to 120 fps
Motion Tolerance
UPC 0.33 mm, 2.54ms
Image Capture
Windows Bitmap, JPEG
Capture Area
N/A
Contrast Ratio
N/A
Resolution
Min Resolution at PCS 0.9: 0.1 mm Code 39
Depth of field
Depth of field
at Code 39: 35 - 88 mm (0.127 / 5 mil)
at UPC/EAN: 0 - 198 mm (0.26 / 10.2 mil), 0 - 234 mm (0.33 / 13 mil)
at QR code: 0 - 142 mm (0.381 / 15 mil)
at Datamatrix: 28 - 99 mm (0.254 / 10 mil)
Tilt Angle
360°
Pitch Angle
±60°
Skew Angle
±70°
Ambient Light Immunity
Fluorescent 10,000 lx or less, sunlight 100.000 lx or less
Symbologies supported
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code
39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA,
Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey,
S-Code, Telepen, Tri-Optic, UK/Plessey, USPS Postal code: Chinese Post,
Intelligent Mail Barcode, Korean Postal Authority code, Postal JPN, POSTNET
2D code: Aztec Code, Aztec Runes, Composite codes, Codablock F, Data
Matrix, (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR
Code, PDF417, QR code
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the USB interfaces
Opticonfigure
Driver available
N/A
Indicators/Controls
Visual: 2 LEDs (Red/Green/Blue)
Non-visual: Built-in Speaker, Tone adjustable
Communication Type
USB: Full-speed 12Mbps (HID/COM)
Interfaces
USB
Supply Voltage
4.5~5.5V USB
Power Consumption
N/A
Drop Specification
1.5 m / 5 ft drop onto concrete surface
Environmental Sealing
IP42
ESD Protection
N/A
Operating Environment
-5 to 45 °C Humidity in operation: 10~90% non-condensing
Storage Environment
-30 to 60 °C 20 - Humidity in storage: 10~90% non-condensing
EMC/Safety Standards
CE, IEC62471-1:2006, VCCI, EN55032, EN55024, FCC, RoHS
External Dimensions (WxDxH)
84.4 x 124.4 x 48 mm
Weight
290 g
