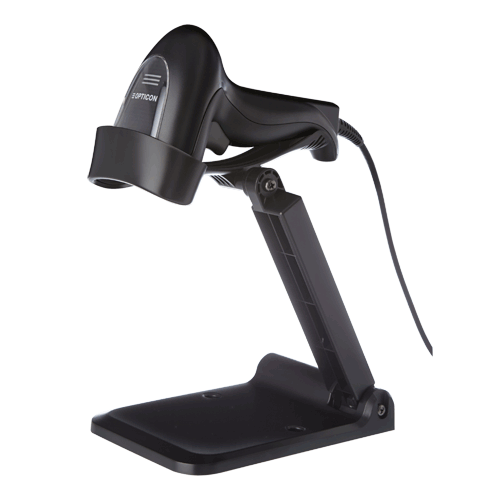

OPTICON L-51X 2D Imager Scanner ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The L-51X is a pistol-grip designed cabled scanner with a very advanced 2D imager that scans at a speed of 100 fps. Furthermore, the design makes it possible to add your own design, image or logo to the top of the scanner, this way you can use the product to expand your brand visibility or presence. This addition is truly unique and as far as we are aware only Opticon offers this option.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Handheld 2D Imager Scanner
  • High Speed Scanning
  • Multi Interface
  • LED Aiming
  • Editing function
  • Fast moving object Scanning
NameSizeDownload
Brochure131kb opl-51X_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
CMOS Area Sensor. 640 x 480 pixels
Light Source
Aiming green LED
Scan Pattern
640 x 480 Pixels
Scan Rate
Up to 100 frames/sec
Resolution
at PCS 0.9: 0.1 mm / 3.9 mil
Minimum PCS 0.2
Depth of field
Code 39:
65 - 365 mm (res. 0.508 mm / 20 mil)
30 - 180 mm (res. 0.254 mm / 10 mil)
25 - 75 mm (res. 0.127 mm / 5 mil)
Code 128
45 - 145 mm (res. 0.2 mm / 7.87 mil)
UPC
30 - 225 mm (res. 0.33 mm / 13 mil)
PDF417
20 - 105 mm (res. 0.169 mm / 5 mil)
20 - 160 mm (res. 0.254 mm / 10 mil)
QR Code:
39 - 53 mm (res. 0.169 mm / 5 mil)
20 - 180 mm (res. 0.381 mm / 15 mil)
DataMatrix:
39 - 53 mm (res. 0.169 mm / 5 mil)
30 - 105 mm (res. 0.254 mm / 10 mil)
Tilt Angle
360°
Pitch Angle
-65 to 0°, 0 to +65°
Skew Angle
-65 to 0°, 0 to +65°
Ambient Light Immunity
Fluorescent 10,000 lux max, Incandescent 10,000 lux max., Direct Sun 100,000 lux
Symbologies supported
1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), GS1 DataBar Limited, GS1 DataBar Expanded, Code 11, IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSM-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic,UK/Plessey
Postal Code: Inteligent Mail Barcode,Korean Postal Authority code, POSTNET PLANET, Japan Postal, Netherland KIX Code, UK Postal, Australian Postal Code
2D Code: Aztec Code, Chinese Sensible Code, Codablock F, DataMatrix (ECC 200/ECC-000-140), Maxi Code, MicroPDF417, Micro QR Code, PDF417, QR Code, Passport MRZ OCR-B
Programming Method
Scan barcodes from Manual
Indicators/Controls
1 x Scan Key
Visual 1 White LED
Buzzer
Communication Type
Cabled
Interfaces
USB - Ver. 2.0, HID/COM, USB-A connector
RS232 - DB9 PTF connector with external power supply
Supply Voltage
5 V ± 5 %
Power Consumption
Typical. 400 mAh
Drop Specification
1.5 m / 5 ft drop onto concrete surface
10 - 100 Hz with 2G for 1 hour
Environmental Sealing
IP42
Operating Environment
-20 to 50 °C
RH 5 - 90 % (non-condensing)
Storage Environment
-30 to 60 °C
RH 5 - 90 % (non-condensing)
EMC/Safety Standards
CE, FCC, VCCI Class B, RoHS, IEC/EN 62471-1:2006, EN55022, EN55024
External Dimensions (WxDxH)
75.4 x 121.2 x 169.5 mm
Weight
145 g (excl. cable)
