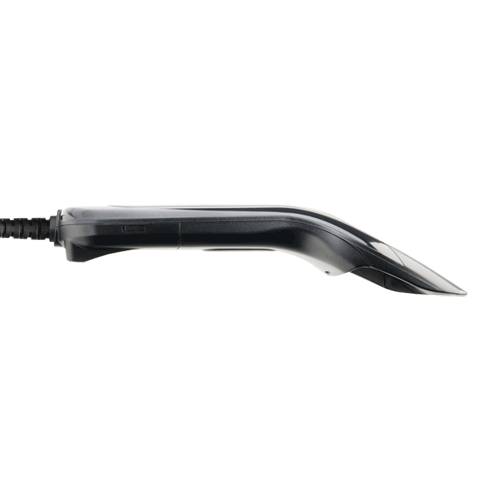

OPTICON L-22X 2D Imager Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The L-22X is a welcome addition to our cabled scanners product range. The 2D image scanner has a modern design, scans at a speed of 100 fps and is designed to balance perfectly in your hand. As a result the scanner delivers a comfortable scan experience.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • 2D Imager Scanner
  • 1D & 2D scanning at 100 fps
  • Ergonomic design
  • Manual, Auto trigger (stand Detection) mode
  • Delivered with stand
NameSizeDownload
Brochure98kb opl22x_brochure.pdf

Products available to purchase

 SKUVendorName
OPL22XBKIT-U OPTICONL-22X 2D Imager Scanner Black with Stand USB

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
OPI2101OPTICON OPI-2101 2D Handheld Scanner
OPI3601OPTICON OPI-3601 2D Handheld Scanner
OPL50XOPTICON L-50X 2d Handheld Scanner
OPL51XOPTICON L51X 2D Handheld Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
Monochrome CMOS Area Sensor
Light Source
Warm white LED
Scan Pattern
640 x 480 Pixels
Scan Rate
Up to 100 frames/sec
Resolution
at PCS 0.9: 0.1 mm / 3.9 mil
Minimum PCS 0.3
Motion Tolerance UPC 100% at 2.54 m/s
Depth of field
Code 39:
31 - 318 mm (res. 0.508 mm / 20 mil)
9 - 156 mm (res. 0.254 mm / 10 mil)
11 - 57 mm (res. 0.127 mm / 5 mil)
Code 128
24 - 112 mm (res. 0.2 mm / 7.9 mil)
UPC
9 - 195 mm (res. 0.33 mm / 13 mil)
PDF417
4 - 76 mm (res. 0.169 mm / 6.7 mil)
0 - 130 mm (res. 0.254 mm / 10 mil)
QR Code:
22 - 44 mm (res. 0.212 mm / 8.3 mil)
0 - 161 mm (res. 0.381 mm / 15 mil)
DataMatrix:
22 - 48 mm (res. 0.169 mm / 6.7 mil)
2 - 96 mm (res. 0.254 mm / 10 mil)
Tilt Angle
360°
Pitch Angle
-65 to 0°, 0 to +65°
Skew Angle
-65 to 0°, 0 to +65°
Ambient Light Immunity
Fluorescent 10,000 lux max, Incandescent 10,000 lux max., Direct Sun 100,000 lux
Symbologies supported
1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), GS1 DataBar Limited, GS1 DataBar Expanded, Code 11, Industrial 2of5, Interleaved 2of5, MSI/Plessey.
Postal Code: Inteligent Mail Barcode,Korean Postal Authority code, POSTNET PLANET, Japan Postal, Netherland KIX Code, UK Postal, Australian Postal Code
2D Code: Aztec Code, Chinese Sensible Code, Codablock F, DataMatrix (ECC 200), Maxi Code, MicroPDF417, Micro QR Code, PDF417, QR Code.
Programming Method
Scan barcodes from Manual
Indicators/Controls
1 x Scan Key
Visual 3 Colour LED
Buzzer, vibrator
Operating Modes
Manual Trigger, Auto Trigger, Stand Detection
Communication Type
Cabled
Interfaces
USB - Ver. 2.0, HID/COM, 12Mbps full speed, USB-A connector
RS232C - USBCOM
Supply Voltage
5 V ± 10 %
Power Consumption
Typical. 340 mAh
Drop Specification
1.5 m / 5 ft drop onto concrete surface
10 - 100 Hz with 2G for 1 hour
Environmental Sealing
IP42
Operating Environment
-5 to 50 °C
RH 0 - 90 % (non-condensing, no frost)
Storage Environment
-30 to 60 °C
RH 0 - 90 % (non-condensing, no frost)
EMC/Safety Standards
CE, FCC, VCCI Class B, RoHS, IEC61000-4-2, EN55032, EN55024 (EN6100-6-1) Class B
External Dimensions (WxDxH)
Scanner 105.4 x 60 x 153.4 mm
Weight
Scanner 150 g (excl. cable)
