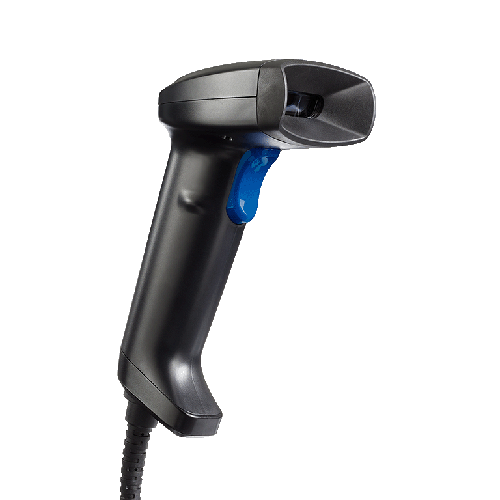

OPTICON L-210 2D Imager Scanner Black USB no Stand

(Product may vary from image. Rely only on description for purchasing decisions.)
  • OPL210B-U
  • 14980
  • OPTICON
  • OPL210
    • Login to view pricing and availability

L-210 2D Imager Scanner Black USB no Stand

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • High speed 2D CMOS imager
  • Rapidly scans and decodes a wide variety of 1D or 2D barcodes
  • The L-210 comes standard with antimicrobial properties
  • Custom configuration capabilities including multi-read
  • Enhanced motion tolerance
  • Improved scanning of curved, wide and poorly printed barcodes
  • LED indicators on the top of the scanner
  • Durable – survives 1.5 meter drop to concrete
  • Trigger modes: manual, auto-trigger and stand detection
  • Communication interface: USB Composite device (both serial and HID. Serial is always available for configuration)
  • Optional accessories: stand
NameSizeDownload
Brochure846kb opl210_Leaflet.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
CMOS Area Sensor
Light Source
Aiming green LED, cool white illumination LED
Scan Pattern
640 x 480 Pixels
Scan Rate
Up to 100 frames/sec
Resolution
at PCS 0.9: 0.2 mm / 5 mil
Minimum PCS 0.2
Depth of field
Code 39:
55 - 128 mm (0.127 mm) (5 mil)
54 - 238 mm (0.254 mm) (10 mil)
71 - 435 mm (0.508 mm) (20 mil)
Code 128
64 - 193 mm (0.2 mm) (7.9 mil)
UPC
52 - 293 mm (0.33 mm) (13 mil)
PDF417
51 - 148 mm (0.169 mm) (6.7 mil)
44 - 213 mm (0.254 mm) (10 mil)
QR Code:
62 - 113 mm (0.169 mm) (6.7 mil)
24 - 252 mm (0.381 mm) (15 mil)
DataMatrix:
64 - 118 mm (0.169 mm) (6.7 mil)
45 - 175 mm (0.254 mm) (10 mil)
Tilt Angle
360°
Pitch Angle
360°
Skew Angle
-15 to 0°, 0 to +15°
Ambient Light Immunity
Fluorescent 10,000 lux max, Incandescent 10,000 lux max., Direct Sun 100,000 lux
Symbologies supported
Barcode (1D):
JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code:
Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET
2D code:
Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data matrix (ECC200), Passport MRZ (OCR-B), maxi Code (mode2~5), MicroPDF417, MicroQR Code, PDF417, QR Code
Programming Method
Scan barcodes from Manual
Indicators/Controls
1 x Scan Key
Visual 3 Colour LED
Buzzer
Operating Modes
Manual Trigger, Auto Trigger & Stand detection
Communication Type
Cabled
Interfaces
USB - Ver. 2.0, HID/COM, 12Mbps full speed, USB-A connector
RS232C - USBCOM
Supply Voltage
5 V ± 10 %
Power Consumption
Typical. 300 mA
Drop Specification
1.5 m / 5 ft drop onto concrete surface
10 - 100 Hz with 2G for 1 hour
Environmental Sealing
IP42
Operating Environment
-20 to 50 °C
RH 5 - 90 % (non-condensing)
Storage Environment
-40 to 70 °C
RH 5 - 90 % (non-condensing)
EMC/Safety Standards
CE, FCC, RoHS, IEC62471-1:2006, EN55032, EN55035
External Dimensions (WxDxH)
Scanner 105.4 x 60 x 153.4 mm
Weight
Scanner 112 g (excl. cable)
