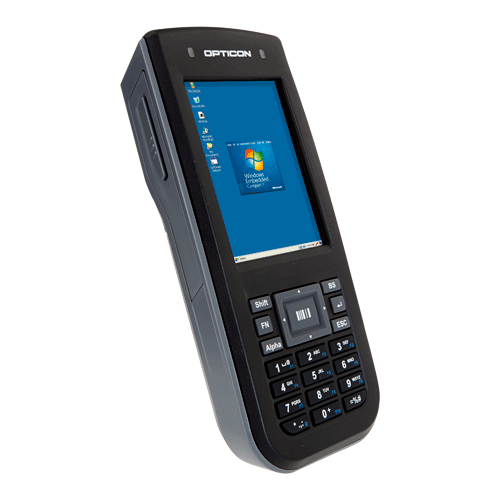

OPTICON H32 Windows CE Portable Data Terminal

(Product may vary from image. Rely only on description for purchasing decisions.)

The comfortable lightweight H-32 (195 g incl. battery) runs on the Windows Embedded Compact 7 Operating System and is designed for every-day use in numerous applications, such as picking, price management, inventory, asset tracking, replenishment and parcel delivery.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Windows Embedded Compact 7 Portable Data Terminal
  • Barcode Laser Scanner
  • Can withstand multiple drops to concrete from 1.5 m
  • IP-54 Rating
  • 2.8 inch QVGA Colour LCD with Touch screen
  • Windows Embedded Compact 7 OS
  • Wifi IEEE 802.11 a/b/g/n CCX
  • Bluetooth V2.1 + EDR
NameSizeDownload
Brochure124kb oph32_brochure.pdf
User Manual1,358kb oph32_uge.pdf

Products available to purchase

 SKUVendorName
OPH32-1D OPTICONH-32 1D PDT Kit with Battery
OPCRD32 OPTICONH32 Charge Communication Cradle
OPH32HOLSTER OPTICONHolster for H-32 PDT
AD-OP6VR20 OPTICONPower Supply 6V 2A (1.7x4x9.5)
OPH32STBATT OPTICONStandard Battery for H-32 1800mAh
CAB-USB2AMCB1 GOODSONUSB 2.0 A to Micro B

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
D6100Dolphin 6100 CE device
D6500Dolphin 6500 CE device

Parts documents

Parts layout details

Specifications
Processor
XScale PXA310 @ 624 MHz with Cortex-M3, 32 bit @ 72 MHz co-Processor
Operating Platform
Windows Embedded Compact 7
Development Environment
Datalogic Windows SDK™
MCL-Collection™
Wavelink Studio™
Java Virtual Machine
Software Utilities
Applications: Pal™Application Library prelicensed
Memory
Ram Memory: 256 MB
Flash Memory: 512 MB (partially used for firmware and reserved data, depending on the OS)
Memory Expansion
Micro-SD card slot: Compatible with Micro SD-HC cards up to 32 Gb
Scan Options
2D Imaging Engine: Optical Resolution: Linear codes: 4 mils; 2D codes: 5 mils; Scan Rate: 60 frames/sec maximum, Depth of Field: 3.5 to 41.5 cm, depending on bar code density and type, Resolution: VGA (752 H x 480 V pixels), 256 gray scale, Image Format: BMP, JPEG
or
Laser: Scan Rate: 104 +/- 12 scan/sec, Optical Resolution: 0.10 mm / 4 mils, Depth of Field: 4 to 82 cm, depending on bar code density
Both with Good Read Feedback: Datalogic’s patented ‘Green Spot’ for good-read feedback
Symbologies supported
Depending on Scan enging used:
1D / linear codes; Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes; Aztec Code, Data Matrix, MaxiCode, QR Code, UPU FICS, USPS Intelligent Mail
Postal codes; Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC)
Stacked codes; Micro-PDF417, PDF417
Keyboards
28-key Numeric, 38-key Numeric/Function or 50-key QWERTY backlit keyboard
Audio
Display
TFT / Transflective LCD with 240 x 320 pixel resolution, LED backlight and integrated touch screen, 3.2 in diagonal
Camera
N/A
I/O Ports
Main connector with USB 1.1 Host, USB 1.1 Client, RS-232 up to 115.2 Kbps
Micro-USB port for power only, no data communication interface
Ethernet: via single dock (external module) or multiple cradle
Radio Options
WLAN: Summit IEEE 802.11 b/g/n Cisco CCX v4 certified Frequency range: Country dependent, typically 2.4 GHz bands

WPAN: Bluetooth® Wireless Technology IEEE 802.15 Class 2.0 with EDR
Battery
Removable battery pack with rechargeable Li-Ion batteries.
Standard: 3.7 V; 3000 mAh (11.1 Watt-hours)
Extended: 3.7 V; 5200 mAh (19.2 Watt-hours)
Battery Life
Drop Specification
Withstands drops from 1.5 m onto concrete
Environmental Sealing
IP64
ESD Protection
Operating Environment
-10 ~ 50°C
Storage Environment
-20 ~ 70°C
EMC/Safety Standards
External Dimensions (WxDxH)
Handheld: 193 x 76 x 42 mm (61 x 35 mm at keyboard)
With Pistol Grip: 193 x 76 x 156 mm
Weight
Handheld (with standard battery): 392 g
Pistol Grip (with standard battery): 482 g
