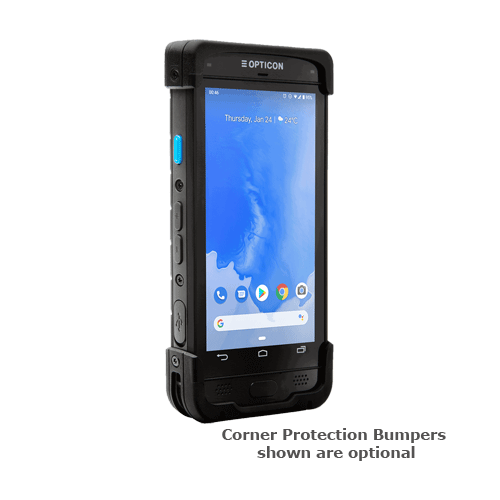

OPTICON H-31 2D PDA Device

(Product may vary from image. Rely only on description for purchasing decisions.)

Opticon’s most ergonomic and dependable mobile computers that come with an Android 9 operating system. Opticon’s H-31 incorporate a brilliant 5” full-color FHD touch screen, and a 16 MP rear camera providing a user-friendly interface with the functionality of a computer and a scanner.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Portable Personal Assistant Data Terminal
  • Android 9
  • BT/Wi-Fi supported rugged design
  • 5 inch full color FHD touch screen
  • 64 GB memory
  • 16 MP camera with auto focus
  • High performance Opticon scanning
  • Google Mobile Service (GMS)
  • Always connected through Wi-Fi or Bluetooth
  • High capacity battery of 4,000mAh
  • Protection rate at IP 67
  • Optional bumper for drop down protection
NameSizeDownload
Brochure637kb h31_33_brochure.pdf

Products available to purchase

 SKUVendorName
OPH31B-BN0A OPTICONOPH-31 Ent Dig Ass Wifi BT 2D Scnr And9.0 with Bump
OPCRD31C-UKIT OPTICONCharge Comms Cradle for H33 28 with Bump + PS&cab
OPH31BUMP OPTICONH-31 33 Bumper Accessory
OPH31TRHANDLE OPTICONOPH-28 31 33 Pistol Grip
OPCRD31C-AD OPTICONPower Supply for CRD31C Cradles
OPH31STBATT OPTICONStandard Battery for H-31 33

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
Qualcomm SDM450 A53 1.8Ghz Octa-core
Operating Platform
Android 9.0
Development Environment
Software Utilities
Memory
64GB EMMC, 4GB LPDDR3
Memory Expansion
Micro-SD card slot: Compatible with Micro SD-HC
Scan Options
CMOS area sensor, 640 x 480 pixels
Aiming green LED, illumination LEDs
Up to 100 fps Image
pitch -65 to 0°, 0 to +65°
skew -65 to 0°, 0 to +65°
tilt: 360° Curvature:
Depth of Field code 39
52-126 mm (5mil)
46-246mm (10mil)
60-466mm (20mil)
QR-Code
64-106mm (6.7 mil)
30-234mm (15mil)
Symbologies supported
Depending on Scan enging used:
1D / linear codes; Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes; Aztec Code, Data Matrix, QR Code, Passport MRZ (OCR-B), Maxi Code, Codablock, MicroPDF417, MicroQR, PDF417, QRCode
Postal codes; Chinese Post, Intelligent Mail Barcode, Korean Post, POSTNET
Keyboards
Entry options: 1 power key, 2 volume keys, 2 (programmable) scan keys, 2 function keys, 3 OS keys
Audio
Dual Speakers
Display
FHD LCD (520 nits), capacitive touch panel, color screen Size: 5”, Protection Gorilla glass
Camera
Rear Facing 16 MP, auto-focus, LED flash with torch
I/O Ports
Radio Options
Bluetooth: 4.2 LE
W-LAN: WiFi, IEEE.802.11 a/b/g/n/ac
NFC: ISO14443-3A) (Type A.B, Mifare, Felica), IOS15693n
Battery
Standard Lithium-Ion 3.7V 4000 mAh
Optional extended Battery Lithium-Ion 3.7V 5720 mAh
Rechargable RTC Backup battery for hot swap of main battery
Battery Life
Drop Specification
1.8 m drop onto concrete surface with protective bumper
1.5 m drop onto concrete surface without protective bumper
Environmental Sealing
IP67
ESD Protection
Operating Environment
-10 ~ 50°C
30 - 80% Humidity non condensing
Storage Environment
-30 ~ 60°C
5 - 90% Humidity non condensing
EMC/Safety Standards
Product compliance: CE, CB, FCC, VCCI, TELEC, RoHS, WEEE, REACH
External Dimensions (WxDxH)
79 x 158 x 20.8 mmm
Weight
319g inc standard battery
