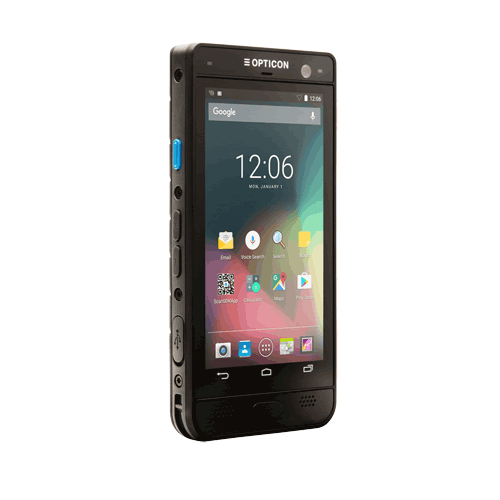

OPTICON H-28 2D Android 6.01 PDA Device

(Product may vary from image. Rely only on description for purchasing decisions.)

The H-28 is an ergonomic mobile computer that comes with the Android 6.0.1 operating system, that has the functionality of a computer and a scanner, but with the experience of a smartphone. A 16 MP camera with autofocus is included. With the 5 inch full color FHD touch screen, the H-28 is very user-friendly.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Mobile Computer
  • Android 6.0.1
  • 4G/Wi-Fi supported rugged design
  • 5 inch full color FHD touch screen
  • 16 GB memory
  • 16 MP camera with auto focus
  • High performance Opticon scanning
  • Always connected through mobile data, Wi-Fi or Bluetooth
  • Protection rate at IP 67
  • Optional bumper for drop down protection
NameSizeDownload
Brochure103kb oph28_brochure.pdf

Products available to purchase

 SKUVendorName
OPH28-BN4A OPTICONOPH-28 Ent Dig Ass Wifi BT 4G 2D Scanner
OPH28BUMP OPTICONH-28 Protection Bumper Kit

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
Qualcomm Snapdragon 617 A53 Octa-core
Operating Platform
Android 6.01
Development Environment
Opticon SDK downloadable
Software Utilities
N/A
Memory
16GB EMMC
2GB LPDDR3 RAM
Memory Expansion
Micro-SD card slot
Scan Options
Light source: Aiming green LED, warm white illumination LED
Scan method: CMOS
area sensor, 640 x 480 pixels Black/White
Scan rate: Up to 100 fps
Reading pitch angle: -65 to 0°, 0 to +65°
Reading skew angle: -65 to 0°, 0 to +65°
Reading tilt angle: 360°
Curvature: R>15 mm (EAN8), R>20 mm (EAN13)
Min. resolution at pcs 0.9: 0.1mm / 4 mil. Min. PCS value: 0.9
Depth of field:
Code 39 (5 mil), 52 -126 mm
Code 39 (10 mil), 46-246mm
Code 39 (20 mil), 60-466mm
QR Code (6.7mil), 64-106mm
QR Code (15mil), 30-234mm
Symbologies supported
Depending on Scan enging used:
1D / linear codes; Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes; Aztec Code, Aztec Runes, Data Matrix, MaxiCode, QR Code, Codablock F Composite codes, Passport MRZ (OCR-B), Micro-PDF417, PDF417
Postal codes; Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET
Keyboards
1 power key, 2 volume keys, 2 programable scan keys, 2 Function Keys, 3 OS Keys
Audio
Through Bluetooth
Display
FHD, capacitive touch panel, colour screen, Size: 5”
Protection: Gorilla glass
Operating Indicators: 2 LED's (red/green), 1 LED (red/green/yellow)
Non-visual: Vibrate, Buzzer
Camera
Rear Facing 16MP, Auto-focus
Front Facing 5MP
I/O Ports
Micro-USB port for power only, no data communication interface
Ethernet: via single dock (external module) or multiple cradle
Radio Options
Bluetooth: 4.0 LE
W-LAN: WiFi, IEEE.802.11 a/b/g/n /ac/r
NFC: ISO14443-4 (Type A&B), ISO15693, Mifare, Felica (ISO/IEC18092)
GPS: GPS/GLONASS
Optional W-WAN: 4G
Battery
Lithium-Ion 3.7V 2960 mAh
Optional Extended Battery: 5920 mAh
Charging Technology: Qualcomm Quickcharge 2.0 (USB Only)
Battery Life
Operating time (WWAN on, LCD on) Standard Battery Approx. 9 Hours, Extended Battery approx. 18 Hours
Drop Specification
1.5 m / 5 ft drop onto concrete surface (MIL-STD 810G)
with Bumper: 1.8 m / 6 ft drop onto concrete surface (MIL-STD 810G)
Environmental Sealing
IP67
ESD Protection
Operating Environment
-20 ~ 50°C
Storage Environment
-30 ~ 60°C
EMC/Safety Standards
Product compliance: CE, CB, FCC, NCC, BSMI(TBD), IEC62133, UN38.3, Ul2054, RoHS, WEEE, REACH
External Dimensions (WxDxH)
77 x 16.9 x 158 mmm (standard Battery)
Weight
308 g with standard Battery
