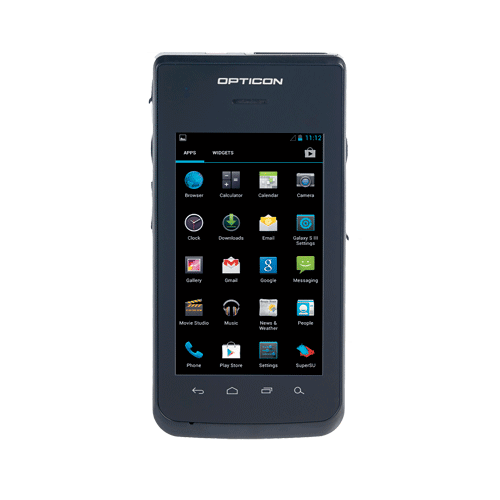

OPTICON H-27 Android Enterprise PDA

(Product may vary from image. Rely only on description for purchasing decisions.)

The H27, a Mobile Enterprise Assistant Data terminal with Android 4.2.2 Operating System, a barcode reader, colour camera and 3.5G communication. The H27 withstands drops up to 1.5 meter onto concrete and is sealed up to IP 65 standards. The H27 is standard also equipped with assisted GPS, Bluetooth, WiFi (a/b/g/n) and NFC. The unit can either have a 1D Laser Scanner or a 2D Imager Scanner.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Android Portable Personal Assistant Data Terminal
  • Barcode Laser Scanner or 2D Imager
  • Can withstand multiple drops to concrete from 1.5 m
  • IP-65 Rating
  • 4.3" Colour LCD with Capacitive Touch screen, Gorilla glass V2 and Anti reflective coating
  • Android 4.2.2 Operating System
  • WWAN Data GPRS/EDGE, UMTS, HPSA+
  • GPS: Integrated GLOnASS
  • Wifi IEEE 802.11a/b/g/n
  • Bluetooth Ver.4.0
  • Colour Camera 5 Megapixels, Autofocus, Flash LED
  • Accelerometer, Magnetometer, Gyroscope, Photometer and Proximity Sensors
NameSizeDownload
Brochure183kb oph27_brochure.pdf

Products available to purchase

 SKUVendorName
OPH27-2D OPTICONOPH-27 2D Enterprise Assistant
OPCRD27 OPTICONH-27 Charge Communication Cradle Kit
OPH27STBATT OPTICONRechargable Battery for H27

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
Qualcomm MSM8960 Dual core Krait 1.5GHz
Operating Platform
Android 4.2.2
Development Environment
Software Utilities
Memory
8GB SDRAM: DDR2 1GB
Memory Expansion
Micro-SD card slot: Compatible with Micro SD-HC cards up to 32 Gb
Scan Options
Light source: Aiming green LED, illumination LEDs Scan method: CMOS
area sensor, 752 x 480 pixels, gray scale Scan rate: Up to 60 fps Image
format: Windows Bitmap, JPEG, TIFF Gradulation: 256, 16, 2 Image
output mode: 4 resolutions (full, 1/2, 1/3, 1/4), 2 ranges (horizontal,
vertical) Reading pitch angle: -50 to 0°, 0 to +50° Reading skew
angle: -50 to 0°, 0 to +50° Reading tilt angle: 360° Curvature:
R>16 mm (10-digit Codabar), R>20 mm (12-digit UPC
or
LASER - 650 nm visible laser diode Scan rate: 100 scans/sec
Reading pitch angle: -35 to 0°, 0 to +35° Reading skew angle:
-50° to -8°, +8° to +50° Reading tilt angle: -20° to 0°, 0° to +20°
Curvature: R>15 (EAN8), R>20 (EAN13) Min. PCS value: 0.45 Depth of
field: At PCS 0.9, Code 39, 70 -650 mm / 2.76 - 25.59 in (1.00 mm / 39 mil),
50 - 420 mm / 1.97 - 16.54 in (0.5 mm / 20 mil), 50 - 260 mm / 1.97 - 10.24
in (0.25 mm / 10 mil), 50 - 150 mm / 1.97 - 5.91 in (0.15 mm / 6 mil), 60 - 120
mm / 2.36 - 4.72 in (0.127 / 5 mil)
Symbologies supported
Depending on Scan enging used:
1D / linear codes; Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes; Aztec Code, Data Matrix, MaxiCode, QR Code, UPU FICS, USPS Intelligent Mail
Postal codes; Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC)
Stacked codes; Micro-PDF417, PDF417
Keyboards
1 power key, 2 volume keys, 2 scan keys, 4 Android navigation keys
Audio
Speaker/receiver/microphone/3.5 mm headset (CTIA)/Bluetooth (HSP, HFP, A2DP)
Display
TFT LCD (350 nits), capacitive touch panel, color screen Size: 4.3”, 800 x 480 pixels Protection Gorilla glass v3 Coating Anti reflective
Camera
N/A
I/O Ports
Main connector with USB 1.1 Host, USB 1.1 Client, RS-232 up to 115.2 Kbps
Micro-USB port for power only, no data communication interface
Ethernet: via single dock (external module) or multiple cradle
Radio Options
Bluetooth: 4.0 W-LAN:
WiFi, IEEE.802.11 a/b/g/n wwan: 2G (850/900/1800/1900), 3G (850, 900, 1700, 1900, 2100) WWAN data: GPRS, eDGe, UMTS, HSPA+ Ethernet: via USB-to-Ethernet adapter (supported
USB-to-Ethernet chipsets AX8817x, AX88178, AX88178A, AX88772, RTL8150) nfc: nfcA (ISO14443-3A), nfcB (ISO14443-3B), nfcF (JIS 6319-4), isoDep (ISO 14443-4), nFC Forum Tag Types 1, 2, 3, 4, iSO18092, nfcV (iSO15693), MiFARe Classic, MiFARe Ultralight, nDeF on MiFARe Classic GPS:
integrated GPS and GLOnASS A
Battery
Lithium-Ion 3.7V 2860mAh
Battery Life
8 hours
(LCD on, 3G on), standby time 325 hours
Drop Specification
.5 m / 5 ft drop onto concrete surface
Environmental Sealing
IP65
ESD Protection
Operating Environment
-10 ~ 50°C
Storage Environment
-20 ~ 70°C
EMC/Safety Standards
External Dimensions (WxDxH)
77 x 147 x 19 mmm
Weight
244g
