OPTICON H-21 2D Windows Mobile™ 6.0 PDA Device

(Product may vary from image. Rely only on description for purchasing decisions.)

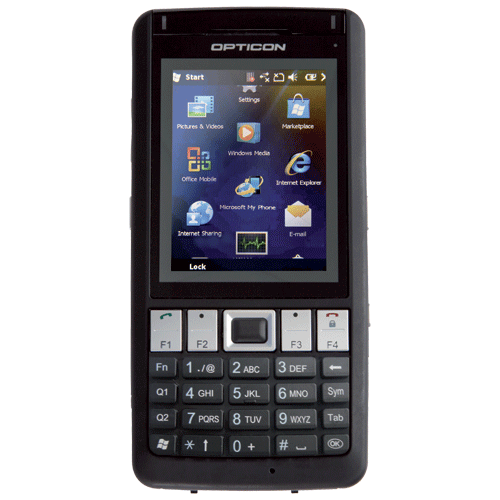

The H21, a consumer-grade design, is a mobile terminal with Windows Mobile 6.5, a barcode reader, color camera and 3G communication. The H21 withstands drops up to 1.5 meter onto concrete and is sealed up to IP 64 standards. Apart from Windows Mobile 6.5, the H21 is standard equipped with assisted GPS, 3G and 3.5G communication, Bluetooth and WiFi. The barcode reader provides the versatility to read all standard 1D barcode and 2D symbologies.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Windows Mobile™ Portable Data Terminal
  • 2D Imager
  • Can withstand multiple drops to concrete from 1.5 m
  • IP-64 Rating
  • 2.8 inch Colour LCD with Touch screen
  • Windows Mobile® 6.5
  • GPRS/EDGE (Quad Band 850/900/1800/1900), 3G UMTS (WCDMA band 1,II,V,VI), 3.5G UMTS (HSDPA 7.2M / HSUPA 5.76 M)
  • GPS: Integrated AGPS
  • Wifi IEEE 802.11b/g
  • Bluetooth Ver. 2.1 + EDR Class 2
  • Colour Camera 3.2 Megapixels
NameSizeDownload
Brochure600kb oph21_brochure.pdf
User Manual3,687kb oph21_ume.zip

Products available to purchase

 SKUVendorName
OPH21N-2D OPTICONH-21 2D PDT with Numeric Keyb WM
OPH21Q-2D OPTICONH-21 2D PDT with QWERTY Keyb WM
OPH21CARHLDKIT OPTICONCar holder Kit for the H21
OPCRD21 OPTICONH21 Charge Cradle Kit with PS
OPH21STBATT OPTICONStandard Battery for H21
CAB-USB2AMiB2 GOODSONUSB A to Mini B (5Pin) 2m
AD-USB10A GOODSONUSB Type A Power Supply 1A

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
Qualcomm MSM7225 528 Mhz
Operating Platform
Microsoft® Windows Mobile® 6.5
Development Environment
Software Utilities
Memory
NAND FLASh: 256 MB RAM: 256 MB
Memory Expansion
User accessible microSD
Scan Options
after auto-focus activation (100 ms after triggering) IMAGE FORMAt: Bitmap, JPEG READInG PItCh AnGlE: -50 to 0°, 0 to +50° READInG SkEW AnGlE: -50 to 0°, 0 to +50° READInG tIlt AnGlE: 360° MIn. RESOlUtIOn At PCS 0.9: 0.127 mm / 5 mil Min. PCS VAlUE: 0.45 FIElD OF VIEW: horizontal 40°, Vertical 23° DEPth OF FIElD: At *QR Code* and Code 39, *45 - 65 mm / 1.77 - 2.56 in (0.127 mm / 5 mil)*, *45 - 230 mm / 1.77 - 9.06 in (0.381mm / 15 mil)*, 45 - 110 mm / 1.77 - 4.33 in (0.127 mm / 5 mil), 50 - 260 mm / 1.97 - 10.24 in (0.254 mm / 10 mil), 120 - 1000 mm / 4.72 - 39.37 in (1.0 mm / 39 mil)
Symbologies supported
Depending on Scan enging used:
1D / linear codes; Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes; Aztec Code, Data Matrix, MaxiCode, QR Code, UPU FICS, USPS Intelligent Mail
Postal codes; Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC)
Stacked codes; Micro-PDF417, PDF417
Keyboards
28-key Numeric, 38-key Numeric/Function or 50-key QWERTY backlit keyboard
Audio
Speaker/microphone (mono), headset
connector (stereo)
Display
Graphic Transflective TFT LCD with touch panel, 16-bit color with adjustable backlight Size: 2.8”, 480 x 640 pixels Mode: Portrait / Landscape
Camera
3.2 megapixels, auto-focus, LED flash
I/O Ports
User accessible microSD I/O
Radio Options
USB: OTG, client and host IrDA: Ver. 1.3, 2400 bps - 115.2 kbps (SIR), 576 kbps - 1.152 Mbps (MIR)

Bluetooth: Ver. 2.1 + EDR, class 2 W-LAN: WiFi, IEEE.802.11b/g

Telecom: GPRS/EDGE (quad-band 850/900/1800/1900), 3G UMTS (WCDMA band 1,II,V,VI), 3.5G UMTS (HSDPA 7.2M / HSUPA 5.76
M) GPS: Integrated AGPS
Battery
Lithium-Ion 3.7V 3060mAh
Battery Life
Drop Specification
Withstands drops from 1.5 m onto concrete
Environmental Sealing
IP64
ESD Protection
Operating Environment
-10 ~ 50°C
Storage Environment
-40 to 60 °C
EMC/Safety Standards
External Dimensions (WxDxH)
67 x 135 x 22 mm
Weight
235 g
