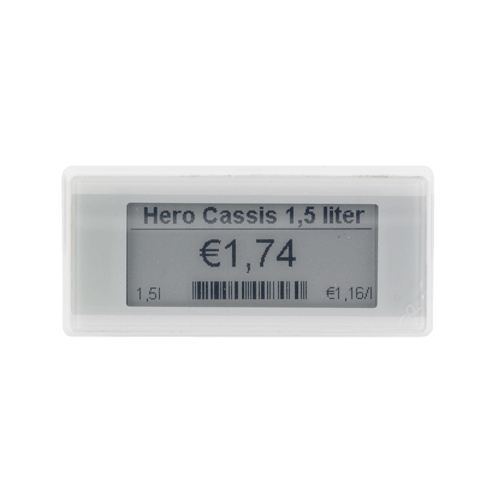

OPTICON EE-201 2" E-Paper Electronic Shelving Display

(Product may vary from image. Rely only on description for purchasing decisions.)

The EE-201 is a high resolution fully graphical, e-paper based, display. Thanks to the high contrast of the display it is even possible to read bar codes off the display using a normal bar code laser scanner. Since the display only consumes power during radio transmission, and display updates, Opticon can guarantee an extreme long life time on only two small batteries.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Electronic Shelf Label
  • 2" e-Paper display 200 x 96 dots
  • Black & White
  • Low power comsumption
  • Typ. 25m Communication Range (indoor)
NameSizeDownload
Brochure71kb opee201_brochure.pdf
ESL Sales Guide328kb opesl_salesguide.pdf

Products available to purchase

 SKUVendorName
OPEE201 OPTICON2" E-Paper ESL Black White 200x96 pixels

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
CC2530-F128, 8051 core 8-bit MCU
Clock Speed 32MHz
Memory
Internal ROM: 96Kb
Internal RAM: 6Kb
Audio
N/A
Display
2" Black & White e-Paper 200 x 96 Pixels (WxH)
Active Area: 45 x 22 mm (WxH)
Contrast Ratio 10:1
Pixel Pitch: 111 dpi
Communication Type
Wireless IEEE 802.15.4
Communication Technology
IEEE 802.15.4
2.4GHz (2405-2480 MHz)
Range Typical 25 m indoor
Speed: up to 250kbps
Number of EE-201 per base station: Max. 2500
Battery
2 x CR2450
Operating Voltage: 2.0-3.3V
Nominal Voltage: 3.0V
Battery Life
Usable Time: 7 Years at room temperature
(update frequency: 4 times per day, poll time 20 seconds)
Environmental Sealing
IP54
Operating Environment
5 ~ 40°C
RH 20-60% non condensing
Storage Environment
-20 ~ 60°C
RH 20-60% non condensing
EMC/Safety Standards
CE, FCC, RoHS, REACH, EN60950-1, IEC 60950-1, EN55022, EN55024
External Dimensions (WxDxH)
65.0 x 15.0 x 34.0 mm
Weight
Approx. 40g
