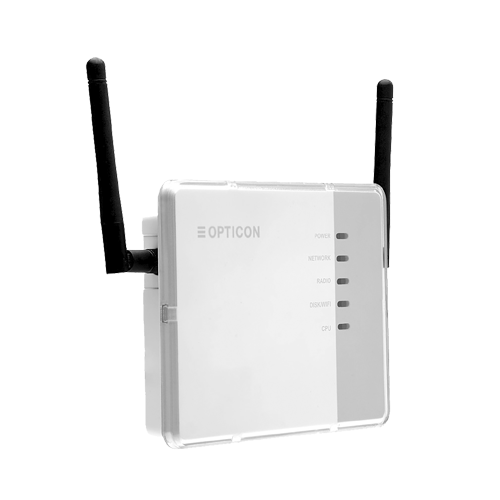

OPTICON EBS-50 ESL RF Smart Base Station

(Product may vary from image. Rely only on description for purchasing decisions.)
  • OPEBS50
  • 14828
  • OPTICON
  • OPEBS50
    • Login to view pricing and availability

EBS-50 is a smart Base Stationthat is designed to not only communicate with the Electronic Shelf Labels, but also function as an access point/Wifi Router.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Smart Base Station
  • Integrated Linux Computer
  • WEB based ESL server application
  • Easy installation, configuration & software updates
  • Upload to the cloud for remote multistore monitoring
  • Customizable dashboard (based on roles and user privileges
  • 2 Port Ethernet switch (daisy chain EBS-40s for more radio coverage
  • Dual Band Wifi Support via USB Dongle, configurable as Wifi Access Point & Client
  • Supports almost all major database formats (CSV, MYSQL, MS-SQL,Oracle, ODBC etc)
  • Support of secure (external) database connections
  • Secure Communication (SSL, HTTPs, VPN, AES)
  • Bi-directional 802.15.4 based radio communication
NameSizeDownload
Brochure978kb ebs50_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
Cortex A7 MCU
Clock Speed 1.2 GHz
Memory
Internal FlashROM: 64Gbyte eMMC
Internal RAM: 512Mb
Audio
N/A
Display
N/A
I/O Ports
2 x Ethernet Ports 10/100/1000 Gigabit, port 1 supports Poe Class 3
USB host: USB-A type dongles
USB OTG: Micro USB
Communication Type
Wireless IEEE 802.15.4
Communication Technology
IEEE 802.15.4
2.4GHz 16 channels (2400-2495 MHz)
Range Typical 25 m indoor
Speed: up to 250kbps
Standard no encryption, optional 256-bit AES encryption
2 Independent Radio's
Power Supply
Min 9V, Max 16V
Power Consumption
200 mA
Operating Environment
0 ~ 70°C
RH 20-85% non condensing
Storage Environment
-20 ~ 70°C
RH 20-85% non condensing
EMC/Safety Standards
CE, FCC, RoHS, REACH, EN60950-1, IEC 60950-1, EN55022, EN55024, REACh, Anatel
External Dimensions (WxDxH)
145 x 110 x 27.1 mm
Weight
Approx. 250g
