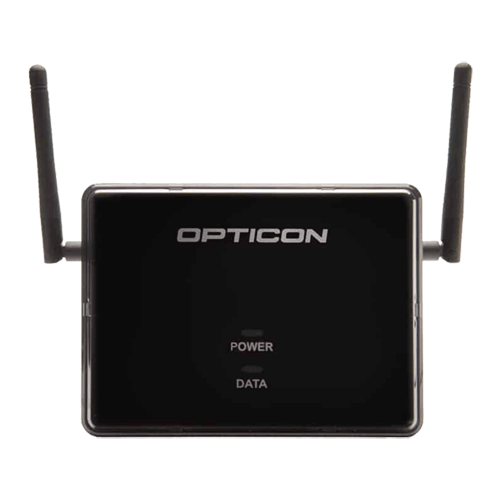

OPTICON EBS-40 ESL RF Base Station

(Product may vary from image. Rely only on description for purchasing decisions.)
  • OPEBS40
  • 13665
  • OPTICON
  • OPEBS40, OPPE292
    • Login to view pricing and availability

The EBS-40 is the base station that is used to communicate with the ESL’s and the ESL Server Software. Ethernet to Server.Up to 2500 ESL, Range Typical 25m IndoorTo ESL RF Protocol IEEE 802.15.4

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • ESL Base Station
  • IEEE 802.15.4 based Protocol
  • Low power comsumption
  • Typ. 25m Communication Range (indoor)
  • 2 Ethernet Ports
  • Easy Daisy Chaining
NameSizeDownload
Brochure52kb opebs40_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
Cortex M4 32-bit MCU
Clock Speed 120MHz
Memory
Internal FlashROM: 512Kb
Internal RAM: 256Kb
External RAM: 8 Mb
Audio
N/A
Display
N/A
I/O Ports
2 x Ethernet Ports 10/100 Mbit/sec, half duplex & full duplex
Communication Type
Wireless IEEE 802.15.4
Communication Technology
IEEE 802.15.4
2.4GHz 16 channels (2405-2480 MHz)
Range Typical 25 m indoor
Speed: up to 250kbps
Standard no encryption, optional 256-bit AES encryption
Power Supply
Min 4.5V, Max 6.6V
Power Consumption
200 mA
Operating Environment
-10 ~ 50°C
RH 20-85% non condensing
Storage Environment
-20 ~ 60°C
RH 20-85% non condensing
EMC/Safety Standards
CE, FCC, RoHS, REACH, EN60950-1, IEC 60950-1, EN55022, EN55024
External Dimensions (WxDxH)
145.1 x 32.4 x 110.1 mm
Weight
Approx. 250g
