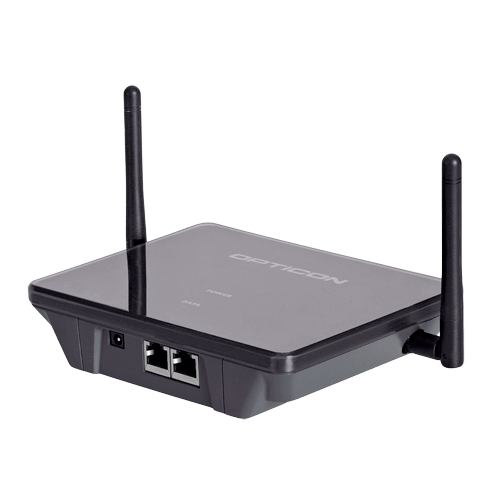

OPTICON EBS-40 Base Station for Electronics Shelf Labels

(Product may vary from image. Rely only on description for purchasing decisions.)

The EBS-40 has an extremely low power consumption. The base station communicates over a 802.15.4 based protocol. Up to 2,500 ESL labels can be connected to a single base station (with EE-201 and default ESL settings). This can even be increased by using longer poll intervals. The two Ethernet ports enable easy daisy chaining.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • ESL Base Station
  • IEEE 802.15.4 based Protocol
  • Low power comsumption
  • Typ. 25m Communication Range (indoor)
  • 2 Ethernet Ports
  • Easy Daisy Chaining
NameSizeDownload
Brochure52kb opebs40_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
Cortex M4 32-bit MCU
Clock Speed 120MHz
Memory
Internal FlashROM: 512Kb
Internal RAM: 256Kb
External RAM: 8 Mb
Audio
N/A
Display
N/A
I/O Ports
2 x Ethernet Ports 10/100 Mbit/sec, half duplex & full duplex
Communication Type
Wireless IEEE 802.15.4
Communication Technology
IEEE 802.15.4
2.4GHz 16 channels (2405-2480 MHz)
Range Typical 25 m indoor
Speed: up to 250kbps
Standard no encryption, optional 256-bit AES encryption
Power Supply
Min 4.5V, Max 6.6V
Power Consumption
200 mA
Operating Environment
-10 ~ 50°C
RH 20-85% non condensing
Storage Environment
-20 ~ 60°C
RH 20-85% non condensing
EMC/Safety Standards
CE, FCC, RoHS, REACH, EN60950-1, IEC 60950-1, EN55022, EN55024
External Dimensions (WxDxH)
145.1 x 32.4 x 110.1 mm
Weight
Approx. 250g
