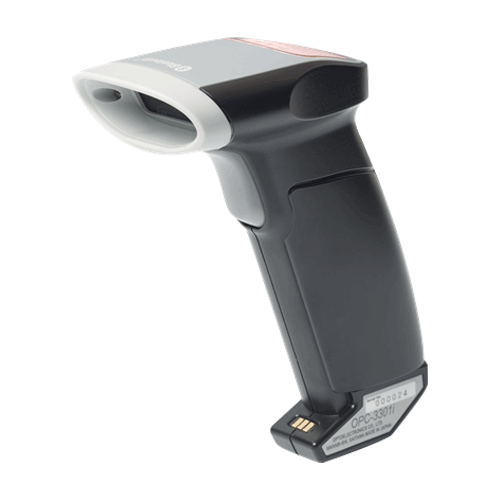

OPTICON C-3301i 1D Cordless Bluetooth Scanner Black

(Product may vary from image. Rely only on description for purchasing decisions.)
  • OPC3301BTB
  • 13724
  • OPTICON
  • OPC3301
    • Login to view pricing and availability

C-3301i 1D Cordless Bluetooth Scanner, Scanner only

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Low cost Cordless Handheld 1D Imager
  • Bluetooth ver. 2.1
  • Up to 10 m Range
  • Small form factor
  • up to 300 Scans/sec
  • Long operating time on battery charge
  • Ultra-lightweight, yet solid scanner withstands drops up to 1.5 meter onto concrete
NameSizeDownload
Brochure102kb opc-3301i_brochure.pdf
USB Drivers Installer2,398kb OPT_USB Drivers Installer.exe

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
1202gVoyager 1202g Cordless Laser Scanner
IT3820IT-3820 Wireless Linear imager scanner
MS9535MS-9535 VoyagerBT ™ Bluetooth Cordless Laser Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
CCD linear image sensor
Light Source
Red LED 624 nm
Scan Pattern
Single Line
Scan Rate
300 scans/sec
Motion Tolerance
N/A
Image Capture
N/A
Capture Area
N/A
Contrast Ratio
N/A
Resolution
0.102 mm / 4 mils (Linear Barcodes)
Depth of field
Code 39:
5 mils - 5.5 to 7.5 cm
6 mils - 4.5 to 10.0 cm
10 mils - 3.5 to 17.5 cm
20 mils - 4.0 to 30.0 cm
30 mils - 6.0 to 50.0 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
+/- 25°
Pitch Angle
+/- 50°
Skew Angle
+/- 65°
Ambient Light Immunity
Fluorescent 10,000 Lux Max.
Direct Sun 100,000 Lux Max.
Symbologies supported
1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), GS1 DataBar Limited, GS1 DataBar Expanded, Code 11, IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSM-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic,UK/Plessey
Postal Code: Chinese Post, Korean Postal Authority code
Programming Method
Scan codes in Manual
Driver available
JavaPOS, OPOS Utilities
Indicators
Multi Colour LED (red/green/blue)
Buzzer
Operating Modes
Trigger
Communication Type
Bluetooth cordless
Communication Technology
Bluetooth Ver. 2.1 SPP/HID, output Class 2,
Range up to 10 m
1 to 1 Connection to Bluetooth enabled Device
Master/Slave mode
Authentication & encryption
Interfaces
N/A
Supply Voltage
6 VDC to Charging Base
Battery: Li-ion 1100mAh, Charge time on Charging base 3 Hrs at 6V
Operating Time: approx. 48 Hours at 1 Scan/5 Sec, Approx. 72 Hours Stand by
Power Consumption
15mA Standby, Max.200 mA
Drop Specification
Designed to withstand repeated 1.5m drops to concrete
Vibration Test 10-100Hz with 2G for 1 Hour
Environmental Sealing
IP42
ESD Protection
N/A
Operating Environment
0° ~ 50°C, Relative Humidity 20 - 85% none condensing
Storage Environment
-20° ~ 60°C, Relative Humidity 20 - 85% none condensing
EMC/Safety Standards
CE, FCC, VCCI, MFi, RoHS, IEC62471, IEC60950-1
External Dimensions (WxDxH)
Scanner: 113 x 56 x 132 mm
Weight
Scanner 127 g
Base 144 g
