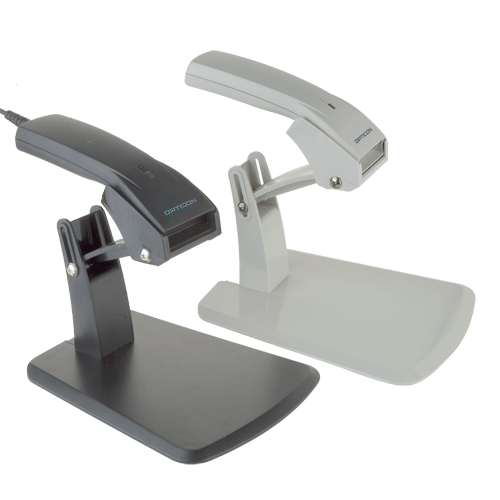

OPTICON 6845R Laser Scanner *** Obsolete ***

(Product may vary from image. Rely only on description for purchasing decisions.)

This small 1D barcode reader features a compact and lightweight design. The OPL6845R scans 100 times per second. This high performance laser scanner provides a fast and accurate scan, even when barcodes are printed with low contrast.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • The OPL6845R fits naturally in your hand, however can also be used for hands-free scanning.
  • The integrated auto trigger mode together with the dedicated stand enables hands-free operation, improving productivity of your staff.
  • The large base plate provides a stable position and a clear working spot on the desktop.
  • Flexible: The OPL6845R uses very little counter space and blends well with other office furniture, as it is available in black and white.
  • The OPL6845R is ruggedized enough withstand drops of 1.5 meter onto concrete.
  • Plug & play: Available in USB, RS232 and Keyboard Wedge connectivity options, the OPL6845R can be easily integrated into any host computer system as a plug and play device.
NameSizeDownload
Brochure249kb opl6845r_brochure.pdf
Setup Guide229kb op_basic_setup_guide.zip
Barcode Reference Manual554kb op_barcode_ref_manual.zip
USB Drivers Installer2,398kb OPT_USB Drivers Installer.exe

Products available to purchase

 SKUVendorName
AD-OP6VR10P1.7 OPTICONPlug Pack 6V Reg. 1 Amp Ctr Pos 1.7mm

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Light Source
650 nm visible laser diode
Depth of field
40 - 500 mm (res. 1.0 mm / 39 mil),
20 - 350 mm (res. 0.5 mm / 20 mil)
20 - 200 mm (res. 0.25 mm / 10 mil)
20 - 100 mm (res. 0.15 mm / 6 mil)
30 - 70 mm (res. 0.127 mm / 5 mil)
at PCS 0.9, Code 39
Scan Rate
100 Scans/sec
Resolution
0.127 mm / 5 mil
Pitch Angle
-35 to 0°, 0 to +35°
Tilt Angle
-20 to 0°, 0 to +20°
Skew Angle
-50 to -8°, +8 to +50°
Indicators
1 LED (red/green/orange)
Interfaces
RS232 - DB9 PTF connector with external power supply
Keyboard Wedge - MiniDIN6 F/M connector
USB - Ver. 1.1, HID/VCP, USB-A connector
Symbologies supported
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey, Composite codes, MicroPDF417, PDF417
Drop Specification
1.5 m / 5 ft drop onto concrete surface
Vibration Test
10 - 100 Hz with 2G for 1 hour
Environmental Sealing
IP42
Supply Voltage
5 V ± 10 % (Keyboard Wedge and USB), 6 V (min. 4.5, max. 6.5 V) (RS232)
Power Consumption
Max. 100 mA (typical use)
Operating Environment
-5 to 50 °C
RH 5 - 95 % (non-condensing)
Storage Environment
-20 to 60 °C
RH 5 - 95 % (non-condensing)
External Dimensions (WxDxH)
Scanner 56 x 149 x 109 mm
Stand 146 x 106 x 295 mm
Weight
Scanner 80 g (excl. Cable)
Stand 385 g
Product Compliance
CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
