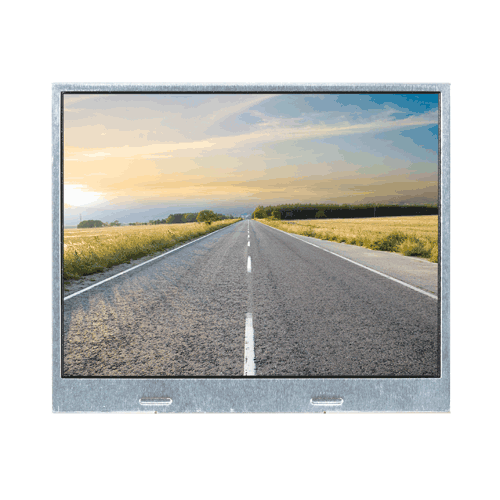

OPTICON 3.5" TFT Full Colour Display 320x240 pixels

(Product may vary from image. Rely only on description for purchasing decisions.)
  • OPET350
  • 13698
  • OPTICON
  • OPET350
    • Login to view pricing and availability

3.5" TFT Full Colour Display 320x240 pixels

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Colour display
  • 3.5" TFT LCD display 320 x 240 pixels
  • USB Powered
  • Low power comsumption
NameSizeDownload
No Downloads

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
RX62N 32-bit MCU
Clock Speed 96MHz
Real Time Clock: Supports Yr, Mth, Day, Hr, Min, Sec (Leap year Support)
Memory
Internal FLASH ROM: 512Kb + 32Kb
Internal RAM: 96Kb
SRAM: 8Mb
NAND FLASH: 128Mb
Audio
N/A
Display
3.5" Colour TFT LCD 320 x 240 pixels (WxH)
Active Area: 70.08 x 52.56 mm (WxH)
Backlight: White LED
Communication Type
USB
Communication Technology
USB Ver2.0 full speed, VCP
Power Supply
4.75 - 5.25V through USB
Power Consumption
Max. 200 mA
Environmental Sealing
N/A
Operating Environment
10 ~ 50°C
RH 20-85% non condensing
Storage Environment
-20 ~ 60°C
RH 20-85% non condensing
EMC/Safety Standards
CE, FCC, RoHS
External Dimensions (WxDxH)
76.9 x 9.0 x 63.9 mm
Weight
Approx. 52g
