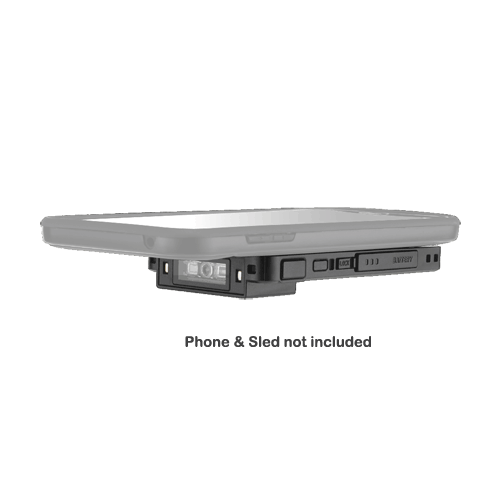

KOAMTAC KDC470Li 1D Laser Barcode Scanner Smartsled

(Product may vary from image. Rely only on description for purchasing decisions.)
  • KDC470Li
  • 356820
  • KOAMTAC
  • KDC470
    • Login to view pricing and availability

KDC470Li 1D Laser Barcode Scanner Smartsled

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • 1D Laser or CCD or 2D Imager models
  • Decodes all major 1D, 2D symbologies and OCR-A/B depending on Scan engine
  • Class2 Bluetooth® Communications
  • User replaceable custom housing for Smartphones and Tablets
  • Rechargeable Li-Ion battery with user-accessible compartment for easy replacement
NameSizeDownload
Brochure181kb kdc470_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
KDC400KDC-400 Series Barcode/MSR SLED for Smart Phones
SL22Captuvo Enterprise Sled

Parts documents

Parts layout details

Specifications
Processor
NA
Development Environment
SDK for PC and Smartphone application
Operating Platform
Proprietory
Real-Time Clock
NA
Sensors
NA
Memory
Flash ROM: 256KB Program, 8MB user Data
RAM: 64 KB
Memory Expansion
N/A
Scan Engine
Laser scan Engine, Scan range: 50-420mm
or CCD Linear Scan Engine, Scan range: 60-460mm
or 2D Imager, Scan range: 60-466mm
Bar-code Type
Laser 1D:
EAN/UPC, Code 39, Code 93, Code 128, Interleaved 2 of 5, Codabar, GS1-128, Code 3 of 5
CCD 1D:
UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128, GS1 Databar (RSS) excl stacked, IATA, Industrial 2 of 5, Interleaved 2 of 5, IBSN-ISNN-ISMN, Matrix 2 of 5, MSI/Plessey, S-Code, Telepen, Tri-optic, UK/Plessey
Imager 2D:
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128, GS1 Databar (RSS), IATA, Industrial 2 of 5, Interleaved 2 of 5, IBSN-ISNN-ISMN, Matrix 2 of 5, MSI/Plessey, S-Code, Telepen, Tri-optic, UK/Plessey
Barcode 2D: Aztec Code, Aztec Runes, Chinese Sensible Code, Codablock F, Composite Codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code, MicroPDF417, Micro QR Code, PDF417, QR Code
Postal Code: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority Code, POSTNET
Keyboards
scan Button
Audio
Buzzer
Display
NA
Camera
N/A
I/O Ports
Build in Micro USB port
Radio Options
Bluetooth® V2.1+EDR, Class 2, HID/SPP/MFi
Battery
Rechargeable battery: Lithium-Ion Polymer 3.7V 1130mAh
Battery Life
N/A
Environmental Sealing
IP65
Mechanical Shock
Withstands drops from 1.5 m onto concrete
ESD Protection
N/A
External Dimensions (WxDxH)
65 x 105 x 15.8 mm (w/o Case)
Weight
87g with Battery
Operating Environment
-20 ~ 50°C
RH 5-95% non condensing
Storage Environment
-20 ~ 60°C
RH 5-95% non condensing
Product Compliance
C-Tick, CE, FCC, EMI/RFI, TELEC,
Laser Safety: IEC 60825-1 Class 2, FDA CDRH Class II
LED Safety: IEC62471:2006
Electrical Safety: UL60950-1, EN/IEC60950-1, EN/IEC 60825-1
