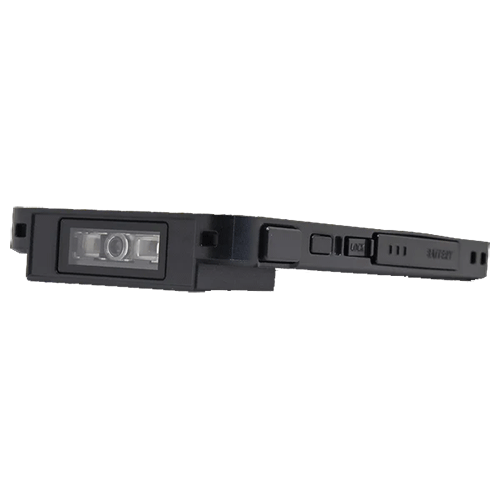

KOAMTAC KDC-480 Series Bluetooth Barcode Sled Series

(Product may vary from image. Rely only on description for purchasing decisions.)

Whether you need to read barcodes or RFID tags this is the KDC for you. The KDC480 and KDC485 are rugged devices with an IP65 rating and are built to last. No matter what type of data you need to collect or how you need to collect it, there is a companion module to get the job done quickly and accurately. Charge your device with our unique charging cases and never miss a minute of productivity. Attach to ANY Smartphone or Tablet

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • 1D Laser or CCD or 2D Imager models
  • Decodes all major 1D, 2D symbologies and OCR-A/B depending on Scan engine
  • Bluetooth® Low Energy 5.0 Communications
  • User replaceable custom housing for Smartphones and Tablets
  • Rechargeable Li-Ion battery with user-accessible compartment for easy replacement
  • Options available: Pistol Grip, Extended Battery Pack, MSR/IC Card reader or mPOS card capabilities
NameSizeDownload
Brochure720kb kdc480_485_brochure.pdf

Products available to purchase

 SKUVendorName
KDC480Ci-BLE KOAMTACKDC480C 2D Imager Barcode SmartSled
KDCBD401K KOAMTACBluetooth Dongle Spec.4.0 Class 1 for KDC
KDC4SL-IP7 KOAMTACiPhone7 Otterbox Defender module for KDC4xxx
KDCPROLANYARD KOAMTACKDC Professional Safety Lanyard

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
NA
Development Environment
SDK for PC and Smartphone application
Operating Platform
Proprietory
Real-Time Clock
NA
Sensors
NA
Memory
Flash ROM: 256KB Program, 8MB user Data
RAM: 64 KB
Memory Expansion
N/A
Scan Engine
KDC480L: Laser scan Engine, Scan range: 50-460mm
KDC480D: CCD Linear Scan Engine, Scan range: 50-460mm
KDC480C: 2D Imager, Scan range: 60-466mm
Bar-code Type
Laser/CCD (1D):
EAN-13, EAN-8, UPC-A, UPC-E, Code 39, ITF14, Code 128, Interleaved 2 of 5, Codabar, GS1-128, Code 93, Code 35, Bookland EAN-13, EAN-13/8 incl. add on, UPC-A/E incl. add on, GS1 Omni, GS1 Limited, GS1 Expanded
Imager (1D):
Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, Telepen, Tri-Optic, UPC-A, UPC-E0, UPC-E1
Imager (2D):
Aztec Code, Aztec Runes, Codablock F, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
Postal Codes: POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post
MRZ: Supported
Keyboards
scan Button
Audio
N/A
Display
N/A
Camera
N/A
I/O Ports
USB Type-C: USB HID, USB Serial (Android with an integrated case)
Lightning: Serial (iOS with an integrated case)
Radio Options
Bluetooth® Low Energy 5.0: HID (Android/iOS/Windows), SPP (Optional Secure Mode)
Battery
Rechargeable battery: Lithium-Ion Polymer 3.7V 1100mAh
Battery Life
N/A
Environmental Sealing
IP65
Mechanical Shock
Withstands drops from 1.5 m onto concrete
ESD Protection
N/A
External Dimensions (WxDxH)
65 x 105 x 15.8 mm (w/o Case)
Weight
87g with Battery
Operating Environment
-20 ~ 50°C
RH 5-95% non condensing
Storage Environment
-20 ~ 60°C
RH 5-95% non condensing
Product Compliance
R&TTE, RED, FCC, KC, J-MIC, VCCI, SRRC, RoHS Compliant
Laser Safety: IEC60825/CDRH Class II
LED Safety: IEC62471:2006
