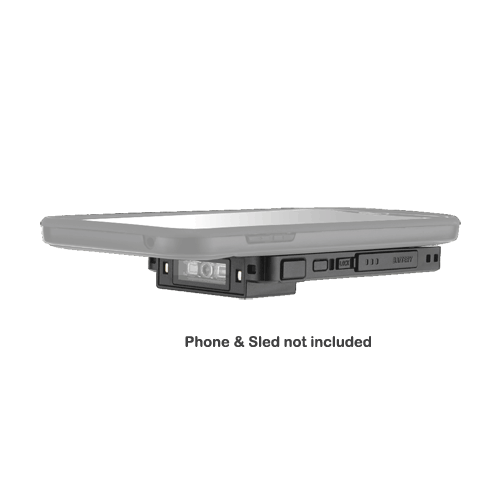

KOAMTAC KDC-470 Series Bluetooth Barcode Sled

(Product may vary from image. Rely only on description for purchasing decisions.)

The KDC470 enables diverse mobile Auto-Identification applications to collect data via barcode, RFID, OCR, and payment applications via USB/Serial and Bluetooth® connections to various smartphones and tablets. This IP65-rated scanner is built to withstand dust and water in even the most rugged environments. KOAMTAC’s innovative modular technology and user-friendly design allow users to upgrade the smartphone periodically while maintaining the KDC470 system. An easily replaceable 1130mAh rechargeable battery and/or an optional extended battery package can be used as an external power source for smartphones.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • 1D Laser or CCD or 2D Imager models
  • Decodes all major 1D, 2D symbologies and OCR-A/B depending on Scan engine
  • Class2 Bluetooth® Communications
  • User replaceable custom housing for Smartphones and Tablets
  • Rechargeable Li-Ion battery with user-accessible compartment for easy replacement
NameSizeDownload
Brochure181kb kdc470_brochure.pdf

Products available to purchase

 SKUVendorName
KDC470C-GTA2 KOAMTACKDC470C 2D Imager Smartsled with TabActive2 Case
KDC470Ci-IP7P KOAMTACKDC470Ci 2D Imager smartsled with Iphone 7 Plus Case
KDC470Ci-BLE KOAMTACKDC470Ci-BLE 2D Imager Barcode Smartsled
KDC470Di KOAMTACKDC470Di 1D CCD Barcode Scanner Smartsled
KDC470Di-IP7P KOAMTACKDC470Di CCD Smartsled with Iphone 7 Plus Case
KDC470Di-BLE KOAMTACKDC470Di-BLE 1D CCD Barcode Smartsled
KDC470D-XCOV4S KOAMTACKDC470Di-BLE with XCover4S SmartSled
KDC470D-GTA2 KOAMTACKDC470L CCD Smartsled with TabActive2 Case
KDC470L-GTA2 KOAMTACKDC470L Laser Smartsled with TabActive2 Case
KDC470Li KOAMTACKDC470Li 1D Laser Barcode Scanner Smartsled
KDC475Hi-BLE KOAMTACKDC475Hi 2D Imager Angled Barcode Smartsled

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
KDC400KDC-400 Series Barcode/MSR SLED for Smart Phones
SL22Captuvo Enterprise Sled

Parts documents

Parts layout details

Specifications
Processor
NA
Development Environment
SDK for PC and Smartphone application
Operating Platform
Proprietory
Real-Time Clock
NA
Sensors
NA
Memory
Flash ROM: 256KB Program, 8MB user Data
RAM: 64 KB
Memory Expansion
N/A
Scan Engine
Laser scan Engine, Scan range: 50-420mm
or CCD Linear Scan Engine, Scan range: 60-460mm
or 2D Imager, Scan range: 60-466mm
Bar-code Type
Laser 1D:
EAN/UPC, Code 39, Code 93, Code 128, Interleaved 2 of 5, Codabar, GS1-128, Code 3 of 5
CCD 1D:
UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128, GS1 Databar (RSS) excl stacked, IATA, Industrial 2 of 5, Interleaved 2 of 5, IBSN-ISNN-ISMN, Matrix 2 of 5, MSI/Plessey, S-Code, Telepen, Tri-optic, UK/Plessey
Imager 2D:
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128, GS1 Databar (RSS), IATA, Industrial 2 of 5, Interleaved 2 of 5, IBSN-ISNN-ISMN, Matrix 2 of 5, MSI/Plessey, S-Code, Telepen, Tri-optic, UK/Plessey
Barcode 2D: Aztec Code, Aztec Runes, Chinese Sensible Code, Codablock F, Composite Codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code, MicroPDF417, Micro QR Code, PDF417, QR Code
Postal Code: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority Code, POSTNET
Keyboards
scan Button
Audio
Buzzer
Display
NA
Camera
N/A
I/O Ports
Build in Micro USB port
Radio Options
Bluetooth® V2.1+EDR, Class 2, HID/SPP/MFi
Battery
Rechargeable battery: Lithium-Ion Polymer 3.7V 1130mAh
Battery Life
N/A
Environmental Sealing
IP65
Mechanical Shock
Withstands drops from 1.5 m onto concrete
ESD Protection
N/A
External Dimensions (WxDxH)
65 x 105 x 15.8 mm (w/o Case)
Weight
87g with Battery
Operating Environment
-20 ~ 50°C
RH 5-95% non condensing
Storage Environment
-20 ~ 60°C
RH 5-95% non condensing
Product Compliance
C-Tick, CE, FCC, EMI/RFI, TELEC,
Laser Safety: IEC 60825-1 Class 2, FDA CDRH Class II
LED Safety: IEC62471:2006
Electrical Safety: UL60950-1, EN/IEC60950-1, EN/IEC 60825-1
