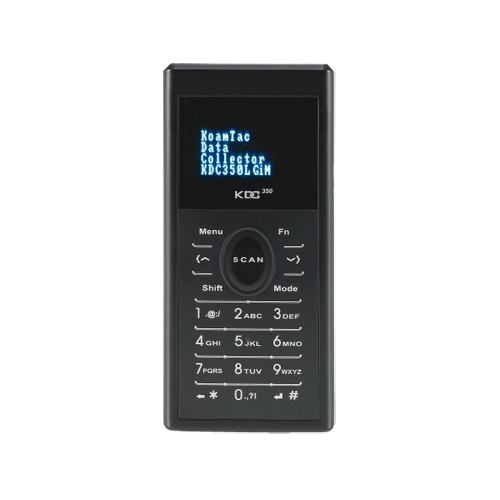

KOAMTAC KDC-350 Bluetooth Laser Barcode Data Collector with Keyboard and Display ***obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The KDC350 enables diverse mobile Auto-Identification applications for collecting and storing barcode data. A built-in display and keypad eliminate blind erroneous data collection and enable interactive data collection processes. An easy-to-replace rechargeable battery that can recharge from any USB port allows more than 25,000,000 barcode scans. With 4MB of on-board memory that stores over 100,000 product databases, memory shortages are also no longer a problem.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • 1D Laser (Normal & Long Range) and 2D Imager Models
  • Decodes all major 1D, 2D symbologies and OCR-A/B depending on Scan engine
  • Bluetooth V2.1+EDR, Class 2, HID/SPP/MFi
  • Bright 1" OLED display
  • Optional full integration with IOS (MFI)
  • 48 Channel GPS Receiver (Optional)
  • NFC (Optional)
  • 19 Key Keypad
  • Rechargeable Li-ion battery with user-accessible compartment for easy replacement
  • Large data memory (4MB)
  • Powerful Keyboard emulator with keyboard wedging, application generation, DB look up and inventory program.
NameSizeDownload
Brochure217kb kdc350_brochure.pdf
Windows Driver1,225kb KDC_Device.Driver.zip
KTSync Windows XP/Vista/7/8 Standard308kb KDC_KTSync_V209TC.zip

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
ARM7 32-bit
Development Environment
SDK for PC, Pad and Smartphone application
Application generation tool
Database lookup feature
Inventory management feature
Operating Platform
Proprietory
Real-Time Clock
Quartz RTC for timestamp
Sensors
Optional NFC Sensor; MIFARE Ultralight, MIFARE Ultralight C tag
Memory
Flash ROM: 256KB Program, 4MB user Data
RAM: 64 KB
Memory Expansion
N/A
Scan Engine
Laser scan Engine, choice of Opticon, Honeywell or Motorola
or Honeywell 2D Imager (choice of SR & SF)
Bar-code Type
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128, Interleaved 2 of 5, Code 3 of 5
Keyboards
19 Alphanumeric keys including scan & Scroll buttons
Audio
Buzzer
Display
Bright 1" OLED Display
Camera
N/A
I/O Ports
Build in Ultra Mini USB port
Radio Options
Bluetooth® V2.1+EDR, Class 2, HID/SPP/MFi
Optional GPS; PT9250 48 channel
Battery
Rechargeable battery: Lithium-Ion Polymer 3.7V 1200mAh
Battery Life
N/A
Environmental Sealing
IP65
Mechanical Shock
Withstands drops from 1.5 m onto concrete
ESD Protection
N/A
External Dimensions (WxDxH)
43 x 94 x 24 mm
Weight
85g with Battery
Operating Environment
-10 ~ 50°C
RH 5-90% non condensing
Storage Environment
-20 ~ 60°C
RH 5-90% non condensing
Product Compliance
C-Tick, CE, FCC, MIC, TELEC,
Laser Safety: IEC 60825-1 Class 2, FDA CDRH Class II
