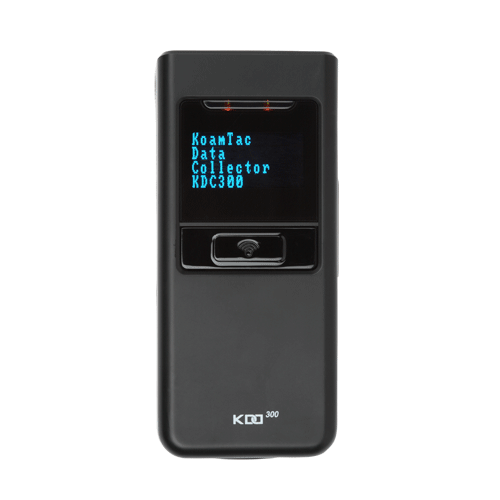

KOAMTAC KDC-300 Bluetooth 2D Barcode Data Collector with Display ***obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The KDC-300 enables diverse mobile Auto-Identification applications for collecting and storing barcode data. Bluetooth communications, Adaptus 5 2D Imaging Scanners either Standard range or Special Focus. A built-in display eliminates blind erroneous data collections and enables interactive data collection processes. An easy-to-replace rechargeable battery that can recharge from any USB port.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • SR or SF 2D Adaptus 5 Imaging Engine
  • Decodes all major 1D, 2D symbologies and OCR-A/B
  • Superior scanning performance with the top of the line imager scan engine
  • Bluetooth V2.1+EDR, Class 2, HID/SPP/MFi
  • Bright 1" OLED display
  • Optional full integration with IOS (MFI)
  • Rechargeable Li-ion battery with user-accessible compartment for easy replacement
  • Large data memory (Basic 160KB, Optional 4MB)
  • Powerful Keyboard emulator with keyboard wedging, application generation, DB look up and inventory program.
NameSizeDownload
Brochure245kb kdc300_brochure.pdf
Windows Driver1,225kb KDC_Device.Driver.zip
KTSync Windows XP/Vista/7/8 Standard308kb KDC_KTSync_V209TC.zip

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
ARM9 32-bit
Development Environment
SDK for PC, Pad and Smartphone application
Application generation tool
Database lookup feature
Inventory management feature
Operating Platform
Proprietory
Real-Time Clock
Quartz RTC for timestamp
Memory
Standard Flash ROM: 160KB Optional 4MB
RAM: 64 KB
Memory Expansion
N/A
Scan Engine
Image Sensor : 752 x 480 CMOS sensor (Adaptus 5.0 Technology)
Scan Range:
SR: 53~335mm SF: 51~226mm
Bar-code Type
Barcode (1D):
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128, Interleaved 2 of 5, Code 3 of 5, MSi, Plessey, Posicode, GS1 DataBar Omni, GS1 DataBar limited, GS1 DataBar expanded, S2of5IA, S2of5ID, TLC39, Telepen, Trioptic
Barcode (2D):
AztecCode, AztecRunes, CodablockF, Code 16K, Code49, DataMatrix, MaxiCode, MicroPDF, PDF417, QRCode, HanXin Code
Postal Codes:
AusPost, CanadaPost, ChinaPost, JapanPost, KoreaPost, KixPost, Planet Code, Postnet (US), UKPost
OCR Fonts:
OCR-A, OCR-B, OCRUSCurrency, OCRMICRE13BB, OCRSEMIFONT
Keyboards
3 keys total, 2 navigation keys, 1 scan key
Audio
Buzzer
Display
Bright 1" OLED Display
Camera
N/A
I/O Ports
Build in Ultra Mini USB port
Radio Options
Bluetooth® V2.1+EDR, Class 2, HID/SPP
Battery
Rechargeable battery: Lithium-Ion Polymer 3.7V 650mAh
Battery Life
N/A
Environmental Sealing
N/A
Mechanical Shock
Withstands drops from 1.2 m onto concrete with Rubber case
ESD Protection
N/A
External Dimensions (WxDxH)
37 x 83 x 21 mm
Weight
54g with Battery
Operating Environment
0 ~ 45°C
RH 5-85% non condensing
Storage Environment
-20 ~ 45°C
RH 5-85% non condensing
Product Compliance
C-Tick, CE, FCC, EMC, TELEC
