KOAMTAC KDC-30 Bluetooth 2D Barcode Data Collector ***obsolete***

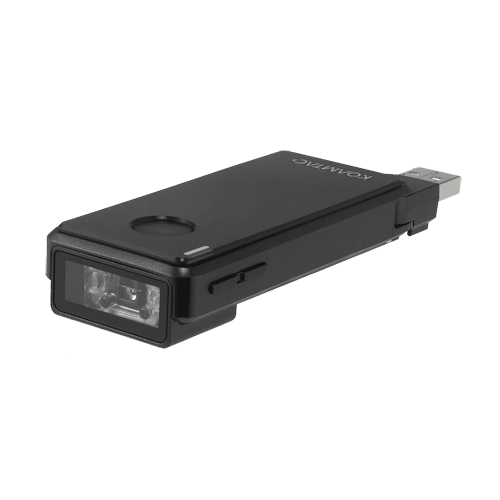

(Product may vary from image. Rely only on description for purchasing decisions.)

The KDC30 Bluetooth barcode scanner is an ultra-lightweight and compact 2D imager scan engine. It is complete with Class2 Bluetooth HID/SPP/MFi (optional) profiles. The unique design of the KDC30 includes a swing out USB that is fast and convenient. Users may store up to 10,240+ product records.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • 2D Imager Bluetooth Barcode Scanner
  • Supports all major 1D, 2D symbologies and OCR
  • Superior scanning performance with the top of the line imager scan engine
  • Ultra Compact & Lightweight
  • Bluetooth V2.1+EDR, Class 2, HID/SPP/MFi
  • Built in swing-out USB connector
  • Rechargeable Li-ion battery with user-accessible compartment for easy replacement
  • Powerful keyboard emulator with keyboard wedging, application generation, DB look up and inventory program.
  • Optional vibrating and backup battery for the real time clock
  • KOAMTAC provides complimentary KTSync synchronization and wedging software for Android, Blackberry, iOS, Mac OS X and Windows devices.
NameSizeDownload
Brochure239kb kdc30_brochure.pdf
Windows Driver1,225kb KDC_Device.Driver.zip
KTSync Windows XP/Vista/7/8 Standard308kb KDC_KTSync_V209TC.zip

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
ARM11 32-bit
Development Environment
SDK for PC, Pad and Smartphone application
Application generation tool
Database lookup feature
Inventory management feature
KTSync® with Keyboard Wedging feature
Operating Platform
Proprietory
Real-Time Clock
Quartz RTC for timestamp
Memory
Standard Flash ROM: 256KB
RAM: 64 KB
Memory Expansion
N/A
Scan Engine
Image Sensor : 1280 x 960 CMOS sensor
Scan Range: 4 ~ 27cm
Bar-code Type
Barcode (1D):
EAN8, EAN13, Codabar, Code 11, Code 39, Code 32, Code 128, GS1-128, Interleaved 2 of 5, MSi, Plessey, Posicode, GS1 DataBar 14, GS1 DataBar 14 Stacked, GS1 DataBar limited, GS1 DataBar expanded, GS1 DataBar expanded stacked, S2of5IA, S2of5ID, Telepen, Trioptic, UPCA, UPCE, Pharmacode
Barcode (2D):
AztecCode, Codablock, DataMatrix, MaxiCode, MicroPDF, PDF417, QRCode, Micro QR Code HanXin Code
Postal Codes:
AusPost, JapanPost, KoreaPost, KixPost, Planet Code, Postnet (US), Intelligent Mail
OCR Fonts:
OCR ISBN, OCR Price, OCR Passport, OCR MICR13
Keyboards
3 keys total, 2 navigation keys, 1 scan key
Audio
Buzzer
Display
N/A
Camera
N/A
I/O Ports
Swing out USB Type A Connector
Radio Options
Bluetooth® V2.1+EDR, Class 2, HID/SPP/Optional MFi
Battery
Rechargeable battery: Lithium-Ion Polymer 3.7V 650mAh
Battery Life
N/A
Environmental Sealing
N/A
Mechanical Shock
Withstands drops from 1.2 m onto concrete with Rubber case
ESD Protection
N/A
External Dimensions (WxDxH)
38 x 83.5 x 18 mm
Weight
50.5g with Battery
Operating Environment
0 ~ 45°C
RH 5-85% non condensing
Storage Environment
-20 ~ 45°C
RH 5-85% non condensing
Product Compliance
C-Tick, CE, FCC, VCCI, TELEC
