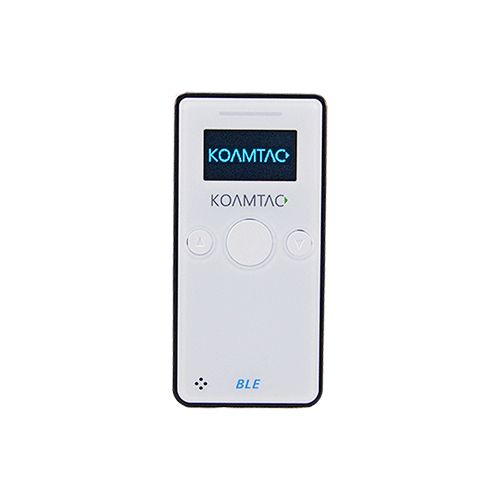

KOAMTAC KDC-280 Bluetooth Low Energy Data Collector Series, with Display

(Product may vary from image. Rely only on description for purchasing decisions.)

KDC280 Bluetooth Low Energy (BLE) Barcode Scanner & Data Collector.The KDC280 enables diverse mobile Auto-Identification applications for collecting and storing barcode data. The newest model to the KDC family features Bluetooth Low Energy (BLE) to enable faster and simpler connection methods as well as use with smartwatches, smartglasses, and other wearable smart devices.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Bluetooth Low Energy (BLE) device
  • Available withLaser or CCD or 2D Imager Scanner
  • Build In Display
  • Scan and scroll keys
  • A easy replaceable rechargeable battery
  • up to 17,000 barcode scans with a 1-second interval per charge
  • 8MB of onboard memory that stores over 400,000 UPC product barcodes or 60,000 product database records
NameSizeDownload
Brochure172kb kdc280_brochure.pdf
Quick Setup Guide1,230kb KDC270-KDC280-Quick-Guide.pdf
Mini Setup Guide1,986kb KDC280_Mini-Guide.pdf

Products available to purchase

 SKUVendorName
KDC280D-BLE KOAMTACKDC280L-BLE 1D CCD Bluetooth Scanner & Data Col
KDC280L-BLE KOAMTACKDC280L-BLE 1D Laser Bluetooth Scanner & Data Col
KDC280C-BLE KOAMTACKDC280L-BLE 2D Bluetooth Scanner & Data Collector
KDCBD401K KOAMTACBluetooth Dongle Spec.4.0 Class 1 for KDC
KDC270FTLL KOAMTACKDC270 Finger Trigger Glove Left Large Size
KDC270FTLM KOAMTACKDC270 Finger Trigger Glove Left Medium Size
KDC270FTLS KOAMTACKDC270 Finger Trigger Glove Left Small Size
KDC270FTRL KOAMTACKDC270 Finger Trigger Glove Right Large Size
KDC270FTRM KOAMTACKDC270 Finger Trigger Glove Right Medium Size
KDC270FTRS KOAMTACKDC270 Finger Trigger Glove Right Small Size

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
KDC20KDC-20 Bluetooth Laser Barcode Data Collector
KDC200KDC-200 Bluetooth Laser Barcode Data Collector
KDC250KDC-250 Bluetooth Laser Barcode Data collector
KDC30KDC-30 Bluetooth 2D Barcode Data Collector
KDC300KDC-300 Bluetooth 2D Barcode Data Collector with Display

Parts documents

Parts layout details

Specifications
Processor
NA
Development Environment
SDK for PC and Smartphone application
Application Generation Tool
Database Lookup and Inventory Management Features
Operating Platform
Proprietory
Real-Time Clock
NA
Sensors
NA
Memory
Flash ROM: 256KB Program, 8MB user Data
RAM: 64 KB
Memory Expansion
N/A
Scan Engine
Laser scan Engine, Scan range: 50-190mm
or CCD Linear Scan Engine, Scan range: 55-300mm
or 2D Imager, Scan range: 46-246mm
Bar-code Type
Laser (1D): EAN-13, EAN-8, UPC-A, UPC-E, Code 39, ITF14, Code 128, Interleaved 2 of 5, Codabar, GS1-128, Code 93, Code 35, Bookland EAN-13, EAN-13/8 incl. add on, UPC-A/E incl. add on, GS1 Omni, GS1 Limited, GS1 Expanded
CCD (1D): EAN-13, EAN-8, UPC-A, UPC-E, Code 39, ITF14, Code 128, Interleaved 2 of 5, Codabar, GS1-128, Code 93, Code 35, Bookland EAN-13, EAN-13/8 incl. add on, UPC-A/E incl. add on, GS1 Omni, GS1 Limited, GS1 Expanded
Imager (1D): Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, Telepen, Tri-Optic, UPC-A, UPC-E0, UPC-E1
Imager (2D): Aztec Code, Aztec Runes, Codablock F, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code Postal Codes: POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post OCR Options: OCR Passport
Keyboards
Scan Button and 2 Navigation Buttons
Audio
Buzzer
Display
1" OLED Display
Camera
N/A
I/O Ports
Build in Micro USB port
Radio Options
Bluetooth® Low Energy
Battery
Rechargeable battery: Lithium-Ion Polymer 3.7V 650mAh
Charging via Micro USB or Charging Cradle
Battery Life
N/A
Environmental Sealing
IP65
Mechanical Shock
Withstands drops from 1.5 m onto concrete
ESD Protection
N/A
External Dimensions (WxDxH)
40 x 82 x 18 mm
Weight
57.5g with Battery
Operating Environment
-10 ~ 50°C
RH 5-95% non condensing
Storage Environment
-20 ~ 60°C
RH 5-95% non condensing
Product Compliance
R&TTE, FCC, KC, TELEC, VCCI, SRRC, RoHS Compliant Laser Safety: IEC60825/CDRH Class II LED Safety: IEC62471:2006
