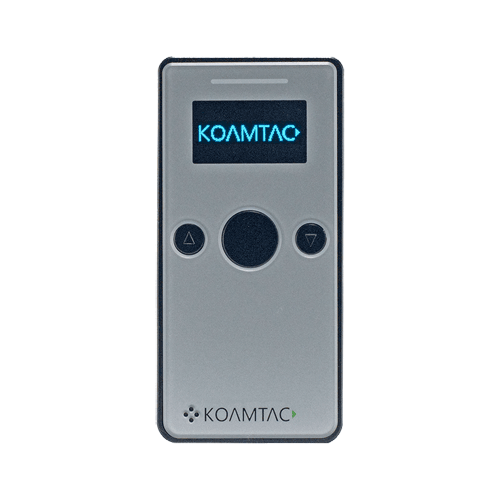

KOAMTAC KDC-270 Bluetooth Barcode Collector Laser Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)
  • KDC270Li
  • 249100
  • KOAMTAC
  • KDC270
    • Login to view pricing and availability

KDC270Li 1D Laser Bluetooth Barcode Scanner & Data Collector

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Bluetooth Data Collector
  • Laser, CCD or 2D CMOS scanner models available
  • IP65-Rated
  • 5' Drop Spec
  • Bright OLED display
  • Large 8MB of data memory
  • Bluetooth V2.1+EDR, Class 2, HID/SPP/MFI profiles
  • Smart Bluetooth reconnection upon detecting disconnection either from the smart device or KDC
  • The best battery life Bluetooth barcode scanner
  • Five days scanning operation on a single charge in Bluetooth normal mode
  • Two weeks scanning operation on a single charge in Bluetooth power save mode
  • Bundled DB look up and inventory programs
NameSizeDownload
Brochure151kb kdc270_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
KDC20KDC-20 Bluetooth Laser Barcode Data Collector
KDC200KDC-200 Bluetooth Laser Barcode Data Collector
KDC250KDC-250 Bluetooth Laser Barcode Data collector
KDC30KDC-30 Bluetooth 2D Barcode Data Collector
KDC300KDC-300 Bluetooth 2D Barcode Data Collector with Display

Parts documents

Parts layout details

Specifications
Processor
NA
Development Environment
SDK for PC and Smartphone application
Application Generation Tool
Database Lookup and Inventory Management Features
Operating Platform
Proprietory
Real-Time Clock
NA
Sensors
NA
Memory
Flash ROM: 256KB Program, 8MB user Data
RAM: 64 KB
Memory Expansion
N/A
Scan Engine
Laser scan Engine, Scan range: 50-420mm
or CCD Linear Scan Engine, Scan range: 60-460mm
or 2D Imager, Scan range: 60-466mm
Bar-code Type
Laser 1D:
EAN/UPC, Code 39, Code 93, Code 128, Interleaved 2 of 5, Codabar, GS1-128, Code 3 of 5
CCD 1D:
UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128, GS1 Databar (RSS) excl stacked, IATA, Industrial 2 of 5, Interleaved 2 of 5, IBSN-ISNN-ISMN, Matrix 2 of 5, MSI/Plessey, S-Code, Telepen, Tri-optic, UK/Plessey
Imager 2D:
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128, GS1 Databar (RSS), IATA, Industrial 2 of 5, Interleaved 2 of 5, IBSN-ISNN-ISMN, Matrix 2 of 5, MSI/Plessey, S-Code, Telepen, Tri-optic, UK/Plessey
Barcode 2D: Aztec Code, Aztec Runes, Chinese Sensible Code, Codablock F, Composite Codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code, MicroPDF417, Micro QR Code, PDF417, QR Code
Postal Code: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority Code, POSTNET
Keyboards
scan Button and 2 Navigation Buttons
Audio
Buzzer
Display
1" OLED Display
Camera
N/A
I/O Ports
Build in Micro USB port
Radio Options
Bluetooth® V2.1+EDR, Class 2, HID/SPP/MFi
Battery
Rechargeable battery: Lithium-Ion Polymer 3.7V 650mAh
Charging via Micro USB or Charging Cradle
Battery Life
N/A
Environmental Sealing
IP65
Mechanical Shock
Withstands drops from 1.5 m onto concrete
ESD Protection
N/A
External Dimensions (WxDxH)
40 x 82 x 18 mm
Weight
57.5g with Battery
Operating Environment
-20 ~ 50°C
RH 5-95% non condensing
Storage Environment
-20 ~ 60°C
RH 5-95% non condensing
Product Compliance
C-Tick, CE, FCC, EMI/RFI, TELEC,
Laser Safety: IEC 60825-1 Class 2, FDA CDRH Class II
LED Safety: IEC62471:2006
Electrical Safety: UL60950-1, EN/IEC60950-1, EN/IEC 60825-1
