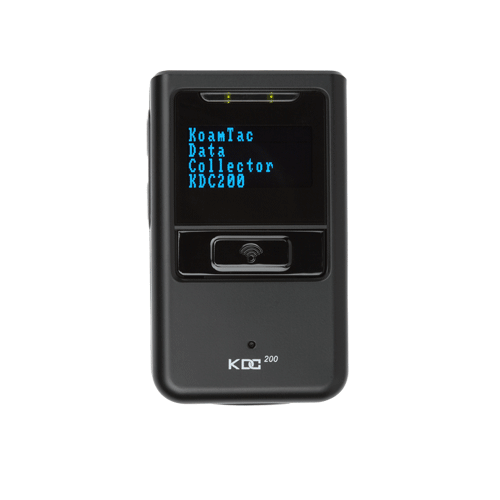

KOAMTAC KDC-200 Bluetooth Laser Barcode Data Collector ***obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The KDC-200 enables diverse mobile Auto-Identification applications for collecting and storing barcode data. Bluetooth communications, A built-in display eliminates blind erroneous data collections and enables interactive data collection processes. An easy-to-replace rechargeable battery that can recharge from any USB port.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Supports all major one dimensional barcodes
  • Superior scanning performance with the top of the line laser scan engine
  • Large data memory (Basic 160KB, Optional 4MB)
  • Bluetooth V2.1+EDR, Class 2, HID/SPP/MFi
  • Bright 1" OLED display
  • Optional full integration with IOS (MFI)
  • Rechargeable Li-Poly battery with user-accessible compartment for easy replacement
  • Powerful keyboard emulator with keyboard wedging, application generation, DB look up and inventory program.
NameSizeDownload
Brochure236kb kdc200_brochure.pdf
Windows Driver1,225kb KDC_Device.Driver.zip
KTSync Windows XP/Vista/7/8 Standard308kb KDC_KTSync_V209TC.zip

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
ARM7 32-bit
Development Environment
SDK for PC, Pad and Smartphone application
Application generation tool
Database lookup feature
Inventory management feature
Operating Platform
Proprietory
Real-Time Clock
Quartz RTC for timestamp
Memory
Standard Flash ROM: 160KB Optional 4MB
RAM: 64 KB
Memory Expansion
N/A
Scan Engine
Laser scan Engine, 650nM visible Laser Diode
Scan Rate: 100 scan/sec
Bar-code Type
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128, Interleaved 2 of 5, Code 3 of 5
Keyboards
3 keys total, 2 navigation keys, 1 scan key
Audio
Buzzer
Display
Bright 1" OLED Display
Camera
N/A
I/O Ports
Build in Ultra Mini USB port
Radio Options
Bluetooth® V2.1+EDR, Class 2, HID/SPP
Battery
Rechargeable battery: Lithium-Ion Polymer 3.7V 190mAh
Battery Life
N/A
Environmental Sealing
N/A
Mechanical Shock
Withstands drops from 1.2 m onto concrete with Rubber case
ESD Protection
N/A
External Dimensions (WxDxH)
35 x 62 x15 mm
Weight
34g with Battery
Operating Environment
0 ~ 45°C
RH 5-85% non condensing
Storage Environment
-20 ~ 45°C
RH 5-85% non condensing
Product Compliance
C-Tick, CE, FCC, MIC, EMC, TELEC, SRRC, IEC 60825-1 Class 2, FDA CDRH Class II
