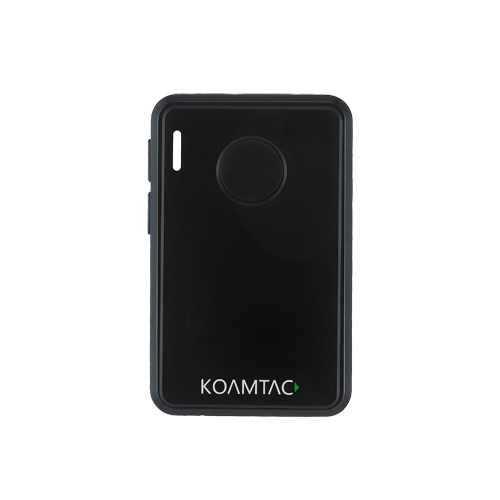

KOAMTAC KDC-20 Bluetooth Laser Barcode Data Collector ***obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The KDC20 Bluetooth barcode scanner is an ultra-lightweight and compact 1D laser scanner. It is complete with Class2 Bluetooth HID/SPP/MFi (optional) profiles. The unique design of the KDC20 includes a swing out USB that is fast and convenient. Users may store up to 10,240+ product records. The sleek high performance KDC20 embraces KOAMTAC’s innovative and user friendly design. With an easy-to-replace rechargeable battery (that may recharge from any USB port) allowing more than 5,000,000 barcode scans.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • 1D Laser Bluetooth Barcode Scanner
  • Supports all major one dimensional barcodes
  • Superior scanning performance with top of the line laser scan engine
  • Ultra compact & lightweight
  • Bluetooth V2.1+EDR, Class 2, HID/SPP/MFi
  • Supports USB Disk & USB HID
  • Built-in swing-out USB connector
  • Rechargeable Li-Poly battery with accessible compartment for easy replacement
  • Powerful keyboard emulator with keyboard wedging
  • KOAMTAC provides complimentary KTSync synchronization and wedging software for Android, Blackberry, iOS, Mac OS X and Windows devices.
Brochure240kb kdc20_brochure.pdf
Windows Driver1,225kb KDC_Device.Driver.zip
KTSync Windows XP/Vista/7/8 Standard308kb KDC_KTSync_V209TC.zip

Products available to purchase

KDC100BATT KOAMTAC190mAh Battery for the KDC100

All Vendor Sku's for this Products

This product is equivalent to the following products

No Products to Display

Parts documents

Parts layout details

ARM7 32-bits
Development Environment
SDK for PC, iPad and Smartphone application
Application generation tool
Database lookup feature
Inventory management feature
KTSync® with Keyboard Wedging feature
Operating Platform
Real-Time Clock
Quartz RTC for timestamp
Standard Flash ROM: 256KB
RAM: 64 KB
Memory Expansion
Scan Engine
Laser scan Engine, 650nM visible Laser Diode
Scan Rate: 100 scan/sec
Bar-code Type
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128, Interleaved 2 of 5, Code 3 of 5
3 keys total, 2 navigation keys, 1 scan key
I/O Ports
Swing out USB Type A Connector
Radio Options
Bluetooth® V2.1+EDR, Class 2, HID/SPP/Optional MFi
Rechargeable battery: Lithium-Ion Polymer 3.7V 190mAh
Battery Life
Environmental Sealing
Mechanical Shock
Withstands drops from 1.2 m onto concrete with Rubber case
ESD Protection
External Dimensions (WxDxH)
38 x 61 x14.25 mm
35.5g with Battery
Operating Environment
0 ~ 45°C
RH 5-85% non condensing
Storage Environment
-20 ~ 45°C
RH 5-85% non condensing
Product Compliance
C-Tick, CE, FCC, KCC, TELEC, VCCI, IEC 60825-1 Class 2, FDA CDRH Class II
