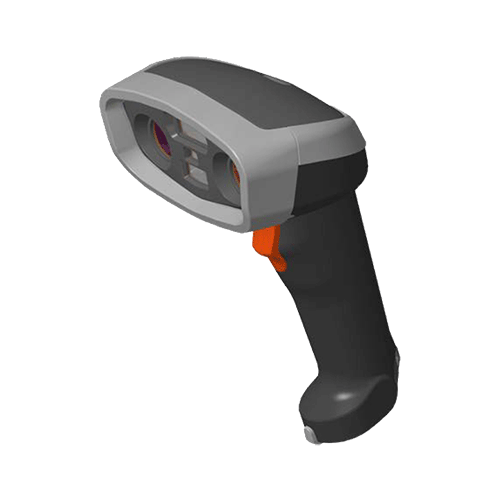

GOODSON VM-200 Volume & 2D Barcode Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

Scantech-ID’s VM200/100 is a compact and robust handheld multi-dimensional measuring device, its intuitive reading, unmatched fact performance and optimal price make it the best choice in the market.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Volume and Barcode Scanner
  • Easily handheld and carry
  • No extra ruler and no pre-calibration needed
  • Patenting smart guiding aimer to quickly lead the measured object inside field of view
  • Intuitive reading and unmatched fact performance
  • Multi-function reader: 3D volume measurement and (optional)2D Barcode reader in a device
  • Data output : Volume and W-H-L dimension data, dimensional weight, optional Barcode
  • Measurement time: less than 1 second
  • Min. cube: 10cm , Max. cube: 90cm
  • Accuracy: less than 3% deviation
  • Ambient lighting: 0 to 15000 Lux. , avoid direct sunlight
  • 2 buttons consist in 4 optional operation setting to suite your application
  • Communication interface: USB or RS-232
NameSizeDownload
Brochure1,808kb vm200_brochure.pdf

Products available to purchase

 SKUVendorName
VM200-U GOODSONScantech-ID VM200 Volume & 2D Scanner USB

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
CMOS Array Sensor
and Laser 3D Measurement Reader
Light Source
Volume reader 650+/-10nm Red VLD IEC (60825-1:2014 Class 1)
2D Imager: White Light LED
Scan Pattern
Sensor resolution: 1280(H) x 800 (V)
Scan Rate
Up to 60 images/sec
Measurement time: less than 1 Second
Contrast Ratio
N/A
Resolution
Typical 5mils
Depth of field
Code 39:
60 - 100 mm (3 mil)
55 - 110 mm (4 mil)
50 - 220 mm (10 mil)
50 - 300 mm (20 mil)
QR Code:
50 - 200 mm (20 mil)
PDF:
50 - 120 mm (20 mil)
Symbologies supported
1D Barcode Support: JAN/UPC/EAN, Codabar/NW-7, Code 11, Code 39, Code 93, Code128, Interleaved 2of5, Industrial 2 of 5, MSI/Plessey, Telepen, GS1 Databar Omni-directional, GS1 Databar limited, GS1 Databar Extended
2D Barcode Support: Data Matrix, QR Code, PDF417
Postal Code Support: Chinese Post
Measurement Specs
Field of View: Horizontal 52°, Vertical 30°
Shape: Cubic and rectangular Cartons
Accuracy: less than 3% deviation
Measurment time: less than 1 Second
Object:
Min. Cube: 10cm
Max. cube object: 90cm
Colour: All opaque packages except black or transparent
Measure angle: Pitch 35°`65°, Skew +/- 15°
Programming Method
VM Set
Indicators/Controls
Good Read Beep
LED (Green, Red and Orange)
Communication Type
Corded
Interfaces
USB HID
RS232 (Special Order)
Supply Voltage
DC +5V ±10%
Power Consumption
Standby typical 40 mA
Opration typical 380 mA
Drop Specification
Withstands multiple drops from 1.5m onto concrete
Environmental Sealing
IP54
Operating Environment
-10 ~ 50 °C
RH: 0-95% Non Condensing
Storage Environment
-20 ~ 70 °C
RH: 0-95% Non Condensing
EMC/Safety Standards
CE, OIML, NTEP
External Dimensions (WxDxH)
115 x 70 x 180 mm
Weight
270 g (cable not included)
