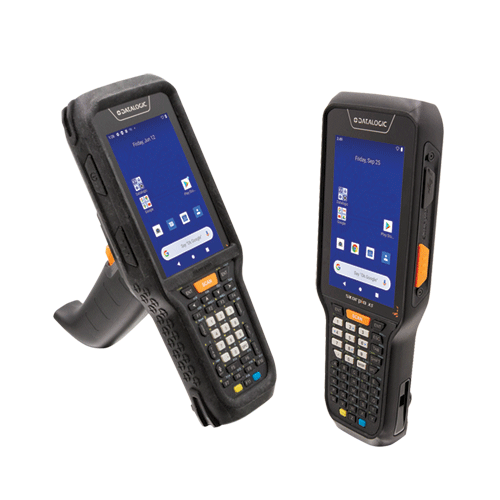

DATALOGIC Skorpio™ X5 Portable Data Terminal

(Product may vary from image. Rely only on description for purchasing decisions.)

The new Skorpio X5 enables retail, transportation and logistics, manufacturing, and healthcare companies to reach new levels of reliability and flexibility. This ultra-fast, high-performing key-based mobile computer has the largest multi-touch display in the Portable Data Terminal (PDT) market. It delivers everything companies need to ensure the utmost productivity and to stand out in terms of effectiveness and efficiency. The Skorpio X5 features dominant computational CPU power and the latest generation of scan engines, specifically designed and developed by Datalogic, including a unique Mid-Range imager.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Qualcomm SD660 Octa-core 2.2GHz platform
  • Android 10 with Google Mobile Services
  • Largest display in its class with a 4.3” WVGA with Gorilla™ hardened glass
  • Scan Engine options: 1D Linear imager, 2D imager Standard Range and 2D imager Mid-Range
  • Choice of Wireless charging to eliminate contacts and reduce maintenance costs
  • Rear 13 MP colour camera
  • Removable battery pack with Hot Swap battery technology Standard 3500 mAh or High Capacity 6200 mAh
  • Ruggedized with drop resistance up to 1.8 m to concrete and IP65 sealing to withstand the most harsh and demanding environments
  • Dual band MIMO Wi-Fi featuring 802.11ac and 802.11r/k/v for fast roaming
  • 47-key alphanumeric, 38-key function/numeric,28-key numeric
  • Bluetooth™ v5 to empower Bluetooth peripherals with less power consumption
  • NFC for proximity communications
  • Chemical cleaner’s resistant plastics/enclosure to endure frequent cleaning and disinfections
  • Pre-licensed device and browser lockdown powered by 4Gears
NameSizeDownload
Brochure258kb dl_skorpiox5_brochure.pdf

Products available to purchase

 SKUVendorName
DLSK5G-A2DS4-WLC DATALOGICSkorpio Gun X5 BT Wifi 2D SR img 47key A N A10
DLSK5G-A1D3-BAA DATALOGICSkorpio Gun X5 BT Wifi 1D SR img 47 Key Alpha A10
DLSK5G-F2DM3-BAA DATALOGICSkorpio Gun X5 Bt Wifi 2D Mr Img 38 Key Num A10
DLSK5G-F2DS4-BAA DATALOGICSkorpio Gun X5 BT Wifi 2D SR img 38 Key Fun A10
DLSK5G-A2DX4-BAA DATALOGICSkorpio Gun X5 BT Wifi 2D XLR img 47 Key A10
DLSK5GC-A2DX4-BAA DATALOGICSkorpio Gun X5 BT Wifi 2D XLR img 47 Key Cless A10
DLSK5G-F1D3-BAA DATALOGICSkorpio Gun X5 BT Wifi Std 1D img 38 Key Num A10
DLSK5GC-A2DM4-BAA DATALOGICSkorpio Pistol Grip X5 BT Wifi 2D img 47 Key A N
AD-SK5-TDOCK DATALOGICPower Supply for Single & Tripple Dock Skorpio X5
DLSK5-DCBASE DATALOGICSingle Dock with contacts needs PS
DLSK5-TBASE DATALOGICSkorpio X5 3 Slot Charge base with Contacts no PS
DLSK5-TBASEW DATALOGICSkorpio X5 3 Slot Dock Wireless Charging no PS
DLSK5-EXBATT DATALOGICSkorpio X5 Extended Battery
DLSK5-HSTRAP DATALOGICSkorpio X5 Hand Strap (Pck5)
DLSK5-RBOOT DATALOGICSkorpio X5 Rubber Boot (handheld & pistolgrip)
DLSK5-SCRPROTECT DATALOGICSkorpio X5 Screen Protector (5pcs)
DLSK5-DCBASEW DATALOGICSkorpio X5 Single Dock Wireless Charging needs PS
DLSK5-TRHANDLE DATALOGICSkorpio X5 Trigger Handle
DLSK5-HOLSTER DATALOGICSkorpio X5 XLR Belt Holster

All Vendor Sku's for this Products

Vendor SKUOur SKUDescription
943500001 Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 3GB RAM/32GB Flash, 28-Key Numeric, 1D Imager w Green Spot, Android 10.
943500041 Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 3GB RAM/32GB Flash, 28-Key Numeric, 2D Imager MR w Green Spot, Android 10.
943500007 Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 3GB RAM/32GB Flash, 28-Key Numeric, 2D Imager SR w Green Spot, Android 10.
943500010 Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 3GB RAM/32GB Flash, 28-Key Numeric, Contactless 2D Imager SR w Green Spot, Android 10.
943500002 Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 3GB RAM/32GB Flash, 38-Key Functional, 1D Imager w Green Spot, Android 10.
943500003 Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 3GB RAM/32GB Flash, 47-Key Alpha-Numeric, 1D Imager w Green Spot, Android 10.
943500043 Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 3GB RAM/32GB Flash, 47-Key Alpha-Numeric, 2D Imager MR w Green Spot, Android 10.
943500009 Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 3GB RAM/32GB Flash, 47-Key Alpha-Numeric, 2D Imager SR w Green Spot, Android 10.
943500011 Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 3GB RAM/32GB Flash, 47-Key Alpha-Numeric, Contactless, 2D Imager SR w Green Spot, Android 10.
943500013 Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 4GB RAM/64GB Flash, 28-Key Numeric, 2D Imager SR w Green Spot, Android 10.
943500014 Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 4GB RAM/64GB Flash, 38-key Functional, 2D Imager SR w Green Spot, Android 10.
943500042 Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 4GB RAM/64GB Flash, 47-Key Alpha-Numeric, Contactless 2D Imager MR w Green Spot, Android 10.
943500018 Skorpio X5 Hand held, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 4GB RAM/64GB Flash, 47-Key Alpha-Numeric, Contactless, 2D Imager SR w Green Spot, Android 10.
943500023 Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 3GB RAM/32GB Flash, 28-Key Numeric, 1D Imager w Green Spot, Android 10, with Extended Battery
943500054 Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 3GB RAM/32GB Flash, 28-Key Numeric, 2D Imager MR w Green Spot, Android 10, with Extended Battery
943500029 Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 3GB RAM/32GB Flash, 28-Key Numeric, 2D Imager SR w Green Spot, Android 10, with Extended Battery
943500024DLSK5G-F1D3-BAASkorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 3GB RAM/32GB Flash, 38-Key Functional, 1D Imager w Green Spot, Android 10, with Extended Battery
943500030 Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 3GB RAM/32GB Flash, 38-Key Functional, 2D Imager SR w Green Spot, Android 10, with Extended Battery
943500025DLSK5G-A1D3-BAASkorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 3GB RAM/32GB Flash, 47-Key Alpha-Numeric, 1D Imager w Green Spot, Android 10, with Extended Battery
943500055 Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 3GB RAM/32GB Flash, 47-Key Alpha-Numeric, 2D Imager MR w Green Spot, Android 10, with Extended Battery
943500031 Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 3GB RAM/32GB Flash, 47-Key Alpha-Numeric, 2D Imager SR w Green Spot, Android 10, with Extended Battery
943500035 Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 4GB RAM/64GB Flash, 28-Key Numeric, 2D Imager SR w Green Spot, Android 10, with Extended Battery
943500036DLSK5G-F2DS4-BAASkorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 4GB RAM/64GB Flash, 38-Key Functional, 2D Imager SR w Green Spot, Android 10, with Extended Battery
943500056DLSK5GC-A2DM4-BAASkorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 4GB RAM/64GB Flash, 47-Key Alpha-Numeric, Contactless, 2D Imager MR w Green Spot, Android 10, with Extended Battery
943500037DLSK5G-A2DS4-WLCSkorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3 display, BT V5, 4GB RAM/64GB Flash, 47-Key Alpha-Numeric, Contactless, 2D Imager SR w Green Spot, Android 10, with Extended Battery

This product is equivalent to the following products

SKUDescription
SKORPIOSkorpio & Skorpio X3

Parts documents

Parts layout details

Specifications
Processor
Qualcomm SD660 Octa-core 2.2 GHz
Operating Platform
Android v10 with GMS - 2 Main upgrade support
Development Environment
Datalogic Android SDK
Xamarin SDK
Ionic Cordova SDK
React Native SDK
Software Utilities
Applications:
Pre-licensed device and browser lockdown powered by 42Gears; Datalogic WiFi Guard; compatible with Enterprise class PTT by Zello; Datalogic’s softspot soft Triggers
CONFIGURATION & MAINTENANCE:
Scan2Deploy Studio, OEMConfig
Datalogic Shield: recurring security patches, firmware updates, and OS upgrades
MDM:
Compatible with: SOTI MobiControl, VMWare AirWatch, Ivanti Avalanche, 42Gears SureMDM, Microsoft Intune
TERMINAL EMULATION:
Compatible with: StayLinked SmartTE, Ivanti Velocity
Memory
Model Dependent:
3 GB RAM & 32 GB Flash Memory or
4 GB RAM & 64 GB Flash Memory
(partially used for firmware and reserved data)
Memory Expansion
Micro Secure Digital slot (SDXC) up to 256 GB
Scan Options
2D IMAGER (Standard Range) Megapixel sensor;
White LED Illumination, Laser aim 650nm
Print Contrast Minimum: 25%
Optical Resolution: 1D codes: 3 mils, 2D codes: 7.5 mils (DM), 6.6 mils (PDF)
Depth of Field (typical): 4.5 to 74 cm (13 mil/EAN), 6.5 to 40 cm (15 mil/DM)
Presentation mode Sensor
2D IMAGER (Mid Range) Megapixel sensor;
White LED Illumination, Laser aim 650nm
Print Contrast Minimum: 25%
Optical Resolution: 1D codes: 3 mils, 2D codes: 7.5 mils (DM), 6.6 mils (PDF)
Depth of Field (typical): 8.0 to 100 cm (13 mil/EAN), up to 160 cm (55 mil/DM)
Presentation mode Sensor
1D IMAGER 2500 pixel sensor; Sharp green LED scan line
Print Contrast Minimum: 15%
Optical Resolution: 2.5 mils (linear codes)
Depth of Field: 4.0 to 74 cm (13 mil/EAN)
All depending on bar code density and type
Symbologies supported
Depending on Scan enging used:
1D / LINEAR CODES: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D CODES: Aztec Code, Data Matrix, MaxiCode, PDF417, MicroPDF417, Micro QR Code, QR Code
POSTAL CODES: Australian Post, Japanese Post, KIX Code, Royal Mail, USPS Intelligent Mail, USPS PLANET, USPS POSTNET
GS1 COMPOSITE CODES UPC/EAN/JAN Composites, GS1 DataBar Composites and GS1 128 Composite (Composites supported on WEC7 only)
Keyboards
28-key Numeric, 38-key Numeric/Function or 47-key Alpha/Numeric backlit keyboard
Audio
Wideband Speech (HD Audio) supported on Android
Display
4.3 inch TFT / Transflective LCD with 800x480 WVGA pixel resolution; LED backlight and integrated touch screen, High brightness for Indoor and Outdoor High Visibility
Sensor to auto adjust display backlight
Touch Screen: 6 points multi-touch capacitive panel with hardened Gorilla Glass 3; Support for gloves and stylus
Camera
Rear Camera:
Resolution 13 MP
Illumination: User controllable LED Flash
I/O Ports
USB Type-C: USB 3.1 gen 1 (3.2 gen 1x1), host and device; Gigabit Ethernet connectivity (via 3-slot dock)
Radio Options
LOCAL AREA NETWORK (WLAN):
IEEE 802.11 a/b/g/n/ac and 802.11 d/e/h/i/k/r/v/w/mc (for indoor localization); IPv4, IPv6, 2x2 MU-MIMO for higher throughput and coverageFrequency range: Country dependent, typically 2.4 GHz and 5 GHz bands
PERSONAL AREA NETWORK (WPAN):
Class 2, Bluetooth V5.0 with BR/EDR and Bluetooth Low Energy (BLE) Support
NFC Communication:
Support for the following standards: ISO14443-4 (type-A, type-B); ISO15693; Mifare; Felica
Battery
Removable battery pack with rechargeable Li-Ion batteries.
Standard: 3.7 V; rated 3460 mAh typical 3500 mAh (12.8 Watt-hours)
standard on all Handheld Models
Extended: 3.7 V; rated 6080 mAh Typical 6200 mAh (22.1 Watt-hours)
Extended Battery is standard on the Gun Models
Drop Specification
Withstands drops from 1.8 m onto concrete according to IEC62-2-32
Withstands 1000 Tumbles from 1 m, 2000 hits
Environmental Sealing
IP65
Chemical cleanser and Industrial oil resistant
Operating Environment
-20 ~ 50°C
Storage Environment
-30 ~ 70°C
EMC/Safety Standards
AGENCY APPROVALS The product meets necessary safety and regulatory approvals for its intended use.
ENVIRONMENTAL COMPLIANCE Complies to EU RoHS Directive 2011/65/EU
LASER CLASSIFICATION VLD - Class 2 IEC/EN60825-1; Compliant with 21 CFR 1040.10 except for deviations pursuant to laser notice No. 50 dated June 24, 2007.
LED CLASSIFICATION Exempt Risk Group IEC/EN62471
External Dimensions (WxDxH)
Front size: 218 x 78,5 mm / 6.69 x 3.14 inThickness Max 31,3 Head; Max 35,6 WLC coil area and hand strap area
Weight
Handheld (with standard battery) 488 g, (with extended Battery) 514 g
Pistol Grip (with extended Battery) 626 g
