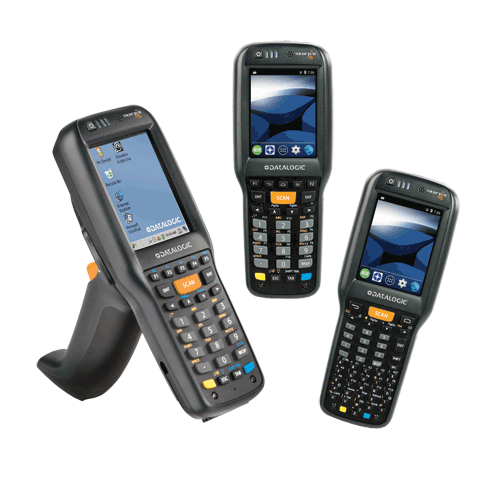

DATALOGIC Skorpio™ X4 Portable Data Terminal

(Product may vary from image. Rely only on description for purchasing decisions.)

The Skorpio™ X4 mobile computer features a high performance architecture that offers blazing speed for legacy applications while providing an easy migration path to Android™.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Rugged PDA
  • All new/high performance architecture with 3x performance over its predecessor
  • Increased ruggedness: 1.8 m / 6.0 ft drop resistance
  • Choice of Windows Embedded Compact (WEC7) or Android Operating Systems
  • Wi-Fi: 802.11 a/b/g/n with MIMO antennas
  • Bluetooth v4.0 Wireless Technology
  • Full compatibility with Skorpio X3 accessories
  • Choice of 3 keyboard layouts for both WEC7 and Android
NameSizeDownload
Datasheet127kb skorpio_x4_datasheet.pdf

Products available to purchase

 SKUVendorName
DLSK3-HSTRAP DATALOGICHandstrap for Skorpio X3 X4 X5 & Falcon X3 X4
AD-DLELQDOCK DATALOGICPower supply for Multi Charger ELF Skorpio with lead
AD-DLELDOCK DATALOGICPower Supply for Single Slot Dock ELF SkorpioX3
DLSK3-EXBATT DATALOGICSkorpio 5200mAh High Capacity Battery
DLSK3-QBCHG DATALOGICSkorpio X3 Quad Slot Battery Charger
DLSK3-TRHANDLE DATALOGICSkorpio X3 Trigger Handle
DLSK3-STBATT DATALOGICStandard Battery for Skorpio X3 Not For Gun
DLSK3-STPEN DATALOGICStylus and Tether Pack for Skorpio X3 X4 5 pack
DLZSC2SK431 DATALOGICSKORPIO X4 2 Days 3 Yr Comprehensive
DLZSC2SK451 DATALOGICSKORPIO X4 2 Days 5 Yr Comprehensive
DLZSC5SK431 DATALOGICSkorpio X4 EofC 5 Days Comprehensive 3 Years
DLZSC5SK451 DATALOGICSkorpio X4 EofC 5 Days Comprehensive 5 Years

All Vendor Sku's for this Products

Vendor SKUOur SKUDescription
942500001 Skorpio X4 Hand held, Batch, 1GB RAM/8GB Flash, 28-Key Numeric, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7
942500002 Skorpio X4 Hand held, Batch, 1GB RAM/8GB Flash, 38-Key Functional, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7
942550001 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 28-Key Numeric, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, FCC
942550002 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 38-Key Functional, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, FCC
942550003 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 50-Key Full Alpha Numeric, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, FCC
942550014ZZOLDDLSK4-FS1-BN0MSkorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 38-Key Functional, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, EU
942550015 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 50-Key Full Alpha Numeric, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, EU
942600001 Skorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 28-Key Numeric, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, FCC
942600002 Skorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 38-Key Functional, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, FCC
942600003 Skorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 50-Key Full Alpha Numeric, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, FCC
942600014ZZOLDDLSK4G-FS1-BN0MSkorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 38-Key Functional, Green Laser-like 1D Imager w Green Spot, Windows Embedded Compact 7, EU
942550007 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 28-Key Numeric, Green Laser-like 1D Imager w Green Spot, Android 4.4, FCC
942550008 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 38-Key Functional, Green Laser-like 1D Imager w Green Spot, Android 4.4, FCC
942550009 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 50-Key Full Alpha Numeric, Green Laser-like 1D Imager w Green Spot, Android 4.4, FCC
942550019 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 28-Key Numeric, Green Laser-like 1D Imager w Green Spot, Android 4.4, EU
942550020 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 38-Key Functional, Green Laser-like 1D Imager w Green Spot, Android 4.4, EU
942550021 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 50-Key Full Alpha Numeric, Green Laser-like 1D Imager w Green Spot, Android 4.4, EU
942600007 Skorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 28-Key Numeric, Green Laser-like 1D Imager w Green Spot, Android 4.4, FCC
942600008 Skorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 38-Key Functional, Green Laser-like 1D Imager w Green Spot, Android 4.4, FCC
942600009 Skorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 50-Key Full Alpha Numeric, Green Laser-like 1D Imager w Green Spot, Android 4.4, FCC
942600019 Skorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 28-Key Numeric, Green Laser-like 1D Imager w Green Spot, Android 4.4, EU
942600020 Skorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 38-Key Functional, Green Laser-like 1D Imager w Green Spot, Android 4.4, EU
942550010 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 28-Key Numeric, White Illumination 2D Imager w Green Spot, Android 4.4, FCC
942550011 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 38-Key Functional, White Illumination 2D Imager w Green Spot, Android 4.4, FCC
942550012 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 50-Key Full Alpha Numeric, White Illumination 2D Imager w Green Spot, Android 4.4, FCC
942550022ZZOLDDLSK4-NS2-BN0ASkorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 28-Key Numeric, White Illumination 2D Imager w Green Spot, Android 4.4, EU
942550024 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 50-Key Full Alpha Numeric, White Illumination 2D Imager w Green Spot, Android 4.4, EU
942600010 Skorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 28-Key Numeric, White Illumination 2D Imager w Green Spot, Android 4.4, FCC
942600011 Skorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 38-Key Functional, White Illumination 2D Imager w Green Spot, Android 4.4, FCC
942600012 Skorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 50-Key Full Alpha Numeric, White Illumination 2D Imager w Green Spot, Android 4.4, FCC
942600022 Skorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 28-Key Numeric, White Illumination 2D Imager w Green Spot, Android 4.4, EU
942600023 Skorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 38-Key Functional, White Illumination 2D Imager w Green Spot, Android 4.4, EU
942550004 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 28-Key Numeric, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, FCC
942550005 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 38-Key Functional, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, FCC
942550006 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 50-Key Full Alpha Numeric, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, FCC
942550018 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 50-Key Full Alpha Numeric, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, EU
942550032 Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 28-Key Numeric, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, EU with Extended Battery
942550034 Skorpio X4 Handheld, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 28-Key Numeric, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, EU with Extended battery
942600004 Skorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 28-Key Numeric, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, FCC
942600005 Skorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 38-Key Functional, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, FCC
942600006 Skorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 50-Key Full Alpha Numeric, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, FCC
942600016 Skorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 28-Key Numeric, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, EU
942600018ZZOLDDLSK4G-AS2-BN0MSkorpio X4 Pistol grip, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 50-Key Full Alpha Numeric, White Illumination 2D Imager w Green Spot, Windows Embedded Compact 7, EU

This product is equivalent to the following products

SKUDescription
SKORPIOSkorpio & Skorpio X3

Parts documents

Parts layout details

Specifications
Processor
TI OMAP4 @ 1 GHz CPU
Operating Platform
Microsoft Windows Embedded Compact 7 (WEC7) or
Android v4.4*
Development Environment
WEC7:
Datalogic Windows SDK™,
Wavelink® Studio™
MCL-Collection™
Android:
Datalogic Android SDK
Xamarin SDK
Software Utilities
Applications: Pal Application Library pre-licensed (WEC7 only)
CONFIGURATION & MAINTENANCE:
Wavelink Avalanche® pre-licensed (WEC7 only),
42 Gears SureLock pre-licensed for device lockdown (Android only)
SOTI MobiControl
Datalogic xPlatform Utility (DXU) pre-licensed,
Datalogic Desktop Utility (DDU) pre-licensed for device lockdown (WEC7 only)
BROWSER:
SureFox locked web browser pre-licensed for WEC7 and Android models
TERMINAL EMULATION:
Wavelink® Terminal Emulation™ pre-licensed (for Pistol Grip/WEC7 models only)
StayLinked SmartTE (for Android)
Memory
Ram Memory: 1 GB
Flash Memory: 8 GB (partially used for firmware and reserved data, depending on the OS)
Memory Expansion
Micro-SD card slot: Compatible with Micro SD-HC cards up to 32 Gb
Scan Options
2D IMAGER (STANDARD RANGE) Megapixel sensor for extended range;
White LED Illumination
Optical Resolution: 1D codes: 3 mils, 2D codes: 6.6 mils
Depth of Field (typical): 4.5 to 74 cm (13 mil/EAN), depending on bar code density and type
1D IMAGER 2500 pixel sensor; Sharp green LED scan line
Optical Resolution: 2.5 mils (linear codes)
Depth of Field: 4.0 to 74 cm (13 mil/EAN), depending on bar code density and type
Symbologies supported
Depending on Scan enging used:
1D / LINEAR CODES: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D CODES: Aztec Code, Data Matrix, MaxiCode, PDF417, MicroPDF417, Micro QR Code, QR Code
POSTAL CODES: Australian Post, Japanese Post, KIX Code, Royal Mail, USPS Intelligent Mail, USPS PLANET, USPS POSTNET
GS1 COMPOSITE CODES UPC/EAN/JAN Composites, GS1 DataBar Composites and GS1 128 Composite (Composites supported on WEC7 only)
Keyboards
28-key Numeric, 38-key Numeric/Function or 50-key QWERTY backlit keyboard
Audio
Wideband Speech (HD Audio) supported on Android
Display
TFT / Transflective LCD with 240 x 320 pixel resolution, LED backlight and integrated touch screen, 3.2 in diagonal
Camera
N/A
I/O Ports
Main connector with USB 2.0 High Speed Host (480 Mbps) and Client, RS-232 up to 115.2 Kbps
microUSB port for power and communications
Ethernet: via single dock (external module) or multi-slot dock
Radio Options
LOCAL AREA NETWORK (WLAN): TI Wi-Link 8, IEEE 802.11a/b/g/n; Frequency Range: Country dependent, typically 2.4 and 5 GHz; Cisco Compatible CCX v4 Security
PERSONAL AREA NETWORK (WPAN): Bluetooth v4 with BLE (Android models); Bluetooth v2.1 + EDR (WEC7 models)
Battery
Removable battery pack with rechargeable Li-Ion batteries.
Standard: 3.7 V; 3000 mAh (11.1 Watt-hours)
Extended: 3.7 V; 5200 mAh (19.2 Watt-hours)
Extended Battery is standard on the Gun Models
Battery Life
Drop Specification
Withstands drops from 1.8 m onto concrete
Environmental Sealing
IP64
ESD Protection
Operating Environment
-10 ~ 50°C
Storage Environment
-20 ~ 70°C
EMC/Safety Standards
AGENCY APPROVALS The product meets necessary safety and regulatory approvals for its intended use.
ENVIRONMENTAL COMPLIANCE Complies to EU RoHS
LASER CLASSIFICATION VLD - Class 2 IEC/EN60825-1; Compliant with 21 CFR 1040.10 except for deviations pursuant to laser notice No. 50 dated June 24, 2007.
LED CLASSIFICATION Exempt Risk Group IEC/EN62471
External Dimensions (WxDxH)
Handheld: 193 x 76 x 42 mm (61 x 35 mm at keyboard)
With Pistol Grip: 193 x 76 x 156 mm
Weight
Handheld (with standard battery): 388 g (with extended Battery) 422 g
Pistol Grip (with standard battery): 482 g (with extended Battery) 516 g
