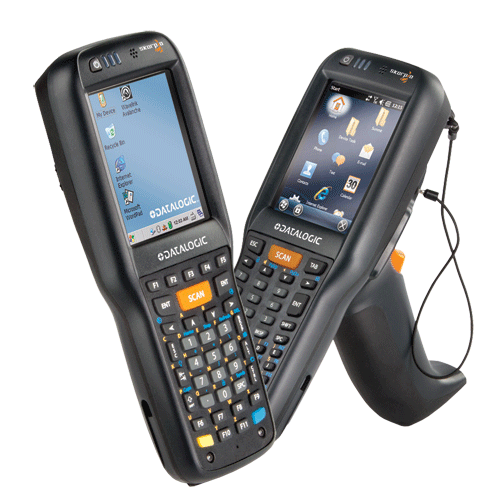

DATALOGIC Skorpio™ X3 Portable Data Terminall *** Obsolete ***

(Product may vary from image. Rely only on description for purchasing decisions.)

Equipped with the largest high-visibility color graphic display (3.2 in) with touch screen in its class, the Skorpio™ X3 mobile computer helps users work more efficiently. Three different keyboards (the 50-key alphanumeric keypad, the 38-key functional keypad and the 28-key numeric keypad) allow data to be input very quickly. Operating systems include your choice of the standard Microsoft Windows Embedded Handheld 6.5 or Windows CE 6.0.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Large high visibility color graphic display with touch screen
  • Laser scanner or wide aspect 2D imager with Datalogic’s patented Green Spot technology for good-read feedback
  • Compact, lightweight and robust
  • Microsoft Windows Embedded Handheld 6.5 or Microsoft Windows CE 6.0 Operating System
  • Summit embedded 802.11 a/b/g radio for enterprise-class mobile connectivity with CCX V4 certification
  • Bluetooth® wireless communications 2.0 with EDR
  • 1.5 m / 5.0 ft drop resistance
  • IP64 protection class
  • Wavelink® Powered™ with pre-installed and pre-licensed Wavelink® Avalanche™
  • Wavelink® Terminal Emulation pre-licensed on pistol grip models
  • Pal Application Library pre-licensed
  • Attachable handle
NameSizeDownload
Brochure457kb dl_skorpiox3_brochure.pdf
Quick Setup Guide300kb dlskorpiox3-qrg.pdf
User Manual Skorpio X3 with Windows CE5,353kb dlskorpiox3_ume_ce.pdf
User Manual Skorpio X3 with Windows Mobile5,788kb dlskorpiox3_ume_wm.pdf

Products available to purchase

 SKUVendorName
DLSK3-HSTRAP DATALOGICHandstrap for Skorpio X3 X4 X5 & Falcon X3 X4
AD-DLELQDOCK DATALOGICPower supply for Multi Charger ELF Skorpio with lead
AD-DLELDOCK DATALOGICPower Supply for Single Slot Dock ELF SkorpioX3
DLSK3-EXBATT DATALOGICSkorpio 5200mAh High Capacity Battery
DLSK3-QBCHG DATALOGICSkorpio X3 Quad Slot Battery Charger
DLSK3-TRHANDLE DATALOGICSkorpio X3 Trigger Handle
DLSK3-STBATT DATALOGICStandard Battery for Skorpio X3 Not For Gun
DLSK3-STPEN DATALOGICStylus and Tether Pack for Skorpio X3 X4 5 pack

All Vendor Sku's for this Products

Vendor SKUOur SKUDescription
942350025 Skorpio X3 Hand held, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 50-Key Full Alpha Numeric, Standard Range imager w Green Spot, Windows CE 6.0
94ACC0127 Bluetooth Wireless Headset VXi B350-XT optimized for voice communications and Push-To-Talk applications. Includes both DC (USB & Car Adaptor) and AC power supply (EU plug).
94ACC0125 Cushion Refresher Kit (ear & mic) for VXi B350-XT Bluetooth Wireless Headset.
942350029 Skorpio X3 Hand held, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 28-Key Numeric, Multi-Purpose imager w Green Spot, Windows CE 6.0
942350030 Skorpio X3 Hand held, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 38-Key Functional, Multi-Purpose imager w Green Spot, Windows CE 6.0
942350031 Skorpio X3 Hand held, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 50-Key Full Alpha Numeric, Multi-Purpose imager w Green Spot, Windows CE 6.0
942350032 Skorpio X3 Hand held, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 28-Key Numeric, Multi-Purpose imager w Green Spot, WEHH 6.5
942350033 Skorpio X3 Hand held, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 50-Key Full Alpha Numeric, Multi-Purpose imager w Green Spot, WEHH 6.5
942400017 Skorpio X3 Pistol grip, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 28-Key Numeric, Multi-Purpose imager w Green Spot, Windows CE 6.0, Extended battery
942400020 Skorpio X3 Pistol grip, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 28-Key Functional Numeric, Multi-Purpose imager w Green Spot, Windows CE 6.0, Extended battery
942400018 Skorpio X3 Pistol grip, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 38-Key Functional, Multi-Purpose imager w Green Spot, Windows CE 6.0, Extended battery
942400019 Skorpio X3 Pistol grip, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 50-Key Full Alpha Numeric, Multi-Purpose imager w Green Spot, Windows CE 6.0, Extended battery
942400021 Skorpio X3 Pistol grip, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 38-Key Functional, Multi-Purpose imager w Green Spot, WEHH 6.5, Extended battery
942350004 Skorpio X3 Hand held, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 28-Key Numeric, Std Laser w Green Spot, WEHH 6.5
942400011 Skorpio X3 Pistol grip, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 28-Key Numeric, Standard Range imager w Green Spot, Windows CE 6.0, Extended battery
942400012ZZOLDDLSK3G-FS2-BG0CSkorpio X3 Pistol grip, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 38-Key Functional, Standard Range imager w Green Spot, Windows CE 6.0, Extended battery
942400013 Skorpio X3 Pistol grip, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 50-Key Full Alpha Numeric, Standard Range imager w Green Spot, Windows CE 6.0, Extended battery
942400014 Skorpio X3 Pistol grip, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 28-Key Functional Numeric, Std Laser w Green Spot, Windows CE 6.0
942400015 Skorpio X3 Pistol grip, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 28-Key Functional Numeric, Standard Range imager w Green Spot, Windows CE 6.0, Extended battery
942350005 Skorpio X3 Hand held, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 50-Key Full Alpha Numeric, Std Laser w Green Spot, WEHH 6.5
942350010DLSK3-FL-000CSkorpio X3 Hand held, Batch, 256MB RAM/512MB Flash, 38-Key Functional, Std Laser w Green Spot, Windows CE 6.0
942400001 Skorpio X3 Pistol grip, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 28-Key Numeric, Std Laser w Green Spot, Windows CE 6.0
942350024 Skorpio X3 Hand held, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 28-Key Numeric, Standard Range imager w Green Spot, Windows CE 6.0
942350003 Skorpio X3 Hand held, 802.11 a/b/g CCX v4, Bluetooth v2, 256MB RAM/512MB Flash, 50-Key Full Alpha Numeric, Std Laser w Green Spot, Windows CE 6.0
942350002 Skorpio X3 Hand held, Batch, 256MB RAM/512MB Flash, 28-Key Numeric, Std Laser w Green Spot, Windows CE 6.0

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
XScale PXA310 @ 624 MHz with Cortex-M3, 32 bit @ 72 MHz co-Processor
Operating Platform
Microsoft Windows CE 6.0 with Microsoft WordPad and Internet Explorer 6.0
or
Microsoft® Windows Embedded Handheld 6.5 with Mobile Tools: Outlook, Word Mobile, Excel Mobile, PowerPoint Mobile, One Note Mobile and Internet Explorer Mobile 6.0
Development Environment
Datalogic Windows SDK™
MCL-Collection™
Wavelink Studio™
Java Virtual Machine
Software Utilities
Applications: Pal™Application Library prelicensed
Memory
Ram Memory: 256 MB
Flash Memory: 512 MB (partially used for firmware and reserved data, depending on the OS)
Memory Expansion
Micro-SD card slot: Compatible with Micro SD-HC cards up to 32 Gb
Scan Options
2D Imaging Engine: Optical Resolution: Linear codes: 4 mils; 2D codes: 5 mils; Scan Rate: 60 frames/sec maximum, Depth of Field: 3.5 to 41.5 cm, depending on bar code density and type, Resolution: VGA (752 H x 480 V pixels), 256 gray scale, Image Format: BMP, JPEG
or
Laser: Scan Rate: 104 +/- 12 scan/sec, Optical Resolution: 0.10 mm / 4 mils, Depth of Field: 4 to 82 cm, depending on bar code density
Both with Good Read Feedback: Datalogic’s patented ‘Green Spot’ for good-read feedback
Symbologies supported
Depending on Scan enging used:
1D / linear codes; Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes; Aztec Code, Data Matrix, MaxiCode, QR Code, UPU FICS, USPS Intelligent Mail
Postal codes; Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC)
Stacked codes; Micro-PDF417, PDF417
Keyboards
28-key Numeric, 38-key Numeric/Function or 50-key QWERTY backlit keyboard
Audio
Display
TFT / Transflective LCD with 240 x 320 pixel resolution, LED backlight and integrated touch screen, 3.2 in diagonal
Camera
N/A
I/O Ports
Main connector with USB 1.1 Host, USB 1.1 Client, RS-232 up to 115.2 Kbps
Micro-USB port for power only, no data communication interface
Ethernet: via single dock (external module) or multiple cradle
Radio Options
WLAN: Summit IEEE 802.11 b/g/n Cisco CCX v4 certified Frequency range: Country dependent, typically 2.4 GHz bands

WPAN: Bluetooth® Wireless Technology IEEE 802.15 Class 2.0 with EDR
Battery
Removable battery pack with rechargeable Li-Ion batteries.
Standard: 3.7 V; 3000 mAh (11.1 Watt-hours)
Extended: 3.7 V; 5200 mAh (19.2 Watt-hours)
Battery Life
Drop Specification
Withstands drops from 1.5 m onto concrete
Environmental Sealing
IP64
ESD Protection
Operating Environment
-10 ~ 50°C
Storage Environment
-20 ~ 70°C
EMC/Safety Standards
External Dimensions (WxDxH)
Handheld: 193 x 76 x 42 mm (61 x 35 mm at keyboard)
With Pistol Grip: 193 x 76 x 156 mm
Weight
Handheld (with standard battery): 392 g
Pistol Grip (with standard battery): 482 g
