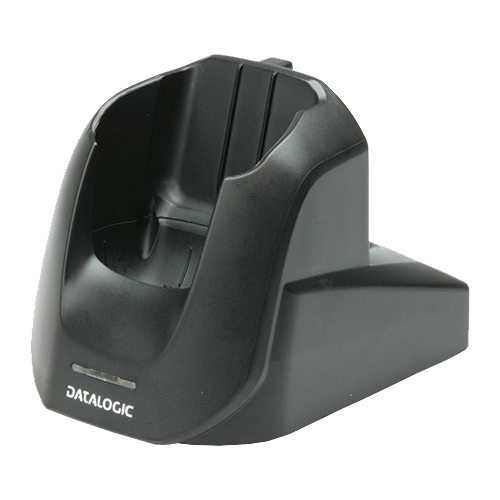

DATALOGIC Single Slot Dock MEMOR X3 (excludes power supply)

(Product may vary from image. Rely only on description for purchasing decisions.)
  • DLMMX3-Single Dck
  • 94A150058
  • DATALOGIC
  • MEMORX3
    • Login to view pricing and availability

Single Slot Dock MEMOR X3 (excludes power supply)

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Ergonomic, compact and robust
  • Reading options: Laser; 2D Area Imager; Linear Imager (all with ‘Green Spot’ technology)
  • Two battery options: 1430 mAh and 2300 mAh
  • Microsoft Windows CE 6.0 Core or CE 6.0 Pro
  • XScale™ PXA 310 @ 806 MHz processor on Windows CE Pro models / 624 MHz on Windows CE Core
  • Summit embedded IEEE 802.11 a/b/g/n radio with CCX V4 connectivity and security
  • Bluetooth® Wireless Technology 2.1 with EDR
  • 256 MB RAM on Windows CE Pro models / 128 MB on Windows CE Core
  • 512 MB Flash memory
  • User-accessible micro SD memory slot
  • 1.2 m drop resistance to concrete; Gorilla Glass II scan window on laser models
  • IP54 protection class
NameSizeDownload
Datasheet137kb dlmemorx3_datasheet.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
XScale™ PXA310 @ 806 MHz on Windows CE 6.0 Pro models

624 MHz on Windows CE 6.0 Core models
Operating Platform
Microsoft Windows CE 6.0 Pro with Microsoft WordPad and Internet Explorer 6.0
Microsoft Windows CE 6.0 Core
Development Environment
Datalogic SDK (C/C++, .NET, JAVA), Wavelink Studio®, DL Mobility Developer Assistant, MCLCollection, Java Virtual Machine
Software Utilities
Datalogic’s Pal Application Library prelicensed
Memory
System Flash: 512 MB (including Backup directory for user data and programs permanent storage) System RAM: 256 MB on all the Windows CE 6.0 Pro models; 128 MB on Windows CE Core models
Memory Expansion
Micro SD card slot compatible with SDHC cards, user-accessible
Scan Options
Depth of Field: 3.5 to 50.0 cm / 1.3 to 19.6 in, depending on bar code density; Minimum Resolution: Linear codes at 4 mils; 2D codes at 5 mils; Scan Rate: 60 frames/sec maximum; Good-Read Feedback: Datalogic’s patented ‘Green Spot’ technology

LINEAR IMAGER Depth of Field: 3.8 to 61.0 cm / 1.5 to 24.0 in, depending on bar code density; Minimum Resolution: 0.127 mm / 4 mils; Scan Rate: 50 scans/sec nominally; Good-Read Feedback: Datalogic’s patented ‘Green Spot’ technology

LASER Depth of Field: 5.0 to 64.0 cm / 2.0 to 25.2 in, depending on bar code density; Minimum Resolution: 0.100 mm / 4 mils; Scan Rate: 104 +/- 12 scans/sec; Good-Read Feedback: Datalogic’s patented ‘Green Spot’ technology
Symbologies supported
Depending on Scan enging used:

1D / LINEAR CODES Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D CODES Aztec Code, Data Matrix, Intelligent Mail, Maxicode, QR Code, Micro QR Code, UPU FICS, USPS 4CB

POSTAL CODES Australian Post, Japanese Post, KIX Post; Planet Code, Postnet, Royal Mail Code (RM4SCC)

STACKED CODES MicroPDF417, PDF417
Keyboards
25 keys, backlit keyboard, 2 programmable lateral keys
Audio
Speaker, integrated microphone
Display
15.6 x 5.7 x 4.0 cm / 6.1 x 2.2 x 1.6 in DISPLAY Reflective TFT daylight readable color display QVGA, 240 x 320 pixels, 2.4 in diagonal, 64 K colors, backlight, touch screen

Corning® Gorilla® Glass 2 (Laser Scanner Only)
Camera
N/A
I/O Ports
Electrical: Integrated RS-232 up to 115.2 Kbps USB: Integrated mini USB connector, Host 1.1 and Client 2.0
Radio Options
WLAN: Summit IEEE 802.11 b/g/n Cisco CCX v4 certified Frequency range: Country dependent, typically 2.4 GHz bands

WPAN: Bluetooth® Wireless Technology IEEE 802.15 Class 2.0 with EDR
Battery
Removable battery pack with rechargeable Lithium-ion batteries 3.7 V 1430/2300 mAh
Battery Life
5.29/8.51 Watt hours
Drop Specification
Withstands drops from 1.2 m / 4.0 ft onto concrete
1000 random falls from 0.5 m / 1.6 ft
Environmental Sealing
IP54
ESD Protection
Operating Environment
-20 to 50 ºC / -4 to 122 ºF
Storage Environment
-20 to 70 ºC / -4 to 158 ºF
EMC/Safety Standards
External Dimensions (WxDxH)
15.6 x 5.7 x 4.0 cm / 6.1 x 2.2 x 1.6 in
Weight
233.0 g / 8.2 oz including standard battery
