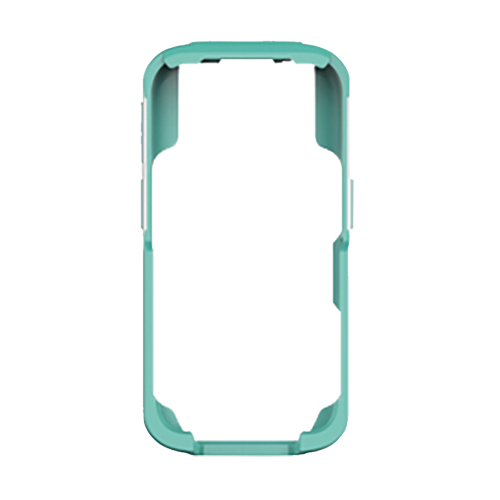

DATALOGIC Rubber Protection Boot for MEMOR 10 11 HC

(Product may vary from image. Rely only on description for purchasing decisions.)
  • DLMM10HC-RBOOT
  • 94ACC0204
  • DATALOGIC
  • MEMOR10
    • Login to view pricing and availability

Rubber Protection Boot for MEMOR 10 11 HC

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Ultra-Ergonomic, compact and robust
  • 5 inch capacitive multi-touch HD display with Dragontrail™ hardened glass
  • Android 8.1 (Oreo) with Google Mobile Services
  • Wireless charging eliminates all contacts on the device and cradle
  • Ruggedized with drop resistance to 1.5m / 5ft to concrete and IP65 sealing
  • Dual band Wi-Fi including the latest 802.11ac standard and 802.11r/k for fast roaming
  • Full suite of cellular connectivity for voice and data, featuring LTE-Advanced/4G+
  • Assisted GPS for location based apps
  • Bluetooth v4.2 short range wireless technology
  • NFC for proximity communications
  • Advanced 2D ultra-slim imager with Datalogic’s patented ‘Green Spot’ technology for visual goodread feedback
  • Datalogic’s SoftSpot™ technology for innovative triggering through the touch display
  • Chemical resistant plastics / enclosure designed to withstand daily cleaning with harsh disinfectant solutions
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment
NameSizeDownload
Memor10 Brochure297kb MEMOR10_brochure.pdf
Memor10 Healthcare Brochure292kb MEMOR10HC_brochure.pdf
User Manual3,374kb memor10_ume.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
Octacore 2 GHz
Real-time Clock
3 Axis accelerometer to detect orientation
Gyroscope to sense angular velocity
Operating Platform
Android 8.1 (Oreo) with GMS
Development Environment
Java and Xamarin SDK available
Software Utilities
Applications:
Datalogic’s SoftSpot technology for configurable soft triggers; Supports Datalogic’s Queue Busting app; Pre-licensed device and browser lockdown powered by 42Gears; Enterprise class PTT offered by Zello
Provisioning: Android Zero Touch enrollment and QR code or NFC Bump Provisioning
Config & Maintenance: Datalogic DXU for device configuration and firmware upgrade from PC
MDM: SOTI MobiControl, VMWare AirWatch, Wavelink Avalanche, 42Gears SureMDM
Terminal Emulation: StayLinked SmartTE, Wavelink Velocity
Memory
eMMC Flash: 32 GB Flash Disk
System RAM: 3 GB
Memory Expansion
Micro-SD card slot: Compatible with Micro SD-HC cards; Data transfer up to 48 Mbps; User-accessible
SIM SLOT MicroSIM Standard size
Scan Options
Advanced 2D ultra slim area imaging technology with image capture
Good-Read Feedback: Datalogic’s patented ‘Green Spot’ technology
Depth of Field: 8.5 to 50.0 cm, depending on bar code density type;
Resolution: VGA (640 x 480 pixels)
Illumination: White LED's
Aiming: 650nm VLD
Field of View: 48º H x 34º V
Print Contrast: Min. 25%
Minimum Element width:
1D Linear; 0.0762 mm / 4 mils
PDF; 0.127 mm / 6.6 mils
Data Matrix; 0.195 mm / 7.5 mils
Symbologies supported
1D/Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes: Aztec Code, Data Matrix, HanXin Code, MaxiCode, MicroQR Code, QR Code, UPU FICS
Postal Codes: Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC),USPS Intelligent Mail
Stacked Codes: Micro-PDF417, PDF417, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
Keyboards
Physical Keys: 2 side scan keys; Power On/Off; Volume Up/Down
3 user programmable Android™ keys
Audio
Speaker (Polyphonic)
Vibration (Software Programable)
Display
5 inch IPS HD resolution 720 x 1280; LED backlight; Touch Screen: 5 points multi-touch capacitive panel with Dragontrail hardened glass.
Ambient Light Sensor: auto adjusts display backlight
Proximity sensor: auto deactivates display when close to face
Camera
Resolution: 13 megapixel; Illumination: User controllable LED flash; Lens: Auto focus
I/O Ports
High Speed USB 2.0 Host and Client with USB Type C connector
Radio Options
Local Area Network (WLAN)
IEEE 802.11 a/b/g/n/ac and 802.11 k/r/v; Frequency range: Country dependent, typically 2.4 GHz and 5 GHz bands
Personal Area Network (WPAN)
Bluetooth wireless technology v4.2 (Classic Bluetooth wireless technology and BLE)
NFC Communication Support for the following standards: ISO14443-4 (type-A, type-B); ISO15693; Mifare; Felica
WWAN / Cellular
LTE-Advanced / 4G+; Cat 6
EMEA and ROW Configuration: GSM: Quad band; CDMA: BC0; WCDMA: B1/5/8; FDD_LTE:B1/3/5/7/8/20/28; TDD_LTE:B38/39/40/41
Global Positioning System (GPS)
Integrated Assisted-GPS (A-GPS) Supported Types: GPS, GLONASS, BeiDou
Battery
Replaceable battery pack with rechargeable Li-Ion batteries; 3.8 V; 4,100 mAh
Wireless charging:
Qi Compliant; 10 Watt fast charging
Battery Life
15.6 Watt hours
Drop Specification
Drop Resistance
Withstands drops from 1.5 m onto concrete (with rubber boot);
Withstands drops from 1.2 m onto concrete (without rubber boot).
Tested onto steel/concrete according to IEC 68-2-32 Method 2 and MIL STD 810G Transit drop test.
Tumbles
Withstands 1000 hits from 0.5 m and 250 hits from 1.0 m per IEC 600-2-32 with rubber boot;
Withstands 600 hits from 0.5 m per IEC 600-2-32 without rubber boot
Environmental Sealing
IP65
Chemical Resistance: Chemical cleanser and industrial oil resistant (both Standard and Healthcare models)
Healthcare Cleanable: Isopropyl Alcohol, Hydrogen Peroxide, Clorox® Bleach;applicable for both the device and cradles
ESD Protection
Operating Environment
-20 to 50 ºC
Storage Environment
-30 to 70 ºC
EMC/Safety Standards
Agency Approvals: The product meets necessary safety and regulatory approvals for its intended use.
Environmental Compliance: Complies to EU RoHS
External Dimensions (WxDxH)
15.5 x 7.8 x 1.87 cm
Weight
285.0 g with battery
