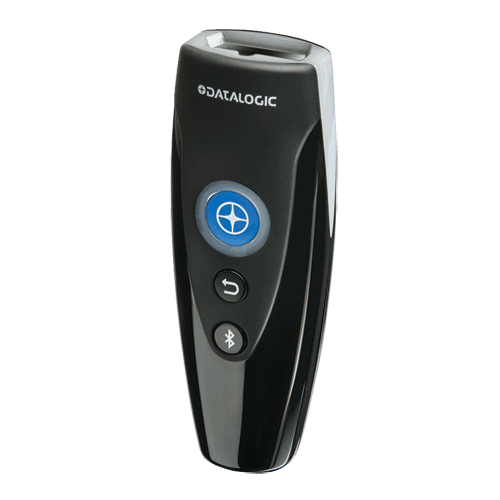

DATALOGIC RIDA DBT6400 - Retail, Hand Held Scanner Series

(Product may vary from image. Rely only on description for purchasing decisions.)

RIDA™ DBT6400 cordless imager with Bluetooth® wireless technology is the ideal workmate for connection with mobile devices

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Outstanding reading performance on 1D/2D printed codes or on mobile phone screens
  • Innovative, unique and compact design for a new and modern operator’s experience
  • Bluetooth wireless technology for simple linking with tablets, smartphones, laptops, notebooks, etc.
  • Compatible with Android, Apple iOS and Windows Mobile devices
  • Vibration for sensitive, polyphonic speaker for audio and Datalogic’s patented ‘Green Spot’ technology for visual good-read feedback
  • Highly visible 4-Dot aimer with center cross for targeted scanning with efficient white illumination
  • Batch Mode capability: 2,000 linear codes stored in memory
  • Disinfectant Ready enclosures treated with anti-microbial additives (ISO22196 compliant)
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
NameSizeDownload
Datasheet315kb dldbt6400_datasheet.pdf

Products available to purchase

 SKUVendorName
DLDBT6400BTB DATALOGICRIDA - Retail Black Bluetooth 2D Pocket Scanner
DLDBT64CHDOCK DATALOGICC-6000 Charger Only Base Black Inc PS & AU Adapter
DLZSC2DBT6X31 DATALOGICRIDA DBT6X 2 DAYS 3 YRS Comprehensive
DLZSN5DBT6X31 DATALOGICRIDA DBT6X 5 DAYS 3 YEARS

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
N/A
Development Environment
Datalogic Aladdin Configuration program
OPOS/JAVAPOS Utilities
Remote Host Download
Operating Platform
Proprietory
Real-Time Clock
Quartz RTC for timestamp
Memory
N/A
Memory Expansion
N/A
Scan Engine
2D Wide VGA Imaging Engine
752 x 480 Pixels
Motion Tolerance 25 IPS
Bar-code Type
1D: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes
2D: Aztec Code, Aztec Mesas, Data Matrix, MaxiCode, QR Code, Micro QR Code, China Han Xin Code
Postal Codes: Australian Post, British Post, Canadian Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC)
Stacked Codes: EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
Keyboards
3 keys total: 2 function keys, 1 scan key
Audio
Vibration; Beepers, Polyphonic
Display
N/A
Camera
N/A
I/O Ports
Micro USB Connection
Radio Options
Bluetooth 4.0 Certified Class 2
Radio Frequency: 2.4 GHz
Radio Range (Open Air): 25.0 m Range distances are measured using the base station. Range with connection to other Bluetooth peripherals may show different results.
Security: Data Encryption; Scanner Authentication
Battery
Rechargeable battery: Lithium-Ion 700mAh
Charging through USB Cable or base Station
Battery Life
3000+ Scans (1 Scan/6 sec) or 5 Hrs
Environmental Sealing
IP50
Mechanical Shock
Withstands drops from 1.5 m onto concrete with Rubber case
ESD Protection
16 kV
External Dimensions (WxDxH)
42.3 x 27.5 x112.5 mm
Weight
85g with Battery
Operating Environment
0 ~ 50°C
Storage Environment
-20 ~ 70°C
Product Compliance
The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
ENVIRONMENTAL COMPLIANCE: Complies to China RoHS; Complies to EU RoHS
LASER CLASSIFICATION Caution Laser Radiation - Do not stare into beam; IEC 64871 Exempt Class
