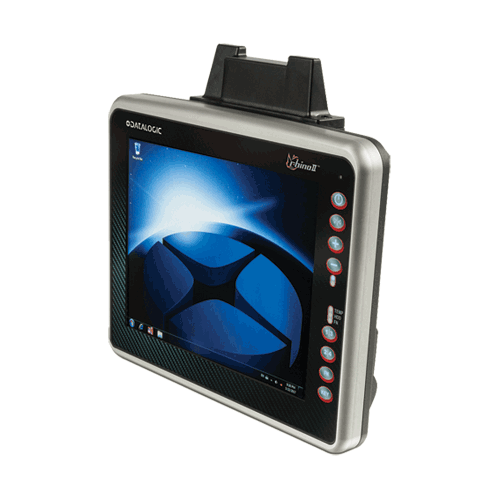

DATALOGIC Rhino II 10.4" 24-48V BT Wifi WEC7

(Product may vary from image. Rely only on description for purchasing decisions.)
  • DLR210-24-BNC
  • 943200003
  • DATALOGIC
  • RHINOii
  • Login to view pricing and availability

10" Blackline, Capacitive Touch - 24-48VDC,WEC7 Quad Core/1.0Ghz processor, 1GB RAM, 16GB SD Flash, Laird/Summit 50 Series 802.11a/b/g/n WiFi, BT 4.0, DC Pwr Cable

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Rugged Vehicle mount mobile Computer
  • Freezer version (WEC7) for cold storage applications
  • Choice of Microsoft or Android Operating Systems
  • 10 inch or 12 inch XGA color display
  • Superior power supply for extreme conditions with optional UPS
  • Wi-Fi: 802.11 a/b/g/n, CCX v4 with diversity antennas, Bluetooth® v4.0 Wireless Technology
  • Anti-glare multi-touch screen, with gloves support (3 mm armored glass on Capacitive models)
NameSizeDownload
Brochure246kb rhinoII_brochure.pdf
User Manual6,024kb rhinoII_ume.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Freescale NXP ARM Quad Core: 1 GHz (WEC7 Standard models); 800 MHz (WEC7 Freezer models);
Intel Atom E3826 Dual Core 1.46 GHz (Win7/10)
Memory
Memory:
WEC7: 1 GB RAM
Win7/10: 4 GB RAM
Storage device(s)
Storage
WEC7: 32 GB SDHC
Win7/10: 32 GB CFast SSD
Display
Resistive/Freezer Model:
10.4 inch SVGA 800x600, 400 NITS
Capacitive/Standard Models:
10.4 inch XGA 1024 x 768, 350 NITS
12.1 inch XGA, 1024 x 768, 500 NITS
Resolution
Resistive/Freezer Model:
10.4 inch SVGA 800x600
Capacitive/Standard Models:
10.4 inch XGA 1024 x 768
12.1 inch XGA, 1024 x 768
Tilt Angle
NA
Touch Panel
Capacitive (all OS); 3 mm, non-reflecting, hardened glass; Gloves support
Resistive, 4 Wire (WEC7/Freezer model only)
I/O Ports
Wireless Communications:
Bluetooth Wireless Technology 4.0
Wifi: 802.11a/b/g/n (2.4GHz & 5 GHz), Cisco CCX v4
Interface Ports:
1 x Ethernet 10/100/1000 Mbps; RJ45;
USB: 2 x USB 2.0 Type A (bottom)
1 x USB 3.0 Type A (bottom) [Win7/10 only]
1 x USB 2.0 Type A (top)
Serial: 2 x RS-232 (bottom); COM1: 5 V on pin 9; COM2: 5/12 V on pin 9
1 x HDMI port (top) [Win7/10 only]
Interface Slots:
1x Mini-PCIe, half or full size slot (full size used for Wi-Fi)
1x CFast for SSD (Win 7/Win 10)
1x SD Card slot for SDHC card (WEC7)
Audio
Optional: downward facing, waterproof
OS Support
WEC7 or
Windows Embedded Standard 7 or
Windows 10 IoT Enterprise 64 bit
Environmental Sealing
IP65/IP67
Operating Environment
-20 to 55 °C (without heater, Capacitive models);
-30 to 55 °C (with heater, minimal condensation using freezer-rated model - 10” only)
Humidity 10 to 90% at 40 °C; non-condensing
Storage Environment
NA
Power Supply
POWER SUPPLY Choice of 12 VDC; 24/48 VDC isolated internal power supplies
BACKUP BATTERY Optional backup battery for up to 30 min.
runtime; 2,500 mAh @ 10.8 VDC; 27 Wh;
Battery charging: 0 to 50 °C
Battery operating: -20 to 50 °C
External Dimensions (WxDxH)
278 x 64 x 223 mm
Weight
10.4" Standard Model: 3.6 Kg
10.4" Freezer Model: 3.4 Kg
12.1": 4.7 Kg
