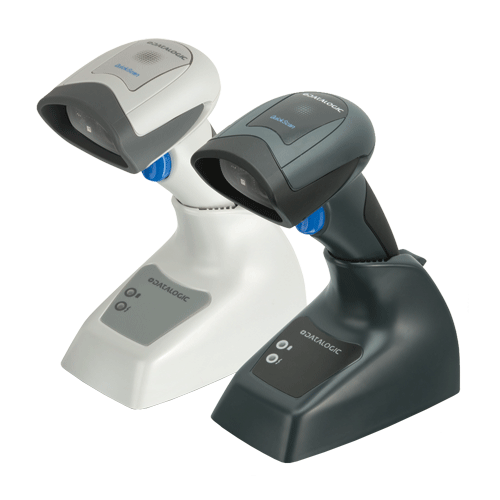

DATALOGIC QuickScan® QBT-2131 Bluetooth Linear Imager Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The QuickScan QBT2131 imager's extra-wide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance. Featuring Bluetooth® Wireless Technology, the QuickScan QBT2131 imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth compliant device. The QBT2131 linear imager can also be connected to any tablet using either iOS or Android™ operating systems via the Bluetooth HID profile.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Cordless 1D Linear Imager Scanner
  • Extra-wide scan angle and extra-long scan line
  • Sharp and highly visible scan line
  • Enhanced depth of field for general purpose scanning applications
  • Bluetooth® Wireless Technology
  • Easy, tool-free, user-replaceable, long-lasting lithium-ion battery
  • New battery package allows simultaneous change of charging contacts during battery replacement
  • Alternative battery recharging through USB /microUSB cable
  • Datalogic's patented 'Green Spot' technology for good-read feedback
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
NameSizeDownload
Datasheet94kb qbt2131_brochure.pdf

Products available to purchase

 SKUVendorName
DLQBT2131BKIT-U DATALOGICQuickscan QBT 2131 1D Imager USB Kit Black
CAB-DL350 DATALOGICCable RS232 Straight Power P9 and RPE
AD-DL12VR DATALOGICPower supply 12v DC for Datalogic with Power cord
DLPS2-USB DATALOGICPS2 Wedge to USB Adapter

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
IT3820IT-3820 Wireless Linear imager scanner

Parts documents

Parts layout details

Specifications
Scan Engine
Linear Imager
Light Source
Red LED 610 - 650 nm
Scan Pattern
Single Line
Scan Rate
400 reads/sec
Motion Tolerance
N/A
Image Capture
N/A
Capture Area
N/A
Contrast Ratio
Minimum 25%
Resolution
0.102 mm / 4 mils (Linear Barcodes)
Depth of field
4 mils - 3.0 to 11.0 cm
5 mils - 2.0 to 15.0 cm
7.5 mils - 2.0 to 25.0 cm
10 mils - 2.0 to 36.0 cm
13 mils - 1.0 to 45.0 cm
20 mils - 4.0 to 70.0 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
+/- 45°
Pitch Angle
+/- 65°
Skew Angle
+/- 70°
Ambient Light Immunity
0 to120,000 Lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectiona; UPC A/E Composites
Programming Method
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Beeper (Adjustable Tone and Volume)
Datalogic’s "Green Spot" Good read feedback
Good read LED
Operating Modes
Trigger, Auto-Trigger
Communication Type
Bluetooth Wireless Technology
Communication Technology
Bluetooth Wireless technology
Piconet: Max. Readers per Radio Receiver Using Commercial Dongle: 7; Using Cradle: 1
Profiles: HID (Human Interface Device), SPP (Serial Port Profile)
Protocol: Bluetooth 3.0 Certified Class 2
Radio Frequency: 2.4 GHz
Radio Range (Open Air) 25.0 m / 82.0 ft
Range distances are measured using the base station. Range with connection to other Bluetooth peripherals may show different results.
Security Data Encryption: Scanner Authentication
Interfaces
To Base : USB, Keyboard Wedge & RS232 Multi Interface
Supply Voltage
4.75 - 14 VDC
Battery: Li-ion 1400mAh, Charge time with external Power supply 4 Hrs at 12V
Reads per charge: 30000+
Power Consumption
N/A
Drop Specification
Designed to withstand repeated 1.5m drops to concrete
Environmental Sealing
IP42
ESD Protection
+/- 16 kV air discharge
Operating Environment
0° ~ 50°C, Relative Humidity up tp 90% none condensing
Storage Environment
-40° ~ 70°C, Relative Humidity up tp 90% none condensing
EMC/Safety Standards
AGENCY APPROVALS:
The product meets necessary safety and regulatory approvals for its intended use.
The Quick Reference Guide for this product can be referred to for a complete list of certifications.
ENVIRONMENTAL COMPLIANCE:
Complies to China RoHS; Complies to EU RoHS
External Dimensions (WxDxH)
Scanner: 41 x 91 x 163 mm
Weight
Scanner 190 g
Base 221 g
