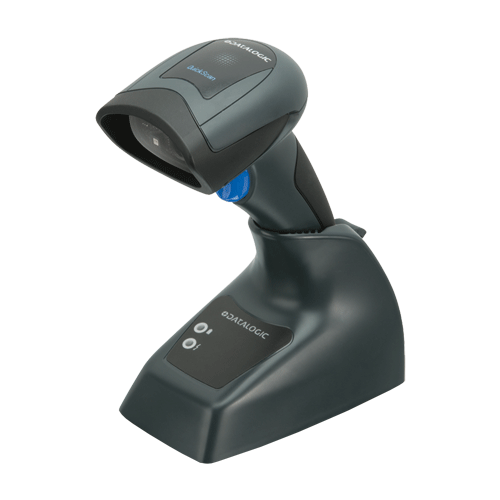

DATALOGIC Quickscan QBT 2131 1D Imager USB Kit Black

(Product may vary from image. Rely only on description for purchasing decisions.)
  • DLQBT2131BKIT-U
  • QBT2131-BK-BTK1
  • DATALOGIC
  • QBT2131
    • Login to view pricing and availability

Quickscan QBT 2131 1D Imager USB Kit Black

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Cordless 1D Linear Imager Scanner
  • Extra-wide scan angle and extra-long scan line
  • Sharp and highly visible scan line
  • Enhanced depth of field for general purpose scanning applications
  • Bluetooth® Wireless Technology
  • Easy, tool-free, user-replaceable, long-lasting lithium-ion battery
  • New battery package allows simultaneous change of charging contacts during battery replacement
  • Alternative battery recharging through USB /microUSB cable
  • Datalogic's patented 'Green Spot' technology for good-read feedback
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
NameSizeDownload
Datasheet94kb qbt2131_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
IT3820IT-3820 Wireless Linear imager scanner

Parts documents

Parts layout details

Specifications
Scan Engine
Linear Imager
Light Source
Red LED 610 - 650 nm
Scan Pattern
Single Line
Scan Rate
400 reads/sec
Motion Tolerance
N/A
Image Capture
N/A
Capture Area
N/A
Contrast Ratio
Minimum 25%
Resolution
0.102 mm / 4 mils (Linear Barcodes)
Depth of field
4 mils - 3.0 to 11.0 cm
5 mils - 2.0 to 15.0 cm
7.5 mils - 2.0 to 25.0 cm
10 mils - 2.0 to 36.0 cm
13 mils - 1.0 to 45.0 cm
20 mils - 4.0 to 70.0 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
+/- 45°
Pitch Angle
+/- 65°
Skew Angle
+/- 70°
Ambient Light Immunity
0 to120,000 Lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectiona; UPC A/E Composites
Programming Method
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Beeper (Adjustable Tone and Volume)
Datalogic’s "Green Spot" Good read feedback
Good read LED
Operating Modes
Trigger, Auto-Trigger
Communication Type
Bluetooth Wireless Technology
Communication Technology
Bluetooth Wireless technology
Piconet: Max. Readers per Radio Receiver Using Commercial Dongle: 7; Using Cradle: 1
Profiles: HID (Human Interface Device), SPP (Serial Port Profile)
Protocol: Bluetooth 3.0 Certified Class 2
Radio Frequency: 2.4 GHz
Radio Range (Open Air) 25.0 m / 82.0 ft
Range distances are measured using the base station. Range with connection to other Bluetooth peripherals may show different results.
Security Data Encryption: Scanner Authentication
Interfaces
To Base : USB, Keyboard Wedge & RS232 Multi Interface
Supply Voltage
4.75 - 14 VDC
Battery: Li-ion 1400mAh, Charge time with external Power supply 4 Hrs at 12V
Reads per charge: 30000+
Power Consumption
N/A
Drop Specification
Designed to withstand repeated 1.5m drops to concrete
Environmental Sealing
IP42
ESD Protection
+/- 16 kV air discharge
Operating Environment
0° ~ 50°C, Relative Humidity up tp 90% none condensing
Storage Environment
-40° ~ 70°C, Relative Humidity up tp 90% none condensing
EMC/Safety Standards
AGENCY APPROVALS:
The product meets necessary safety and regulatory approvals for its intended use.
The Quick Reference Guide for this product can be referred to for a complete list of certifications.
ENVIRONMENTAL COMPLIANCE:
Complies to China RoHS; Complies to EU RoHS
External Dimensions (WxDxH)
Scanner: 41 x 91 x 163 mm
Weight
Scanner 190 g
Base 221 g
