DATALOGIC QuickScan® L QD-2300 Laser Barcode Reader *** Obsolete ***

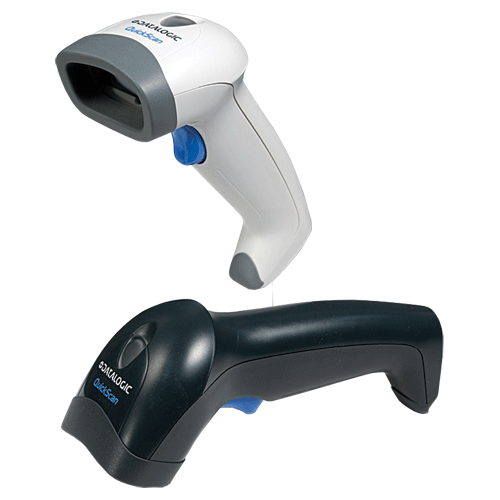

(Product may vary from image. Rely only on description for purchasing decisions.)

The Datalogic QuickScan L bar code reader is a bar code scanner with laser technology at an affordable price. The QuickScan L reader is the perfect solution for general purpose users who prefer laser scanning technology and need to read bar codes at nominal distances.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Corded Laser Bar code reader
  • Light Weight Scanner: 128 g
  • Gun Shaped Ergonomics: Easy to handle and use
  • Multiple Interfaces: Keyboard Wedge, RS-232 and USB
  • User Replaceable Scanner Window: Additional window kits can be ordered to replace scratched windows
  • Same Cables as Gryphon™ and Heron™: Provides a migration path for existing Datalogic handheld readers
  • Supports Linear Bar Codes and GS1 DataBar™ Symbologies: Designed for general purpose bar code scanning applications
  • Gooseneck Stand Available: Allows the customer the option of using the scanner in a hands-free mode (available in white or black)
NameSizeDownload
Brochure416kb dlqd2330_brochure.pdf
Quick Setup Guide2,936kb dlqd2300_qrg.pdf
Product Reference Guide1,173kb dlqd2300_prg.pdf
Windows Utility Software43,917kb DL_SU-ALADDINv16006.zip

Products available to purchase

 SKUVendorName
AD-DL5VR06N DATALOGIC5.2V 650 mA Power Supply
CAB-DL350 DATALOGICCable RS232 Straight Power P9 and RPE
CAB-DL365 DATALOGICPS2 12" Coile Cable for Gryph
AD5VR10N GOODSONPlug Pack 5V 1.0A Ctr Neg 2.1mm Jack

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
LS2208LS-2208 Handheld Laser Scanner
MS9520MS-9520/9540 Voyager® Handheld Laser Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
Laser
Light Source
650 nm VLD
Scan Pattern
Single Line
Scan Rate
100 reads/sec
Motion Tolerance
N/A
Contrast Ratio
Minimum 30%
Resolution
0.130 mm / 5 mils (Linear Barcodes)
Depth of field
5 mils - 2.0 to 13.0 cm
7.5 mils - 1.0 to 20.0 cm
10 mils - 0.5 to 22.0 cm
13 mils - 0.5 to 24.5 cm
20 mils - 3.0 to 27.0 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
+/- 30°
Pitch Angle
+/- 65°
Skew Angle
+/- 60°
Ambient Light Immunity
0 to 64,575 Lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes & China Post
Programming Method
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Beeper (Adjustable Tone)
Good read LED
Operating Modes
Trigger
Communication Type
Cabled
Interfaces
USB, Keyboard Wedge, Wand & RS232 Multi Interface
Supply Voltage
5 VDC +/- 10%
Power Consumption
Operating (Typical): 100 mA @ 5 VDC
Standby/Idle (Typical): <35 mA @ 5 VDC
Drop Specification
Designed to withstand repeated 1.5m drops to concrete
Environmental Sealing
IP42
ESD Protection
+/- 20 kV air discharge
Operating Environment
0° ~ 50°C, Relative Humidity 5 - 95% none condensing
Storage Environment
-40° ~ 70°C, Relative Humidity 5 - 95% none condensing
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use.
Complete list in Quick Reference guide
Complies to EU RoHS & China RoHS
Caution Laser Radiation - Do not stare into beam; EN 60825-1 Class 2; IEC 60825-1 Class 2
External Dimensions (WxDxH)
Scanner: 66 x 71 x 170 mm
Weight
Scanner 127.6 g
