DATALOGIC QuickScan® I QD-2100 Linear Imager Scanner *** Obsolete ***

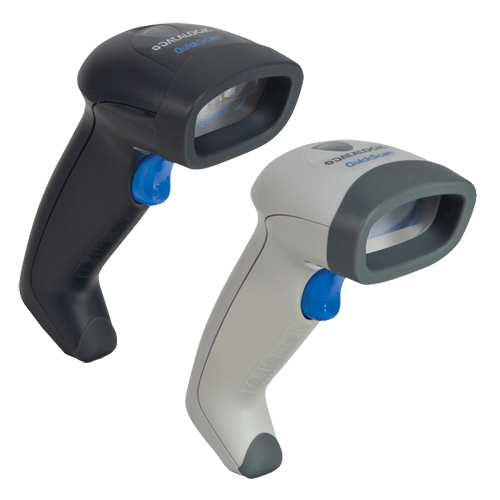

(Product may vary from image. Rely only on description for purchasing decisions.)

The QuickScan reader series is Datalogic Scanning’s value line of general purpose handheld data collection products. The QuickScan I QD2100 linear imaging reader is an entry level product that is perfect for use in retail and office environments plus activities associated with couriers and postal services.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Handheld Linear Imager Scanner
  • Datalogic 'Green Spot' for good read feedback
  • User replaceable scan window
  • Two multi-interface options support the most popular interface combinations
  • Supports GS1 DataBar™ codes
  • Remote host download functions (Model QD2110)
  • Water and Particulate Sealing Rating: IP42
  • Drop resistance to 1.5 m
NameSizeDownload
Datasheet315kb dlqd2100_datasheet.pdf
Quick Setup Guide1,849kb dlqd2100_qrg.pdf
Product Reference Guide1,216kb dlqd2100_prg.pdf
Windows Utility Software43,917kb DL_SU-ALADDINv16006.zip

Products available to purchase

 SKUVendorName
AD-DL5VR06N DATALOGIC5.2V 650 mA Power Supply
CAB-DL350 DATALOGICCable RS232 Straight Power P9 and RPE
CAB-DL365 DATALOGICPS2 12" Coile Cable for Gryph
AD5VR10N GOODSONPlug Pack 5V 1.0A Ctr Neg 2.1mm Jack

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Linear Imager
Light Source
Red LED 610 - 650 nm
Scan Pattern
Single Line
Scan Rate
270 reads/sec
Motion Tolerance
N/A
Contrast Ratio
Minimum 15%
Resolution
0.102 mm / 4 mils (Linear Barcodes)
Depth of field
4 mils - 2.0 to 11.0 cm
5 mils - 1.5 to 15.0 cm
7.5 mils - 0.8 to 25.0 cm
10 mils - 0.8 to 38.0 cm
13 mils - 1.9 to 45.0 cm
20 mils - 2.5 to 65.0 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
+/- 45°
Pitch Angle
+/- 65°
Skew Angle
+/- 65°
Ambient Light Immunity
0 to100,000 Lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectiona; UPC A/E Composites
Programming Method
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Beeper (Adjustable Tone and Volume)
Datalogic’s "Green Spot" Good read feedback
Good read LED
Operating Modes
Trigger
Communication Type
Cabled
Interfaces
QD2130: USB, Keyboard Wedge, Wand & RS232 Multi Interface
QD2110: RS-232 / IBM 46XX / USB Multi-Interface
Supply Voltage
QD2130: 5 VDC
QD2110: 4-14 VDC
Power Consumption
Operating (Typical): 340 mA @ 5 VDC
Standby/Idle (Typical): 190 mA @ 5 VDC
Drop Specification
Designed to withstand repeated 1.5m drops to concrete
Environmental Sealing
IP42
ESD Protection
+/- 20 kV air discharge
Operating Environment
0° ~ 50°C, Relative Humidity 5 - 95% none condensing
Storage Environment
-40° ~ 70°C, Relative Humidity 5 - 95% none condensing
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use.
Complete list in Quick Reference guide
Complies to EU RoHS & China RoHS
LED Classification: IEC 60825-1 Class 1 LED Product
External Dimensions (WxDxH)
Scanner: 66 x 71 x 170 mm
Weight
Scanner 121.9 g
