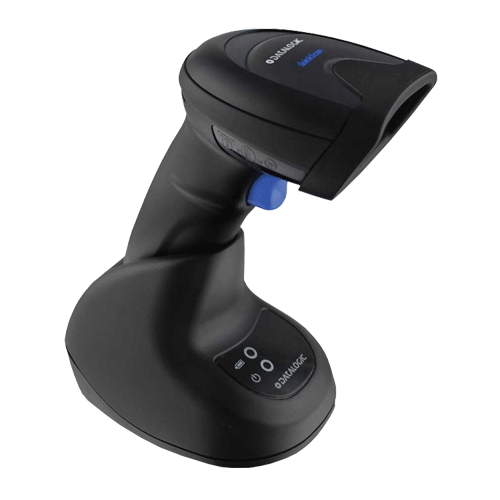

DATALOGIC QuickScan® I QBT-2500 Cordless Bluetooth 2D Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The QuickScan QBT2500 Bluetooth models provide maximum flexibility and solve most end user applications by increasing both the autonomy and the radio range. In other words, you have two weapons instead of one! With the addition of these 2 cordless models, the entire QuickScan 2500 Series is now available, featuring the distinctive design of Datalogic’s general purpose handheld scanners while providing the latest USB-C connectivity.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
60 months
  • Cordles 2D Imaging Scanner
  • Bluetooth 4.0 Wireless Technology with up to 50 m range
  • Compatible with Android and iOS devices through the Bluetooth HID profile
  • Long lasting Lithium-Ion battery
  • Reduced visual stress with LED-based aiming system
  • Datalogic’s patented ‘Green Spot’ technology for good-read feedback
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
NameSizeDownload
Datasheet480kb quickscan_2500_series_datasheet.pdf

Products available to purchase

 SKUVendorName
DLQBT2500BKIT-U DATALOGICQuickScan QBT 2500 2D Imager USB Kit Black
CAB-DL350 DATALOGICCable RS232 Straight Power P9 and RPE
AD-DL12VR DATALOGICPower supply 12v DC for Datalogic with Power cord
CAB-DLCOBUSB DATALOGICStraight USB Cable for Cobalto HD3130 QM Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
QBT2430Quickscan I QBT2400

Parts documents

Parts layout details

Specifications
Scan Engine
Area Imager
Light Source
Aiming: Blue LED emission 468 nm
Illumination: Red LED emission 617 nm
Scan Pattern
QD2500, QM2500, QBT2500: 1 Megapixel (1280 x 800 pixels)s
Scan Rate
Motion Tolerance
30 IPS
Image Capture
Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2
Capture Area
N/A
Contrast Ratio
QD2500, QM2500, QBT2500: minimum 15%
Resolution
QD2500, QM2500, QBT2500:
1D Linear: 0.077 mm / 3 mils;
PDF417: 0.077 mm / 3 mils;
Data Matrix: 0.127 mm / 5 mils;
QR Code: 0.17 mm / 6.7 mils
Depth of field
Code 39: 5 mils: 0.5 to 25.0 cm
Code 39: 10 mils: 0.5 to 38.0 cm
Data Matrix: 10 mils: 0.5 to 21.5
EAN/UPCA: 13 mils: 0.5 to 51.0 cm
PDF417: 6.7 mils: 0.5 to 21.0 cm
QR Code: 20 mils: 0 to 37.0 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
360°
Pitch Angle
+/- 65°
Skew Angle
+/- 65°
Ambient Light Immunity
0 - 110,000 Lux
Symbologies supported
1D / Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot code
Postal Codes: Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Digital Watermarking: Digimarc Barcodes (QD2500, QM2500, QBT2500 only)
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Remote host download
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Scanner Indicators:
Good Read LED
"Green spot" on the code
Adjustable tone beeper
Communication Type
Bluetooth® Cordless
Communication Technology
Bluetooth Wireless Technology
Profiles: SPP (Serial Port Profile); Protocol: Bluetooth 4.0
Certified Class 1; Radio Frequency: 2.4 GHz; Radio Range (Open Air): 50.0 m / 164 ft; Range distances are measured using the base station. Range with connection to other Bluetooth peripherals may show different results.
Security: Data Encryption; Scanner Authentication
Interfaces
BC2090: USB Type C / USB / RS-232 Multi-Interface
Supply Voltage
5V+/-5% (Scanner) in Type-C Port
4.5 – 14 VDC +/- 5% (Cradle BC2090)
Battery Type: Lithium-Ion: 3250 mAh
Charge Time (Scanner only): Type-C External Power: 3 Hours;
Charge Time (via Cradle): External Power: 4 Hours @ 12 VDC;
Reads per Charge: 115,000
Power Consumption
Charging (Typical): Scanner only: 500mA @ 3.7 V (Operative)
Cradle only (BC2090): 45 mA @ 5 V (Operative)
with external Power supply
Standby/Idle: Typical 2.5mA @ 5VDC
Drop Specification
Withstands repeated drops from 1.5 m onto a concrete surface
Environmental Sealing
IP52
ESD Protection
+/- 16 kV air discharge
Operating Environment
0° ~ 50°C, Relative Humidity 5- 95% none condensing
Storage Environment
-40° ~ 70°C, Relative Humidity 5-95% none condensing
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use.
Complete list in Quick Reference guide
Complies to EU RoHS & China RoHS
External Dimensions (WxDxH)
Scanner: 68 x 107 x 159mm
Weight
Reader 206.5 g including battery
Cradle: 230 g
