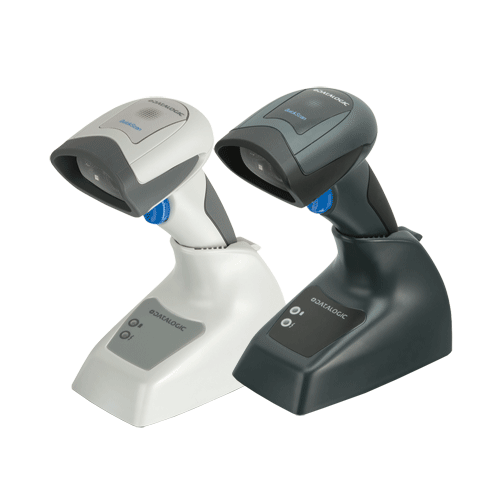

DATALOGIC QuickScan® I QBT-2400 Cordless Bluetooth 2D Scanner *** Obsolete ***

(Product may vary from image. Rely only on description for purchasing decisions.)

Ideally suited for applications at the point-of-sale (POS), the QuickScan QBT2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code. Featuring Bluetooth® Wireless Technology, the QuickScan QBT2400 2D imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v3.0 compliant device.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Cordles 2D Imaging Scanner
  • Bluetooth Wireless Technology with up to 25 m range
  • Compatible with Android and iOS devices through the Bluetooth HID profile
  • Easy, tool-free, user-replaceable long lasting Lithium-Ion battery
  • Alternative battery recharging through USB / Micro USB cable
  • Latch mechanism secures the reader in the cradle providing stable mobility for use on carts
  • Reduced visual stress with LED-based aiming system
  • Datalogic’s patented ‘Green Spot’ technology for good-read feedback
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
NameSizeDownload
Brochure93kb dl_qbt2400_brochure.pdf
Quick Setup Guide2,203kb dlqbt24xx_qrg.pdf
Product Reference Guide10,577kb dlqd24xx_qm24xx_qbt24xx_prg.pdf
Windows Utility Software43,917kb DL_SU-ALADDINv16006.zip

Products available to purchase

 SKUVendorName
CAB-DL350 DATALOGICCable RS232 Straight Power P9 and RPE
AD-DL12VR DATALOGICPower supply 12v DC for Datalogic with Power cord
DLQM2430BRBATT DATALOGICRemovable Battery Pack Black for QM QBT21 24xx
CAB-DL408 DATALOGICRS232 Coiled Cable DB9F with Power Inlet & pin 9

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Area Imager
Light Source
Aiming: 2 Blue LED's
Illumination: Red LED 610-650 nm
Scan Pattern
Wide VGA 752 x 480 Pixels
Scan Rate
Motion Tolerance
25 IPS
Image Capture
Capture Area
N/A
Contrast Ratio
25% Minimum reflective difference
Resolution
0.102mm / 4 mils
Depth of field
Code 39: 5 mils - 0.5 to 15.0 cm
Data Matrix: 10 mils - 2.0 to 16.0 cm
EAN-13: 13 mils - 0.5 to 35.0 cm
PDF417: 6.6 mils - 2 to 15.0 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
360°
Pitch Angle
+/- 65°
Skew Angle
+/- 60°
Ambient Light Immunity
0 - 100,000 Lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes
2D:Aztec Code; Aztec Mesas; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Postal Codes: Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Korea Post
Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Remote host download
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Scanner Indicators:
Good Read LED
"Green spot" on the code
Adjustable tone beeper
Communication Type
Bluetooth® Cordless
Communication Technology
Bluetooth 3.0 Certified Class 2, Radio frequency 2.4 GHz
Radio Range (open Air): Class 2 exceeds 25 m (with Base station)
Piconet, maximum readers per base:1
HID or Serial Profile
Security: Data encryption, Scanner Authentication
Interfaces
To Cradle: RS-232/USB/KBW Multi-Interface
Supply Voltage
Battery: Li-ion 1400 mAh
Charge Time with external power: <3Hrs @ 12VDC
Reads per Charge: 30,000+
4.75 ~ 14.0 VDC
Power Consumption
Charging : Typical < 8W
Operating : Typical 2.5W @5VDC
with external Power supply
Standby/Idle: Typical 2.5mA @ 5VDC
Drop Specification
Withstands repeated drops from 1.5 m onto a concrete surface
Environmental Sealing
IP42
ESD Protection
+/- 16 kV air discharge
Operating Environment
0° ~ 50°C, Relative Humidity 5- 95% none condensing
Storage Environment
-40° ~ 70°C, Relative Humidity 5-95% none condensing
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use.
Complete list in Quick Reference guide
Complies to EU RoHS & China RoHS
External Dimensions (WxDxH)
Scanner: 41 x 91 x 163mm
Weight
Reader 200 g including battery
Cradle: 230 g
