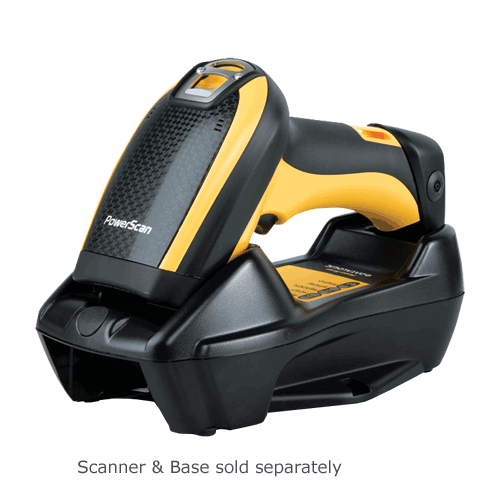

DATALOGIC PowerScan™ PBT9300 Industrial Mobile Bluetooth Laser Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The PowerScan™ PBT9300 laser scanner features standard Bluetooth® wireless technology combined with the outstanding reliability and reading performance found in all PowerScan products.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Powerscan Bluetooth industrial Laser Scanner
  • Bluetooth 3.0 Compliant: Class 1
  • Supports Bluetooth wireless technology SPP and HID profiles
  • Optics available in Standard Range and Auto Range
  • Datalogic 3GL™ and loud beeper for good-read feedback
  • User replaceable lithium-ion battery
  • Water and particulate sealing rating: IP65
  • Drop resistance to 2.0 m
NameSizeDownload
Datasheet130kb dlpbt9300-brochure.pdf

Products available to purchase

 SKUVendorName
DLBC9030B-BT DATALOGICBase Charger for PBT9x00 Bluetooth Scanner
CAB-DL479 DATALOGICCAB-479 RS232 9P Female coiled 7.6m
DLPS9000QC DATALOGICMC-9000 Multi-Charger 4 Slots (no Power Supply)
AD-DL12VR DATALOGICPower supply 12v DC for Datalogic with Power cord
DLHLS8000 DATALOGICPwrScan 8x Universal Holster
CAB-DL433 DATALOGICRS232 DB9F cable1.8m Power inlet & Pin 9
CAB-DL438 DATALOGICUSB A Straight cable for PM8300 9500
CAB-DL436 DATALOGICWedge PS 2 Straight Cable

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Laser
Light Source
Aiming: 630 - 680 VLD activated by double click trigger
Scan Pattern
Single Line
Scan Rate
PBT9300: 104 +/- 12 scans/sec
PBT9300AR: 35 +/- 5 scans/sec
Motion Tolerance
N/A
Contrast Ratio
25% Minimum reflective difference
Resolution
PD9300: 0.076 mm / 3 mils
PD9300AR: 0.190 mm / 7.5 mils
Depth of field
PBT9300 code39:
5 mils - 1.5 to 28 cm
7.5 mils - 1.5 to 42 cm
10 mils - 2.0 to 50 cm
20 mils - 2.0 to 110 cm
40 mils - 2.0 to 160 cm

PBT9300AR:
7.5 mils - 9.0 to 50 cm
10 mils - 14 to 85 cm
15 mils - 15 to 155 cm
20 mils - 15 to 220 cm
40 mils - 20 to 340 cm
55 mils - 25 to 420 cm
Reflective
70 mils up to 9 m
100 mils up to 11.5 m
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
PBT9300: +/- 35°
PBT9300AR: +/- 10°
Pitch Angle
PBT9300: 40°
PBT9300AR: 60°
Skew Angle
+/- 65°
Ambient Light Immunity
Immume to light exposure in office/facilitie and direct exposure to sunlight
Symbologies supported
PBT9300: GS1 DataBar™ linear codes, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 128, EAN 128, Code 39, Code 39 Full ASCII, Code 39 CIP, Code 32, Codabar, Interleaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, Code 11, MSI, Plessey, Code 93, Follet 2/5, Code 4, Code 5, Datalogic 2 of 5, Codablock F
PBT9300AR: GS1 DataBar™ linear codes, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code128, EAN 128, Code 39, Code 39 Full ASCII, Code32, Codabar, Interleaved 2 of 5, Standard 2 of 5, MSI, Code 93
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Indicators/Controls
PM8300: No Display, 1 x Scan Key
PM8300-D: Display 4 Lines x 16 Collumns, 1 Scan Key & 3 Key Keypad
PM8300-DK: Display 4 Lines x 16 Collumns, 1 Scan Key & 16 Key Keypad
Beepers
Datalogic’s 3GL™ (Three Green Lights) technology and loud beeper for good read feedback
Datalogic ‘Green Spot’ on the Code
Dual good read LED's
Communication Type
Bluetooth® Cordless
Communication Technology
Bluetooth 3.0 Certified Class 1 Radio frequency 2.4 to 2.48 GHz
Radio Range (open Air): Class 1 up to 100 m (with Base station)
Piconet, maximum readers per base:7
HID or Serial Profile
Security: Data encryption, Scanner Authentication
Interfaces
to base BC9030-BT:
USB: OEM, USB COM, USB HID Keyboard
RS232
KBW
Optional Ethernet
Supply Voltage
Battery: 2150 mAh Li-ion rechargeable, user replacable
Charge time with external power supply: 4 Hours
Charge time with Host power: 10 Hours
Reads per full charge: 50,000+
Input Voltage for Charge/Communication Base: 10 -30 VDC
POT: 5 VDC +/-10%
Power Consumption
External Power Supply: max. 10W (charging)
POT: max. 500mA (charging)
Drop Specification
Designed to withstand 50 x 2M drops to concrete
Environmental Sealing
IP65
ESD Protection
20 kV
Operating Environment
-20° ~ 50°C, Relative Humidity up tp 95% none condensing
Storage Environment
-40° ~ 70°C, Relative Humidity up tp 95% none condensing
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use.
Complete list in Quick Reference guide
Complies to EU RoHS
Laser Classification: CDRH Class II, IEC 60825-1 Class 2
External Dimensions (WxDxH)
PBT9300: 74 x 110 x 212 mm
Cradle: 95 x 240 x 108 mm
Weight
PBT9300: 405 g
PBT9300-AR: 435 g
Cradle: 380 g
