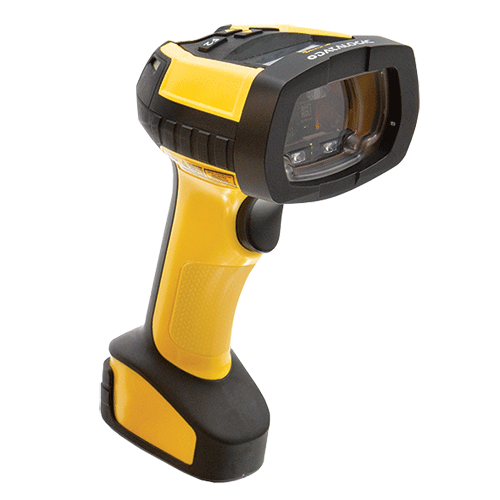

DATALOGIC PowerScan Mobile 9600HP with Disp Rem Batt

(Product may vary from image. Rely only on description for purchasing decisions.)
  • DLPM9600DHP
  • PM9600-DHP433RB
  • DATALOGIC
  • PM9600
    • Login to view pricing and availability

PowerScan PM9600, High Performance, 433MHz, Display, Removable BatteryScanner Only

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Snappy omnidirectional reading on 1D, stacked and 2D codes, postal codes
  • Standard Range and High Performance models
  • Water and Particulate Sealing Rating: IP65 and IP67; Cradle IP65; 10 million hits trigger
  • Center of gravity design
  • Modular cradle design allowing interface expansion
  • White light illumination
  • High visibility OLED Display with 4-Keys /16-Keys keypad options
  • Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good-read feedback
  • Datalogic’s Motionix™ motion-sensing technology
  • Wireless Charging reducing total cost of ownership
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI.
NameSizeDownload
Brochure272kb pm9600_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Area Imager
Light Source
Aiming: 630 - 670 VFD (Visible Laser Diode)
Illumination: LED Array
Scan Pattern
1280 x 1024 Pixels
Scan Rate
Motion Tolerance
N/A
Image Capture
Graphic Formats: BMP, JPEG, TIFF
GreyScale: 256, 16, 2, JPEG, TIFF
Capture Area
N/A
Contrast Ratio
15% Minimum reflective difference
Resolution
SR: 1D Codes: 3 mil; 2D Codes: 6 mil
HP: 1D Codes: 2.5 mil; 2D Codes: 4 mil
Depth of field
SR Models
Code 128
5 mils: 6.4 to 30.9 cm
20 mils: 4 to 103.7 cm
40 mils: 5.5 to 175 cm
EAN/UPC 13 mils: 4 to 67.5 cm
DataMatrix 10 mils: 6 to 30 cm

HP Models
Code 128
2.5 mils: 6.3 to 11.5 cm
5 mils: 3.8 to 41 cm
40 mils: 5.5 to 242.9 cm
EAN/UPC 13 mils: 4 to 120 cm
PDF417 10 mils: 0.5 to 46.1 cm
DataMatrix 10 mils: 4.2 to 32 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
360°
Pitch Angle
+/- 52°
Skew Angle
+/- 52°
Ambient Light Immunity
0 to100,000 Lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot code
Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese
Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites

Digital Watermarking Digimarc Barcodes (HP and DC models)
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
PM9600: No Display, 1 x Scan Key
PM9600-D: Display 4 Lines x 16 Collumns, 1 Scan Key & 3 Key Keypad
PM9600-DK: Display 4 Lines x 16 Collumns, 1 Scan Key & 16 Key Keypad
Beepers
Datalogic’s 3GL™ (Three Green Lights) technology and loud beeper for good read feedback
Datalogic ‘Green Spot’ on the Code
Dual good read LED's
Communication Type
Datalogic Star Cordless System™
Communication Technology
433.92 Mhz Radio
Effective radiated power: < 10mW
Range (open Air): up to 50 m, low speed 100 m
Seamless roaming
Two way communications
Point to Point or Multi-point configuration
up to 16 Scanners to a base 2-way Communication
Interfaces
to base:
RS-232 / USB / Keyboard Wedge Multi-Interface /
Ethernet and Industrial Protocols
Supply Voltage
Battery: 3350 mAh Li-ion rechargeable
Charge time with external power supply: 2.5 Hours @95%, 3.2 Hours 100%
Reads per full charge: 80,000
Input Voltage for Charge/Communication Base: 10 -30 VDC
POT: 5 VDC +/-10%
Power Consumption
Charging (Typical) < 15 W
Scanner only: 480 mA @ 3.7 V (Operative)
Cradle only: 150 mA @ 5 V (Operative)
Drop Specification
Withstands 50 drops from 2.5 m @ 20 °C
Withstands 50 drops from 2.0 m @ -20 °C
Environmental Sealing
IP65
ESD Protection
+/- 20 kV air discharge
Operating Environment
-20° ~ 50°C, Relative Humidity up tp 95% none condensing
Battery Charging: 0 to 40°C
Storage Environment
-40° ~ 70°C, Relative Humidity up tp 95% none condensing
EMC/Safety Standards
China RoHS, EU RoHS, Complies to R.E.A.C.H, CDRH Class II, IEC 60825 Class 2, IEC 62471 Class 1 LED Exempt
External Dimensions (WxDxH)
PM9600: 79 x 140 x 198 mm
Weight
PM9600: 425 g
PM9600-D: 445 g
PM9600-DK: 455 g
