DATALOGIC PowerScan® M9300 Industrial Mobile Laser Scanner Series

(Product may vary from image. Rely only on description for purchasing decisions.)

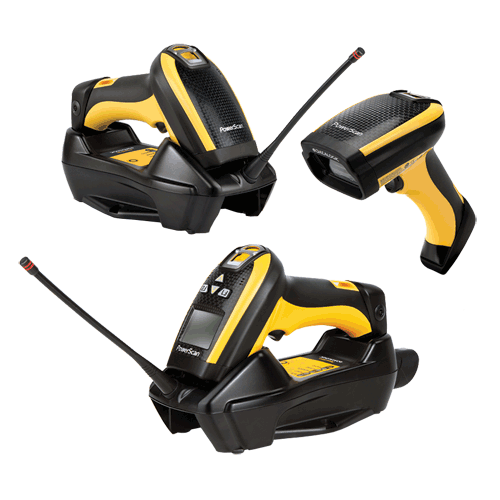

The PowerScan™ PM9300 series includes different models able to satisfy all customers’ needs; the PM9300 is the basic cordless model, the PM9300-D intermediate model includes a display and 4-key keypad, and the ultimate PM9300-DK model features a display with a full 16-key keyboard. The PM9300-DK model significantly increases the sophistication of interaction with the host system and opens up new potential uses of the scanner, making it suitable for applications that would normally require a more expensive portable data terminal.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Cordless Industrial Handheld Laser Scanner
  • Reads most common linear bar codes including GS1 Databar
  • Standard Range (up to 1.6 m) and Auto Range (up to11.5 m) optic models available
  • 433 MHz STAR Radio System
  • Up to 50 m Range
  • 100% compatible with STAR Cordless System™
  • Available with or without Display
  • Removable battery
  • Drop resistance to 2 m
  • User interface: loud beeper and Datalogic 3GL™good read feedback Good read LED, "Green Spot" on the code
  • Built-in multiple interface to base (RS-232, Keyboard Wedge, Wand and USB)
NameSizeDownload
Datasheet151kb dlpm9300_datasheet.pdf

Products available to purchase

 SKUVendorName
DLBC9030B-433 DATALOGICBase Station Charger for PM9x00
DLBC9180B-433 DATALOGICBC9180 Base Station Dual Charger 433 MHz Ethernet
CAB-DL479 DATALOGICCAB-479 RS232 9P Female coiled 7.6m
DLPS9000QC DATALOGICMC-9000 Multi-Charger 4 Slots (no Power Supply)
AD-DL12VR DATALOGICPower supply 12v DC for Datalogic with Power cord
DLHLS8000 DATALOGICPwrScan 8x Universal Holster
CAB-DL433 DATALOGICRS232 DB9F cable1.8m Power inlet & Pin 9
CAB-DL438 DATALOGICUSB A Straight cable for PM8300 9500
CAB-DL436 DATALOGICWedge PS 2 Straight Cable

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
IT3820iIT-3820i Wireless Industrial Linear imager scanner

Parts documents

Parts layout details

Specifications
Scan Engine
Laser
Light Source
Aiming: 630 - 680 VLD activated by double click trigger
Scan Pattern
Single Line
Scan Rate
PM9300-xx: 104 +/- 12 scans/sec
PM9300-ARxx: 35 +/- 5 scans/sec
Motion Tolerance
N/A
Contrast Ratio
25% Minimum reflective difference
Resolution
PD93x0: 0.076 mm / 3 mils
PD93x0AR: 0.190 mm / 7.5 mils
Depth of field
PM9300-xx code39:
5 mils - 1.5 to 28 cm
7.5 mils - 1.5 to 42 cm
10 mils - 2.0 to 50 cm
20 mils - 2.0 to 110 cm
40 mils - 2.0 to 160 cm

PM9300-ARxx:
7.5 mils - 9.0 to 50 cm
10 mils - 14 to 85 cm
15 mils - 15 to 155 cm
20 mils - 15 to 220 cm
40 mils - 20 to 340 cm
55 mils - 25 to 420 cm
Reflective
70 mils up to 9 m
100 mils up to 11.5 m
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
PM9300-xx: +/- 35°
PM9300-ARxx: +/- 10°
Pitch Angle
PM9300-xx: 40°
PM9300-ARxx: 60°
Skew Angle
+/- 65°
Ambient Light Immunity
Immume to light exposure in office/facilitie and direct exposure to sunlight
Symbologies supported
PM9300-xx: GS1 DataBar™ linear codes, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 128, EAN 128, Code 39, Code 39 Full ASCII, Code 39 CIP, Code 32, Codabar, Interleaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, Code 11, MSI, Plessey, Code 93, Follet 2/5, Code 4, Code 5, Datalogic 2 of 5, Codablock F
PM9300-xxARxx: GS1 DataBar™ linear codes, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code128, EAN 128, Code 39, Code 39 Full ASCII, Code32, Codabar, Interleaved 2 of 5, Standard 2 of 5, MSI, Code 93
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Indicators/Controls
PM9300: No Display, 1 x Scan Key
PM9300-D: Display 4 Lines x 16 Collumns, 1 Scan Key & 3 Key Keypad
PM9300-DK: Display 4 Lines x 16 Collumns, 1 Scan Key & 16 Key Keypad
Beepers
Datalogic’s 3GL™ (Three Green Lights) technology and loud beeper for good read feedback
Datalogic ‘Green Spot’ on the Code
Dual good read LED's
Communication Type
Datalogic Star Cordless System™
Communication Technology
433.92 Mhz Radio
Effective radiated power: < 10mW
Range (open Air): up to 50 m
Seamless roaming
Two way communications
Point to Point or Multi-point configuration
up to 16 Scanners to a base
Interfaces
to base BC9030-433:
USB: OEM, USB COM, USB HID Keyboard
RS232
KBW
Optional Ethernet
Supply Voltage
Battery: 2150 mAh Li-ion rechargeable
Charge time with external power supply: 4 Hours
Charge time with Host power: 10 Hours
Reads per full charge: 50,000+
Input Voltage for Charge/Communication Base: 10 -30 VDC
POT: 5 VDC +/-10%
Power Consumption
External Power Supply: max. 10W (charging)
POT: max. 500mA (charging)
Drop Specification
Designed to withstand 50 x 2M drops to concrete
Environmental Sealing
IP65
ESD Protection
20 kV
Operating Environment
-20° ~ 50°C, Relative Humidity up tp 95% none condensing
Storage Environment
-40° ~ 70°C, Relative Humidity up tp 95% none condensing
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use.
Complete list in Quick Reference guide
Complies to EU RoHS & China RoHS
Laser Classification: CDRH Class II, IEC 60825-1 Class 2
External Dimensions (WxDxH)
PM9300: 74 x 110 x 212 mm
Cradle: 95 x 240 x 108 mm
Weight
PM9300-xx: 405 g
PM9300-ARxx, PM9300-Dxx, PM9300-DKxx: 435 g
PM9300-DARxx: 465 g
Cradle: 380 g
